Home >> Chrysler >> 2004 >> Sebring Coupe V6-3.0L VIN H >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Manual Transmission/Transaxle >> Input Shaft

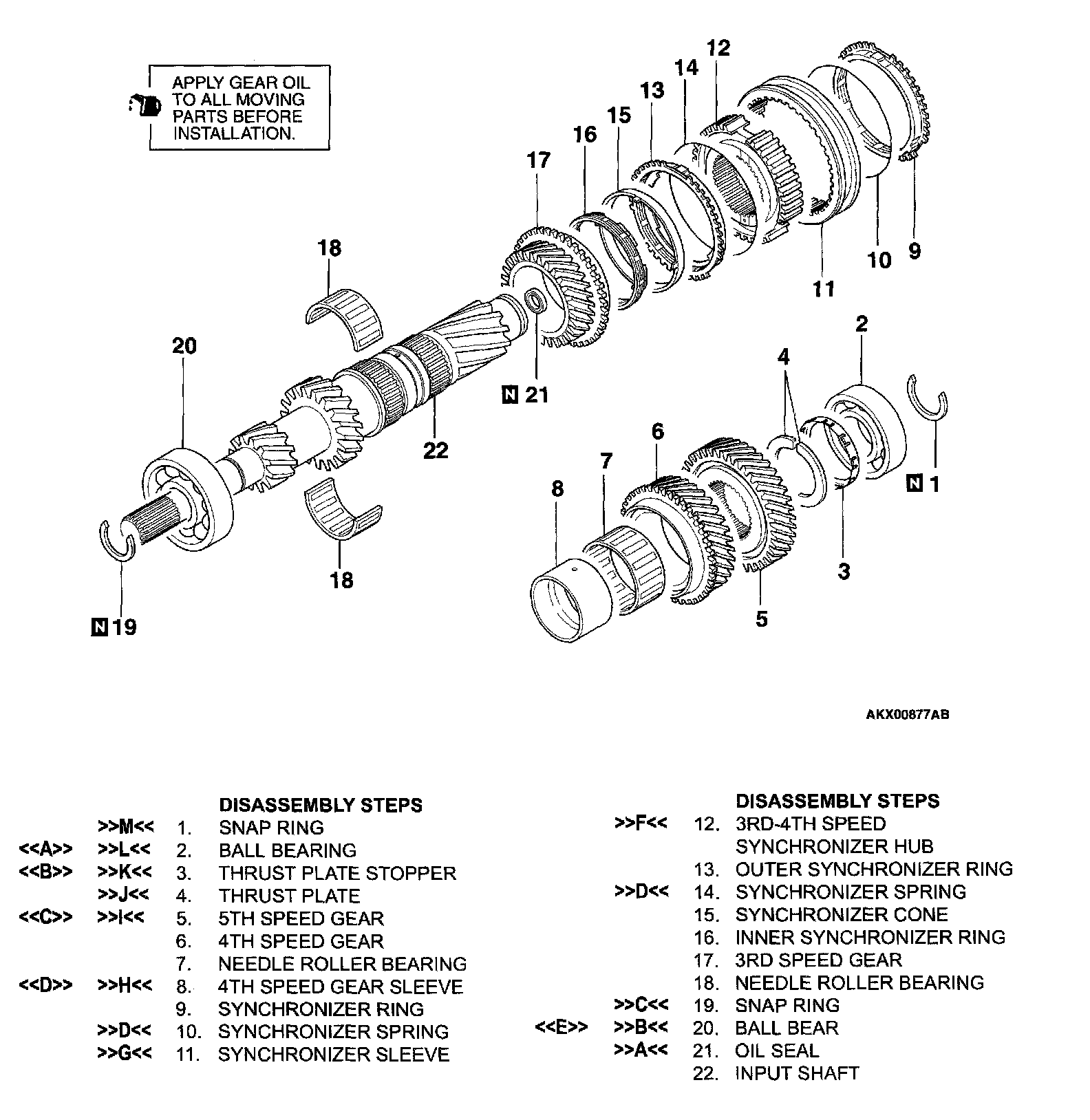

Input Shaft

INPUT SHAFT

DISASSEMBLY AND ASSEMBLY





- 2.4L





- 3.0L
