Home >> Chrysler >> 2004 >> Sebring Coupe L4-2.4L VIN G >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Intake Manifold >> Intake Manifold

Intake Manifold

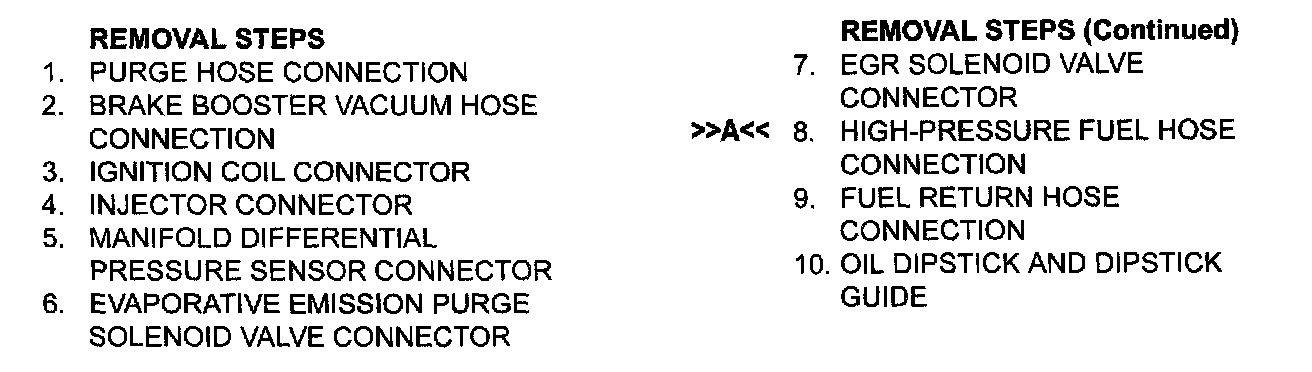

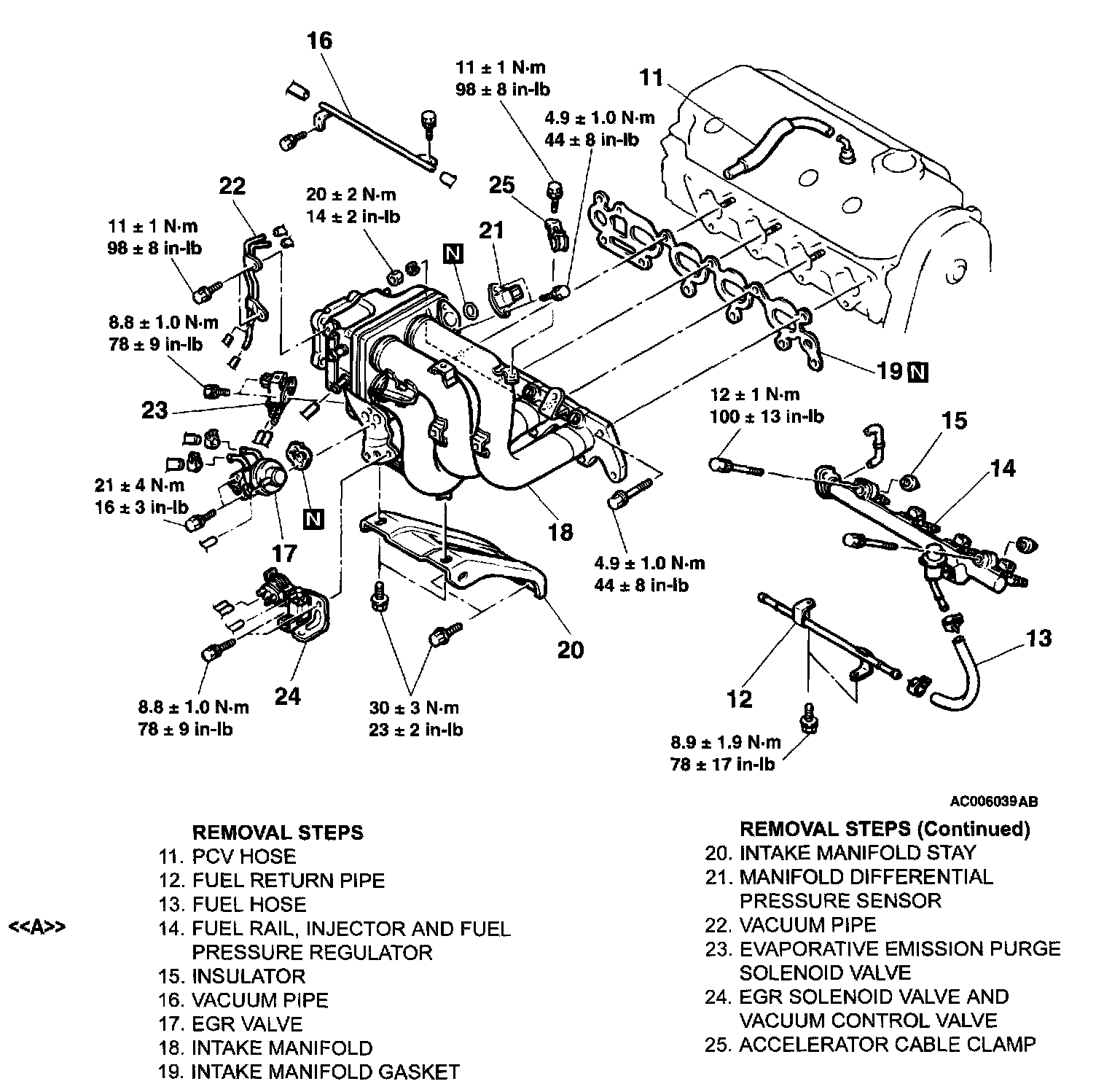

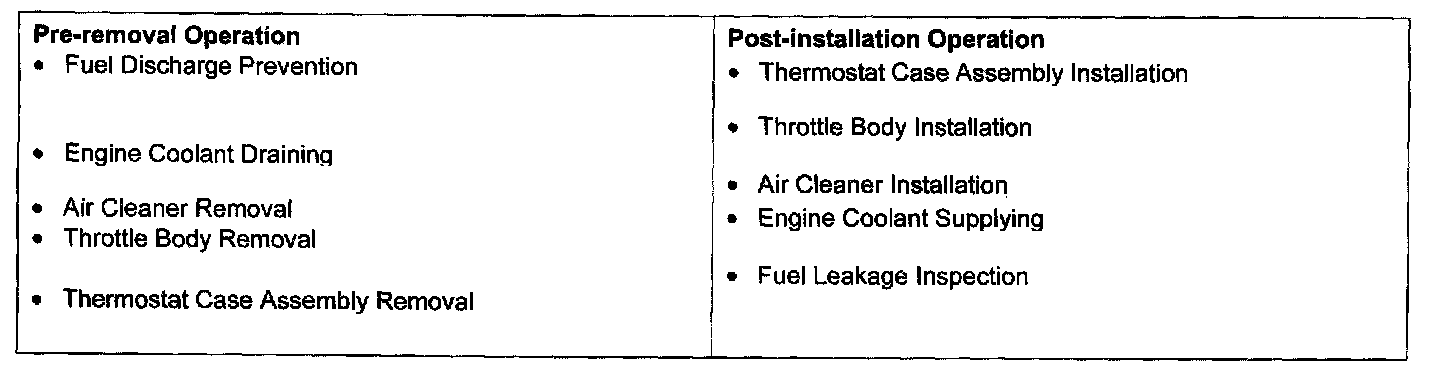

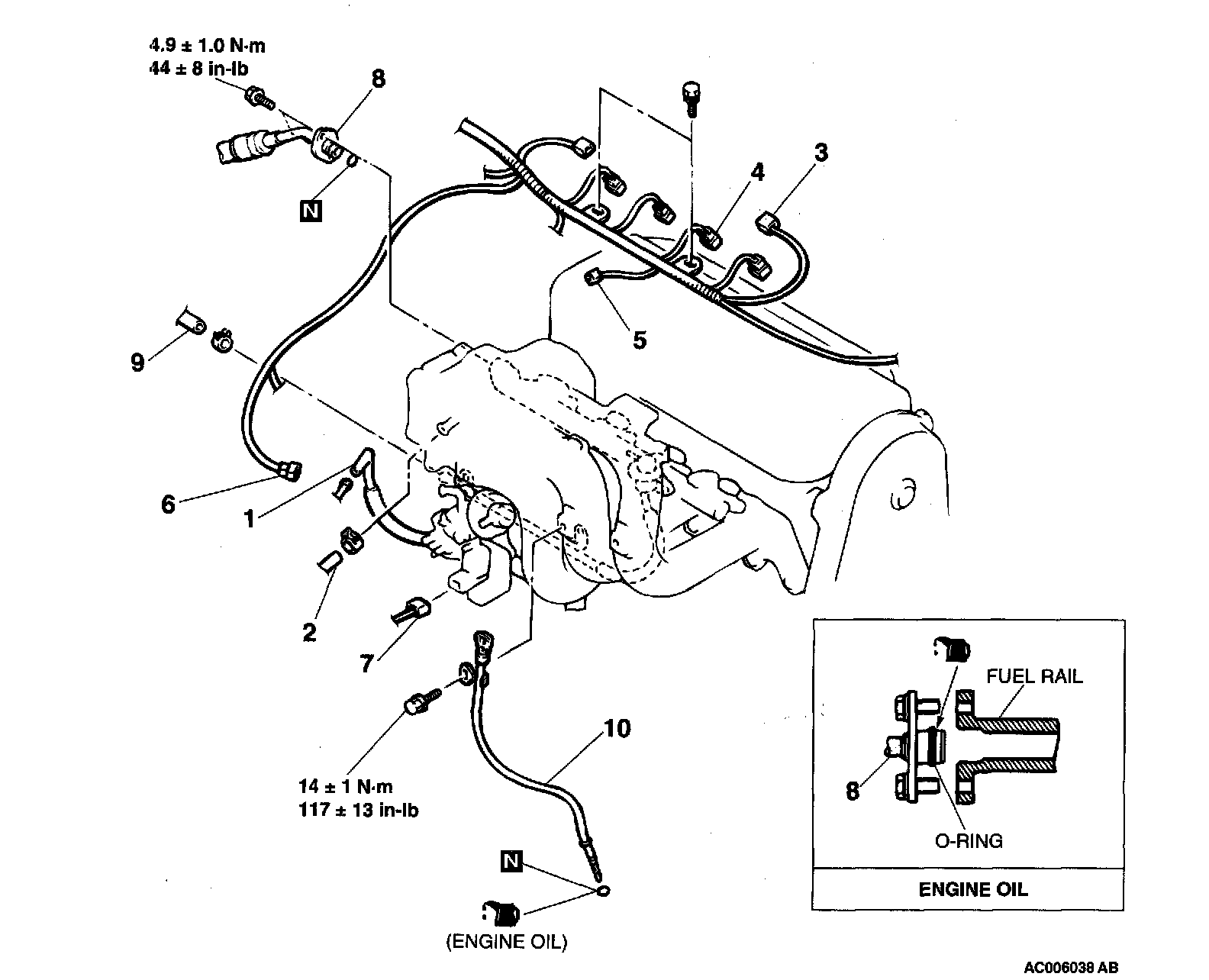

INTAKE MANIFOLD <2.4L>
