Imperial V8-318 5.2L VIN H 4-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Carburetor
Carburetor

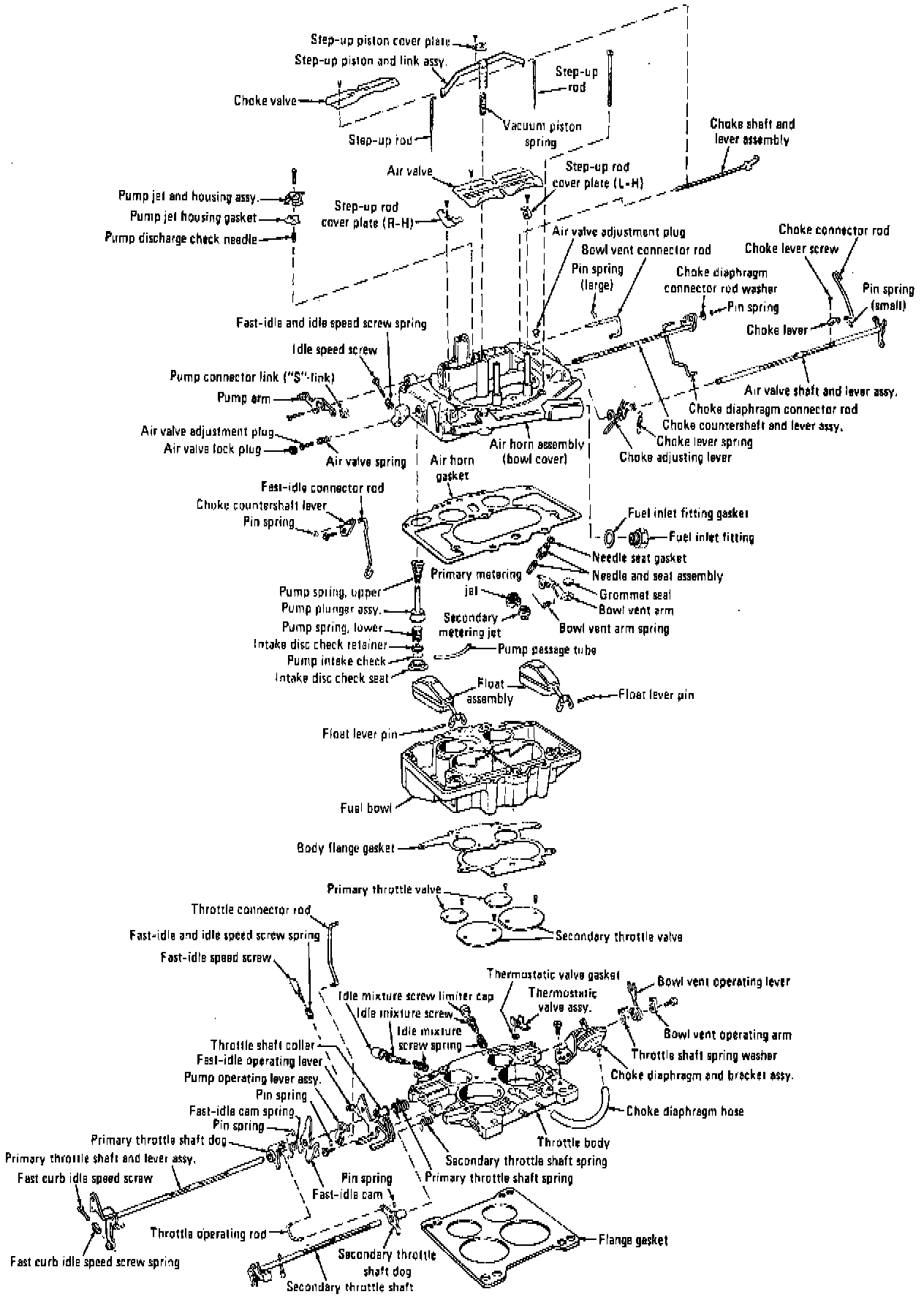

Fig 3 - Carburetor:
