Home >> Chrysler Truck >> 2009 >> PT Cruiser L4-2.4L >> Repair and Diagnosis >> Cruise Control >> Cruise Control Servo >> Diagrams

Cruise Control Servo: Diagrams

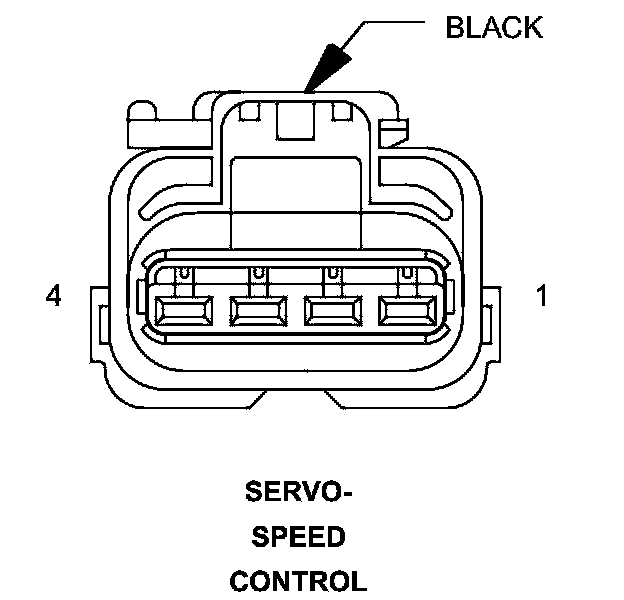

Connector - (HEADLAMP AND DASH) 4 WAY




SERVO-SPEED CONTROL - (HEADLAMP AND DASH) 4 WAY
