Chrysler Truck
>>
2004
>>
PT Cruiser L4-2.4L VIN B
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Keyless Entry
>>
Keyless Entry Module
>>
Locations
>>
Connector Locations
Connector Locations

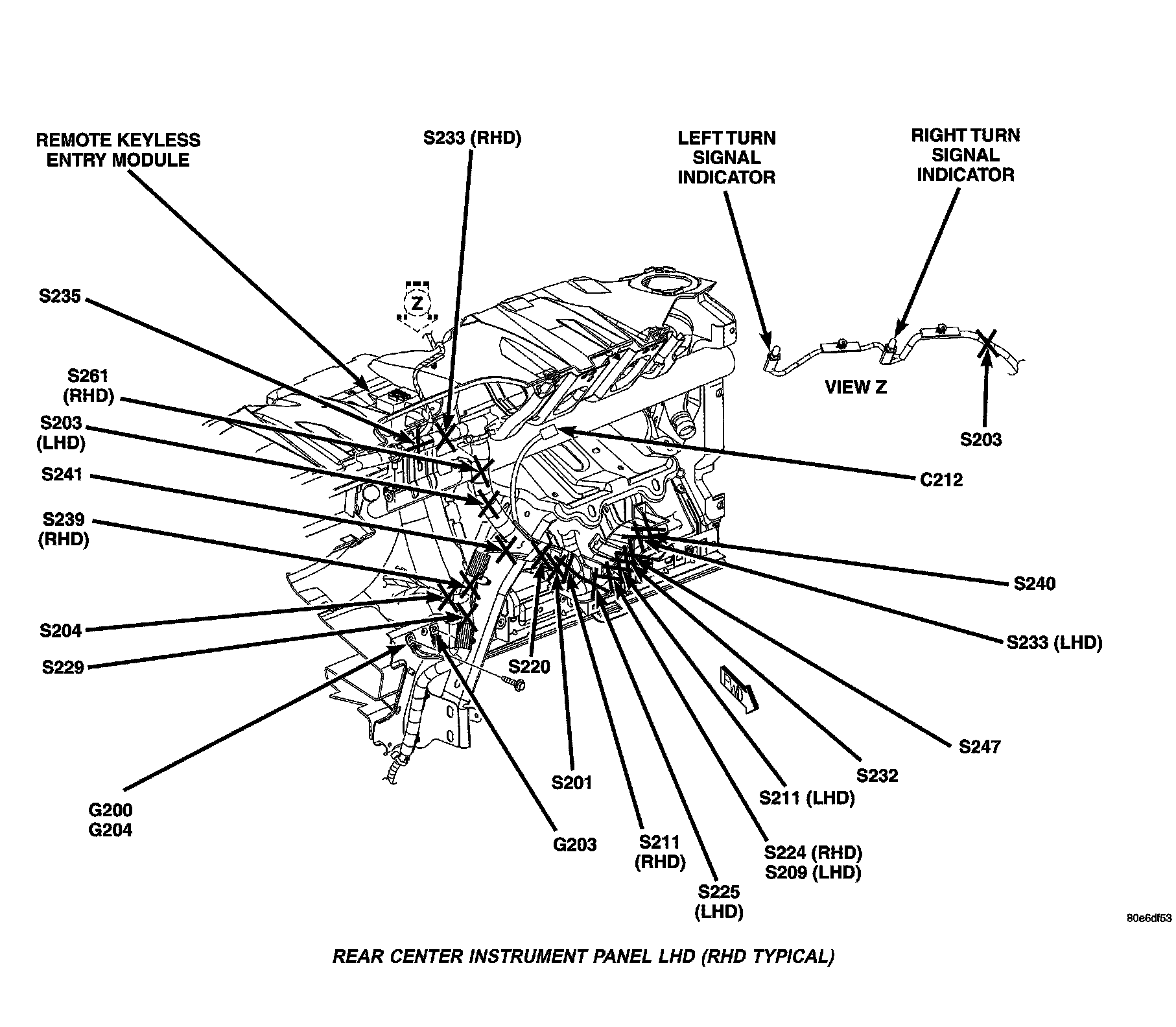

Rear Centre Instrument Panel LHD (RHD Typical):
