PT Cruiser L4-2.4L VIN B
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Axle Shaft Assembly
Axle Shaft Assembly

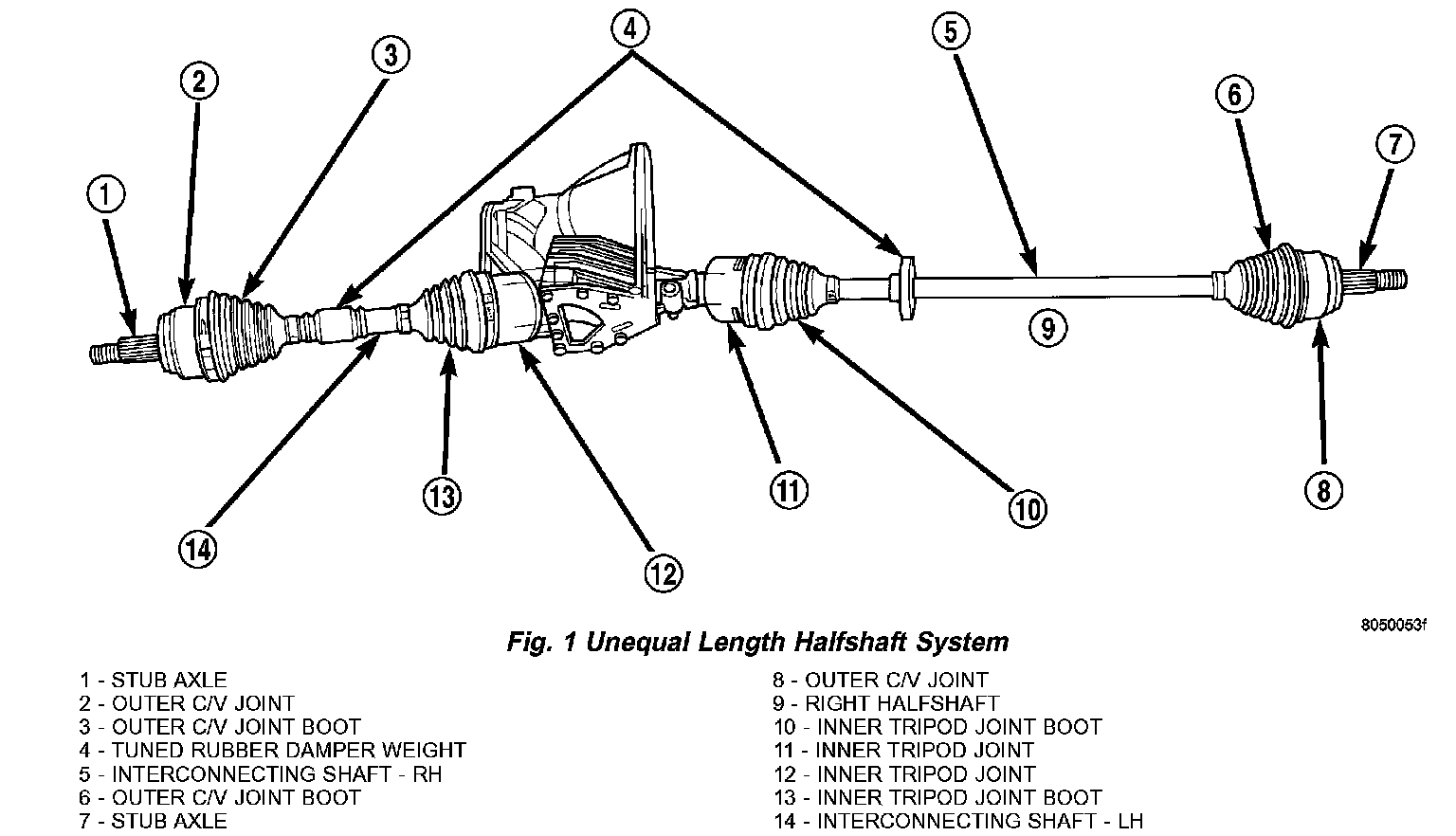

HALF SHAFT:

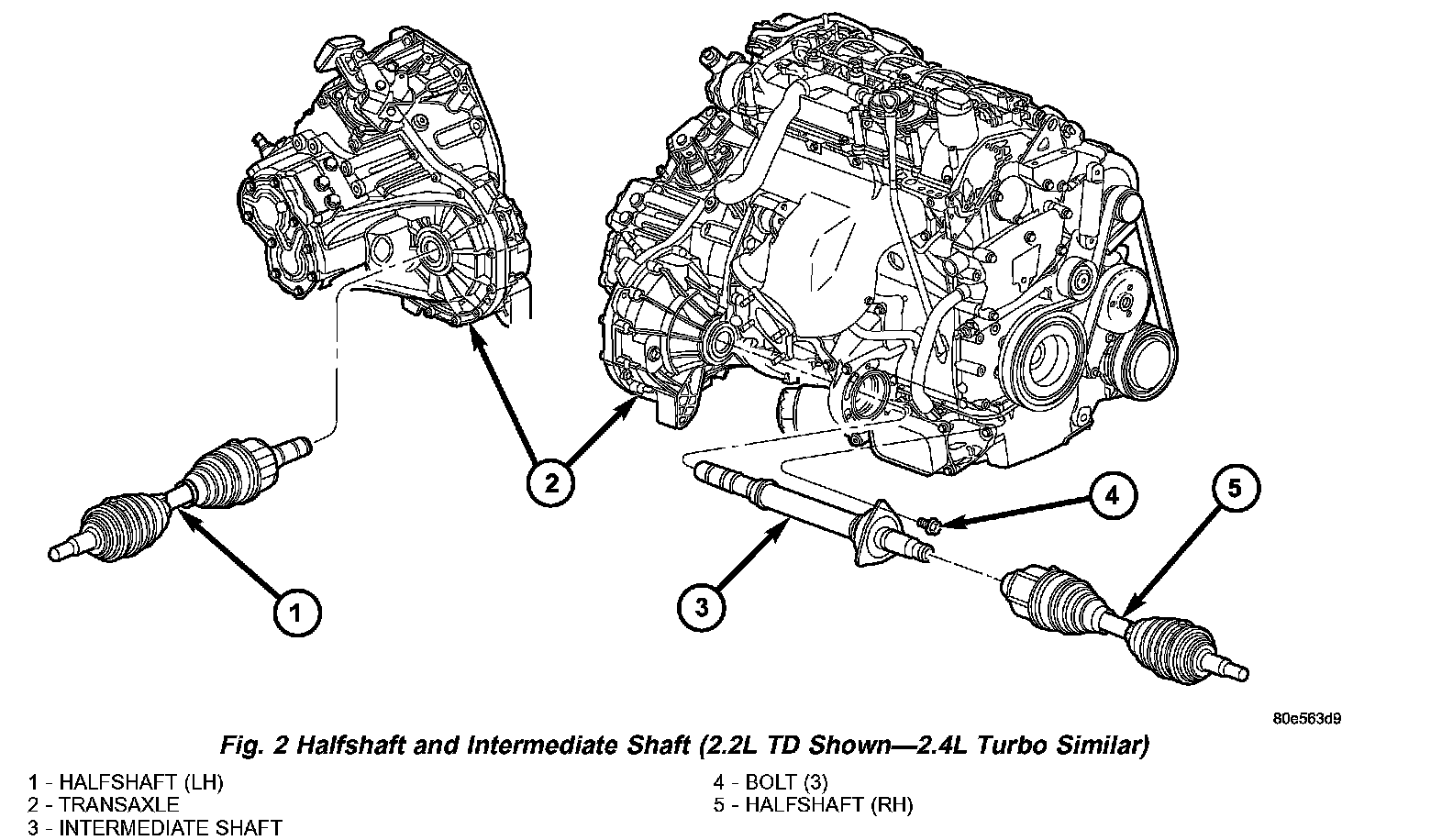

Half Shaft:
