Chrysler Truck
>>
2001
>>
Voyager L4-2.4L VIN B
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Main Relay (Computer/Fuel System)
Main Relay (Computer/Fuel System)

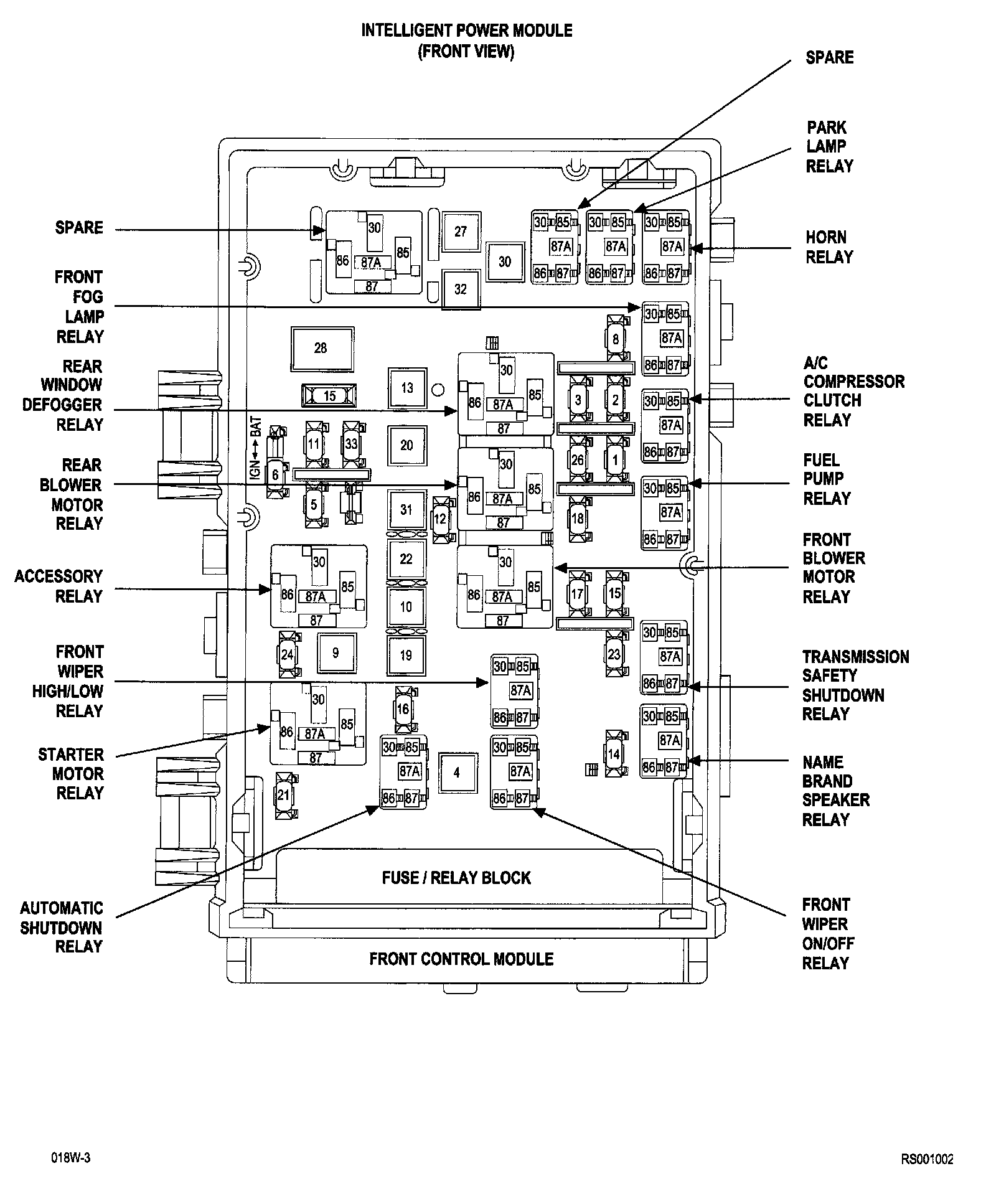

Intelligent Power Module (Front View):
Transmission Safety Shutdown Relay:
