Home >> Chevy Truck >> 2006 >> SSR V8-6.0L VIN H >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Knock Sensor >> Locations

Knock Sensor: Locations

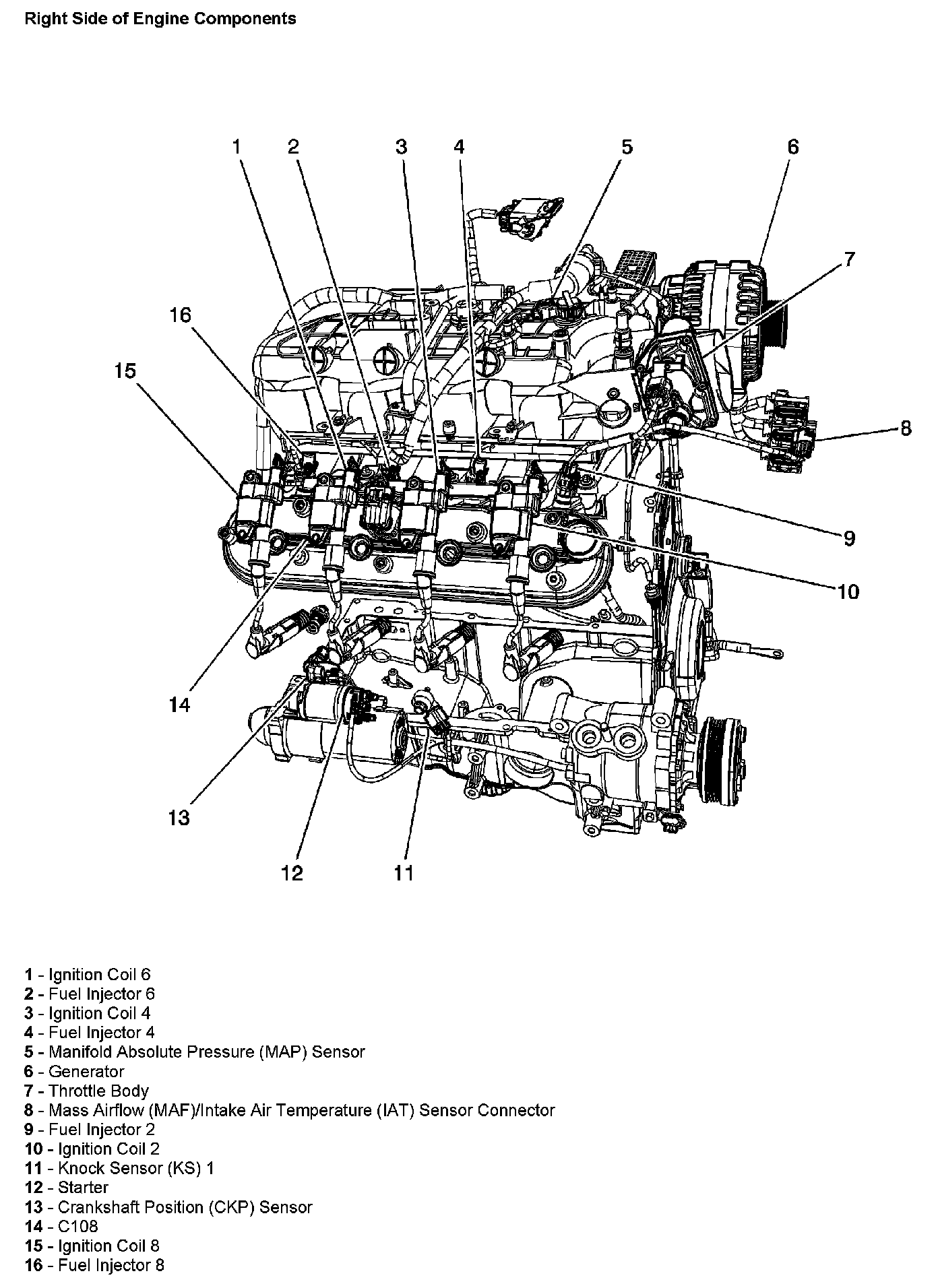

Right Side Of Engine Components:

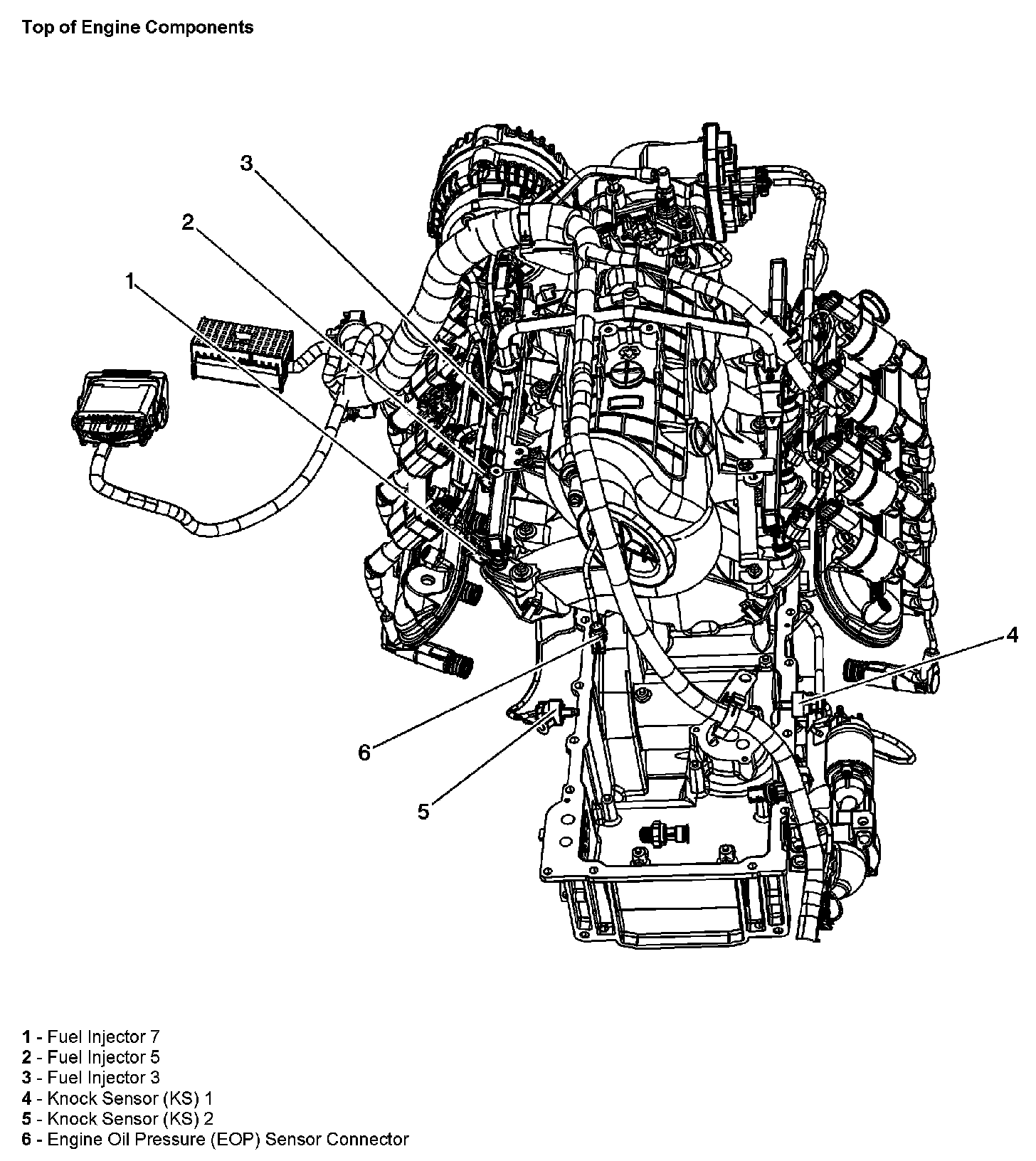

Top Of Engine Components:
