Home
>>
Chevy Truck
>>
2006
>>
SSR V8-6.0L VIN H
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Air Flow Meter/Sensor
>>
Diagrams
>>
Connector Views
Connector Views

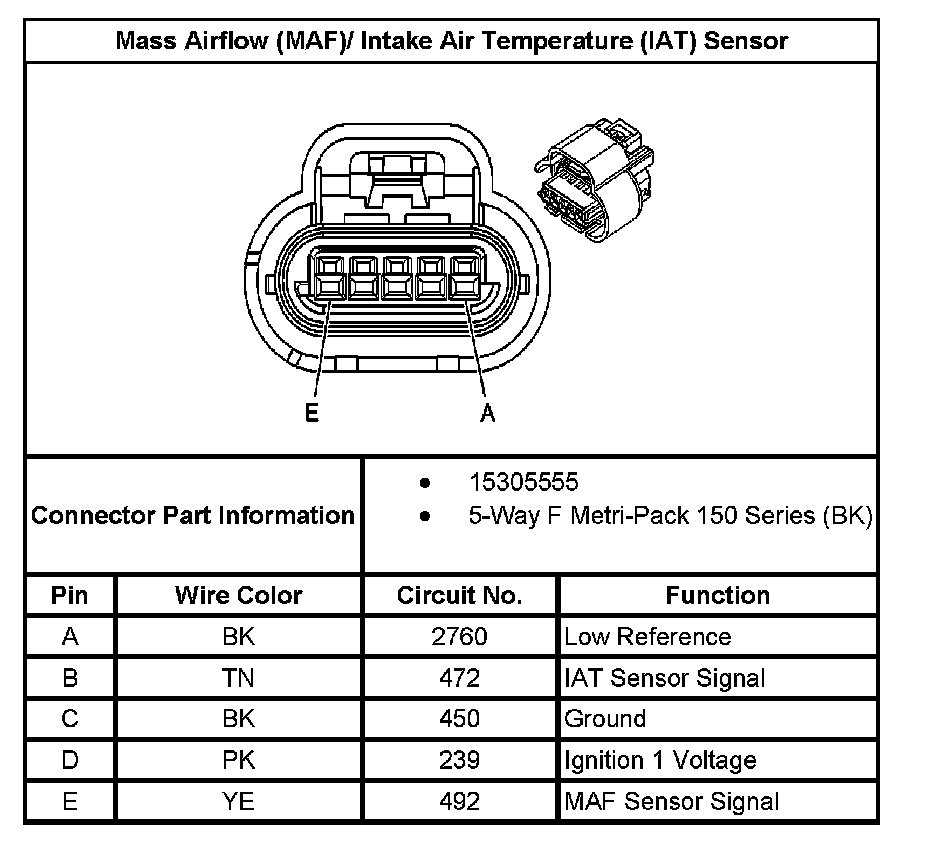

Mass Airflow (MAF)/ Intake Air Temperature (IAT) Sensor:
