Control Module HVAC
Control Module HVAC

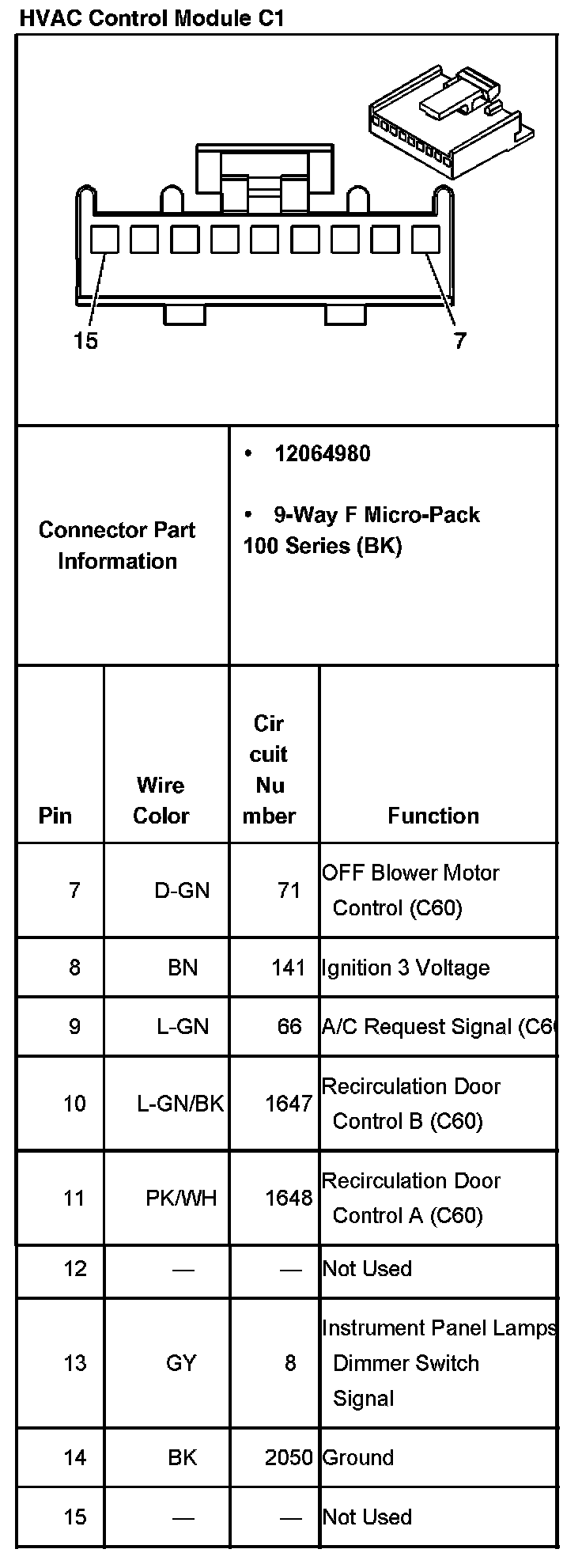

HVAC Control Module C1:

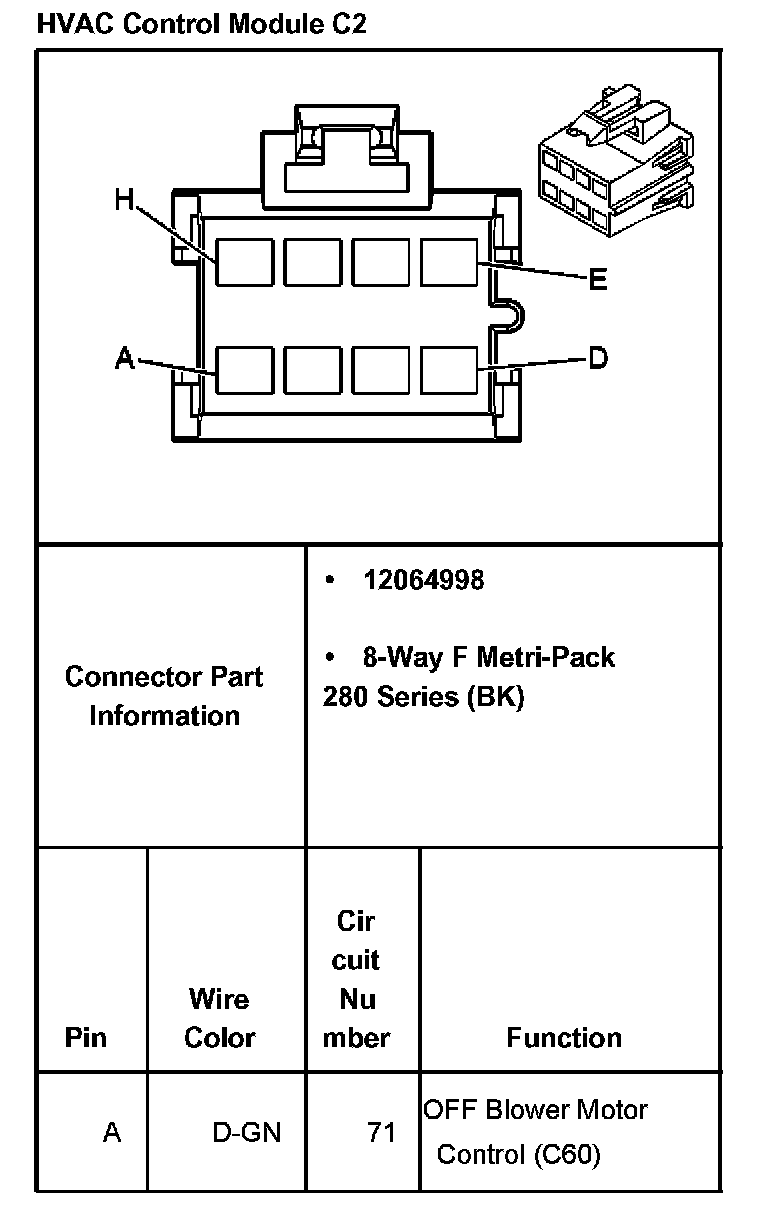

HVAC Control Module C2, Part 1:

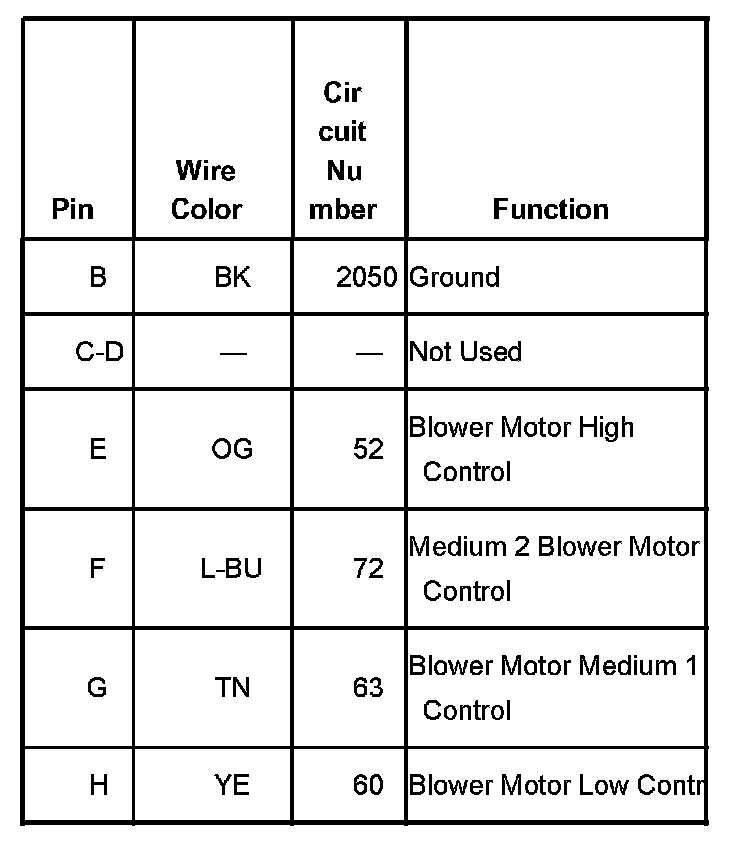

HVAC Control Module C2, Part 2:
