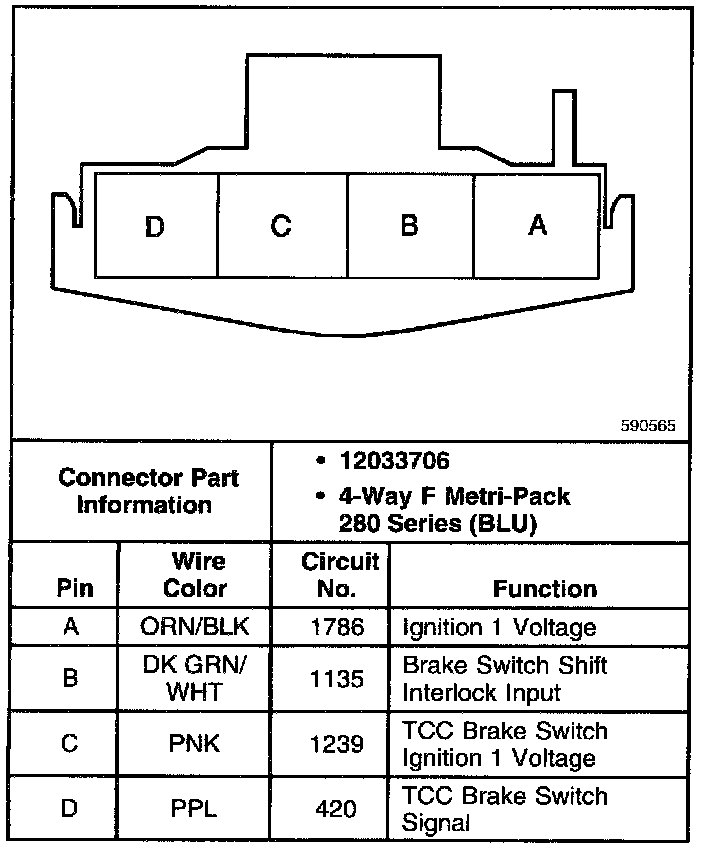

Shift Interlock/TCC Brake Switch Connector,Harness Side
Shift Interlock/TCC Brake Switch Connector,Harness Side
