Combination Switch
>>
Interior Lamp and Multi-Function Switch Assembly C1
Interior Lamp and Multi-Function Switch Assembly C1

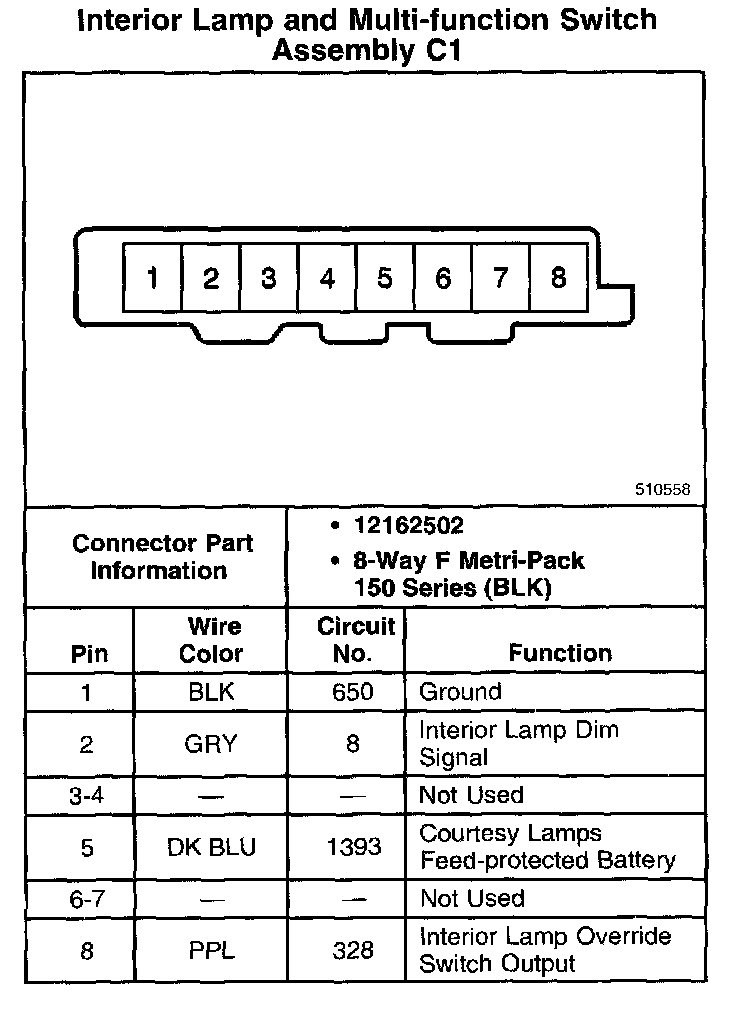

Interior Lamp and Multi-function Switch Assembly C1:
