Chevy Truck
>>
2001
>>
Venture V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
Transmission Temperature Sensor/Switch, A/T
>>
Transmission Range Switch C1

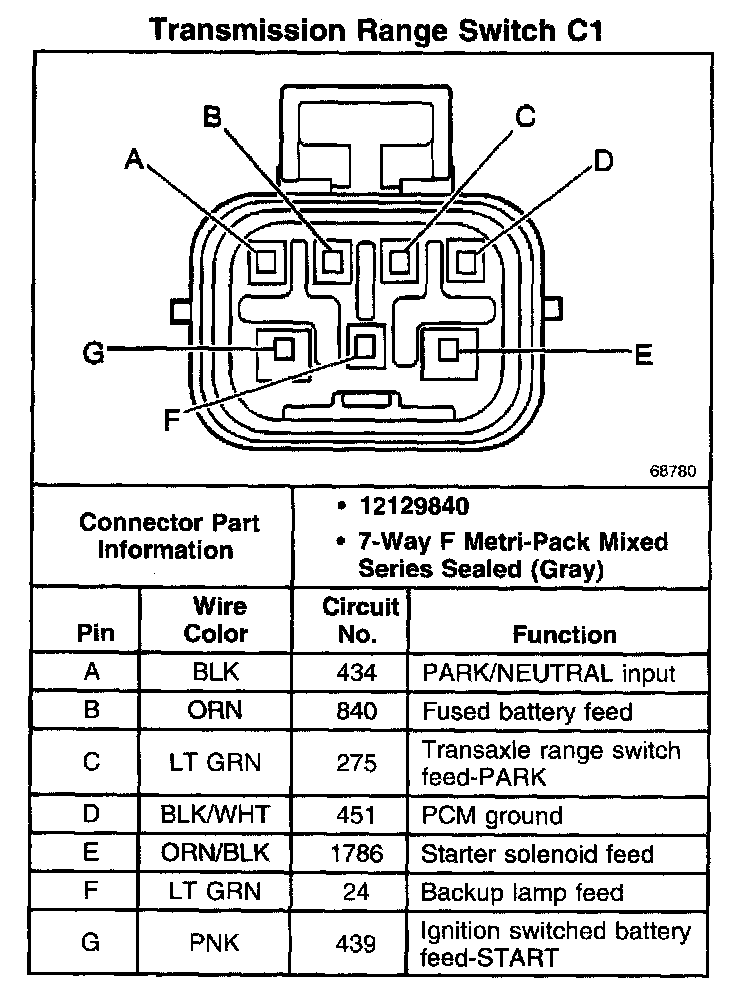

Transmission Range Switch C1
Transmission Range Switch C1:
