Home
>>
Chevy Truck
>>
2001
>>
Tracker 2WD V6-2.5L VIN 4
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Oxygen Sensor
>>
Diagrams
>>
Connector Views
>>
Bank 1 Sensor 2
Bank 1 Sensor 2

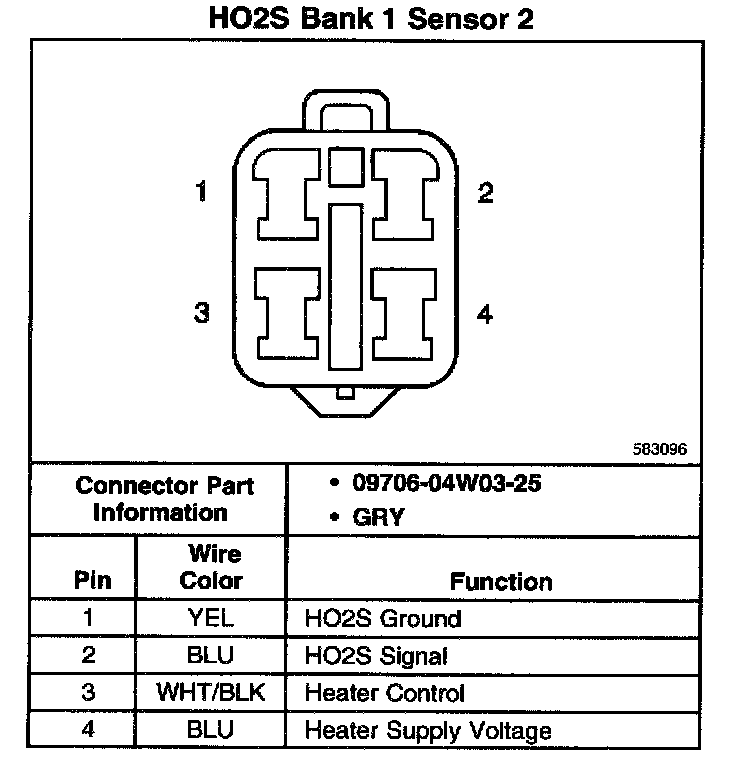

HO2S Bank 1 Sensor 2:
