Chevy Truck
>>
2001
>>
Express 3/4 Ton Van V8-6.5L DSL Turbo VIN F
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Powertrain Management
>>
Relays and Modules - Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>
Connector Views
>>

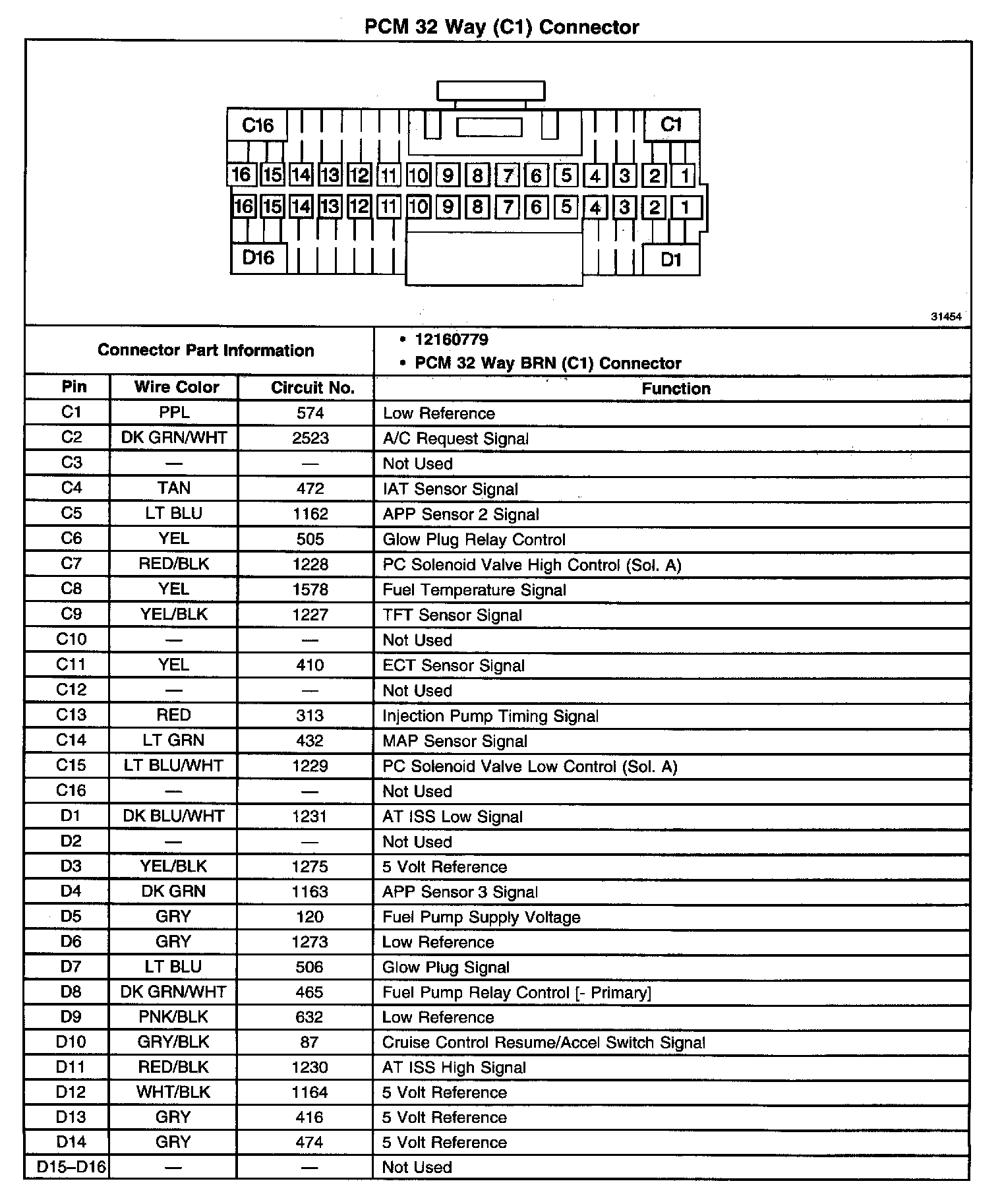

PCM 32 Way (C1) Connector
PCM 32 Way (C1) Connector
PCM 32 Way (C1) Connector:
