Astro Van L AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Differential Assembly
>>
Front Drive Axle
Front Drive Axle

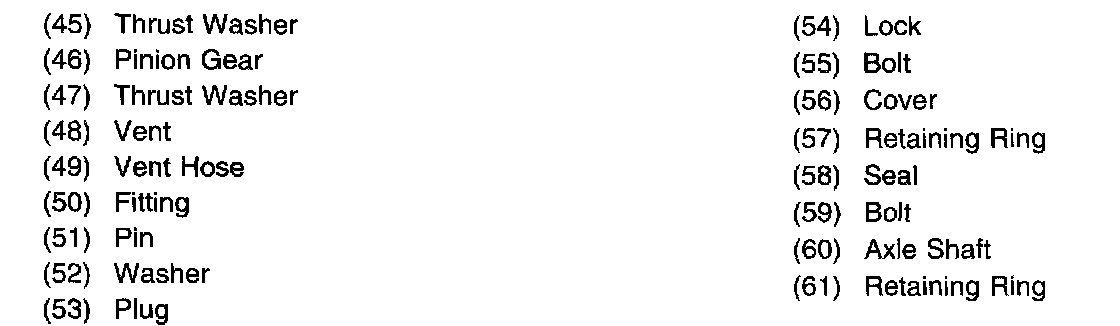

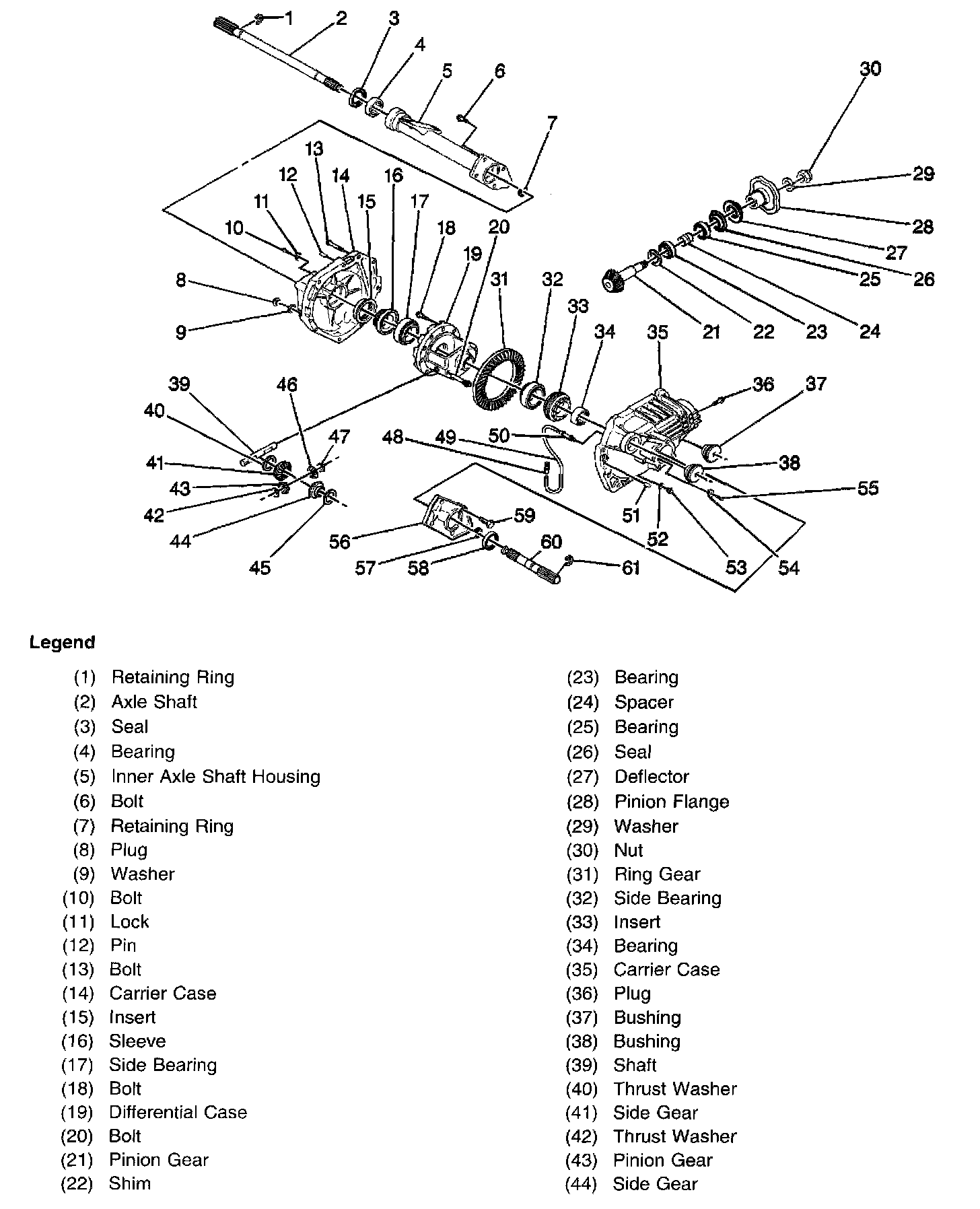

Front Drive Axle Disassembled Views
