Home >> Chevy Truck >> 1999 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Restraints and Safety Systems >> Air Bag Control Module >> Locations >> Component Locations >> Inflatable Restraint Sensing and Diagnostic Module (SDM)

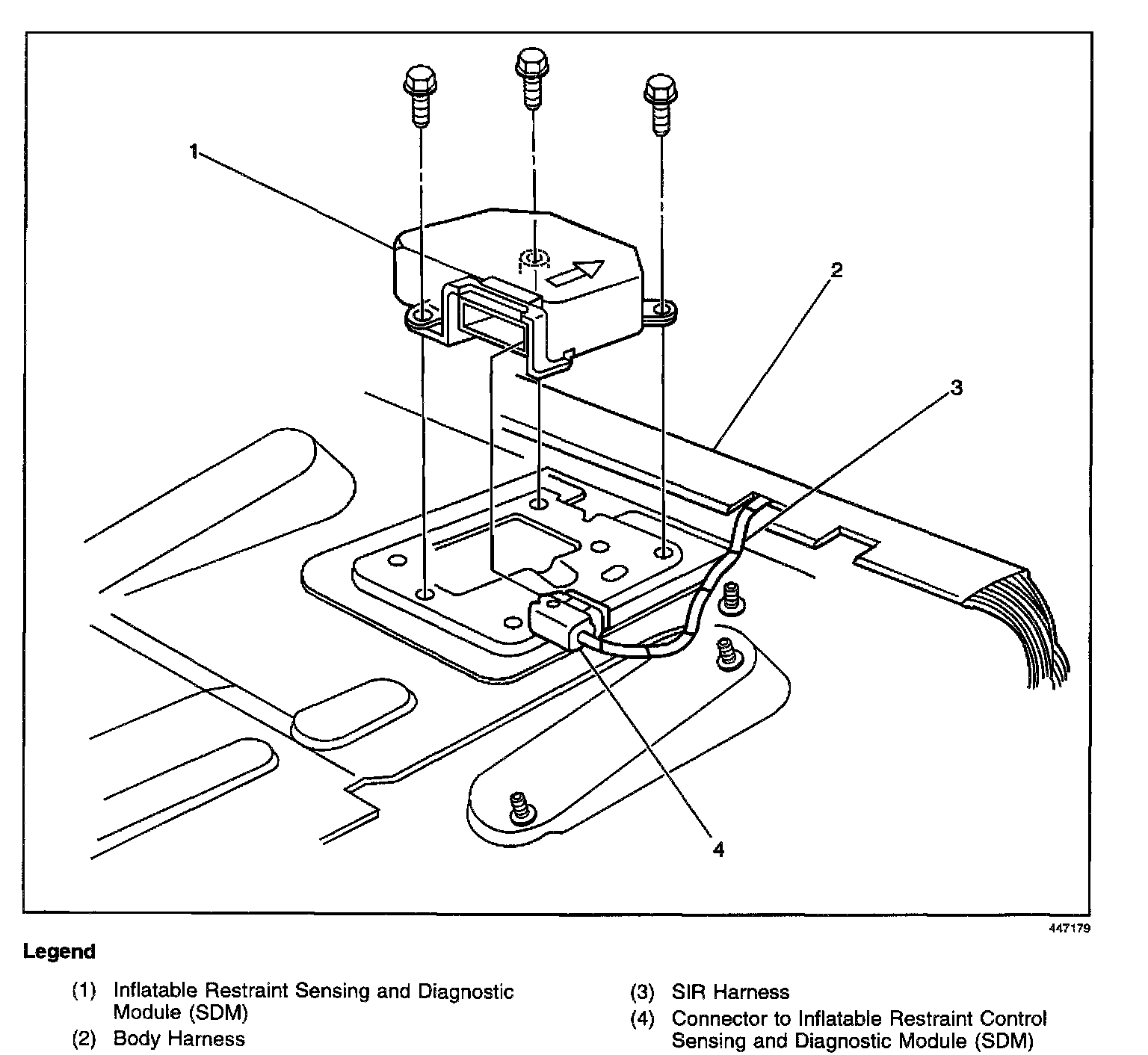

Inflatable Restraint Sensing and Diagnostic Module (SDM)








Below the right front seat
