Fog Lamp Switch and Relay and Park Lamp Relay
Fog Lamp Switch and Relay and Park Lamp Relay

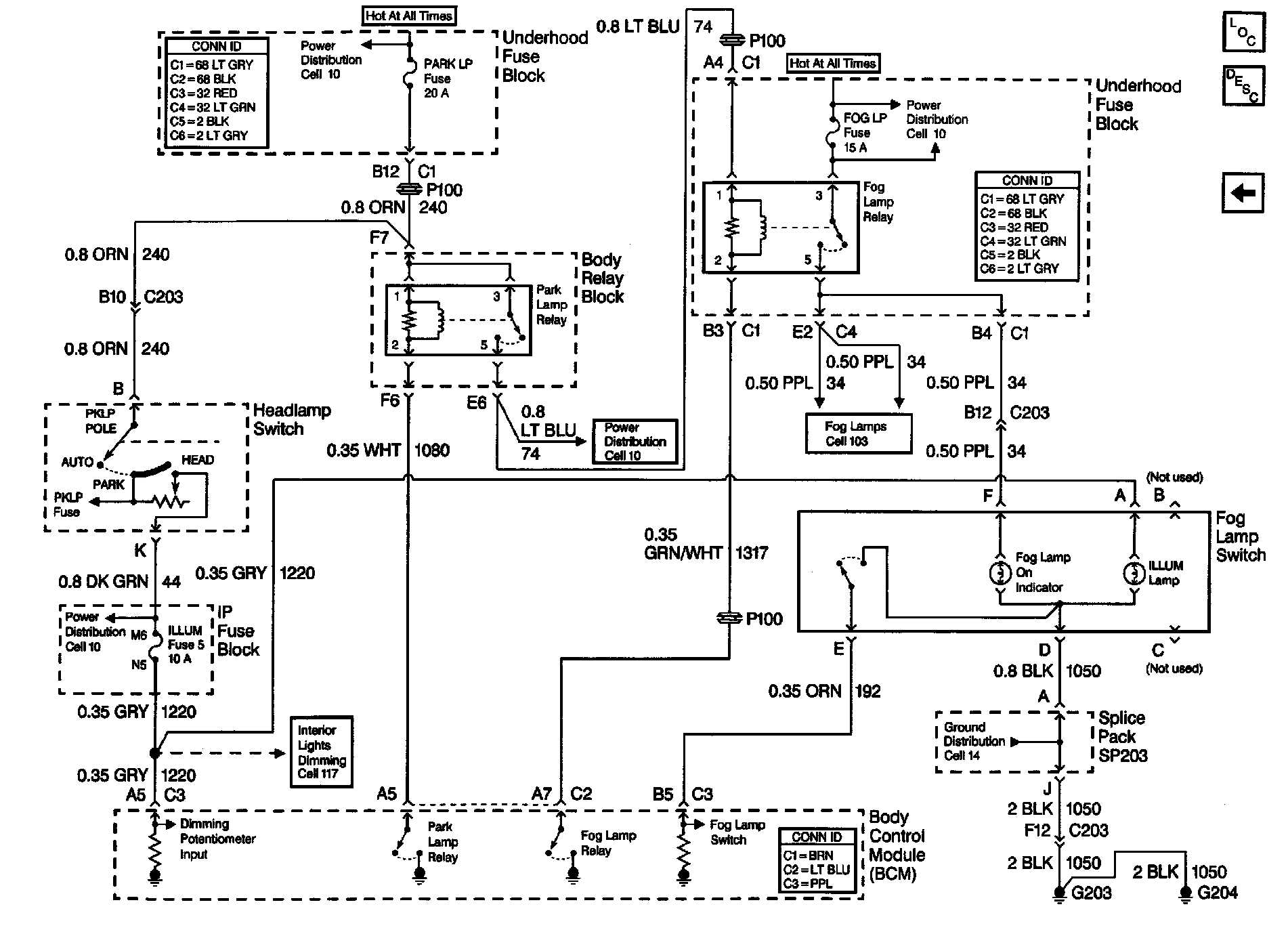

Body Control Module Schematics: Fog Lamp Switch And Relay And Park Lamp Relay:
