Home
>>
Chevy Truck
>>
1999
>>
S10/T10 P/U 2WD L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Control Module
>>
Seat Memory Module, Connector C1
Seat Memory Module, Connector C1

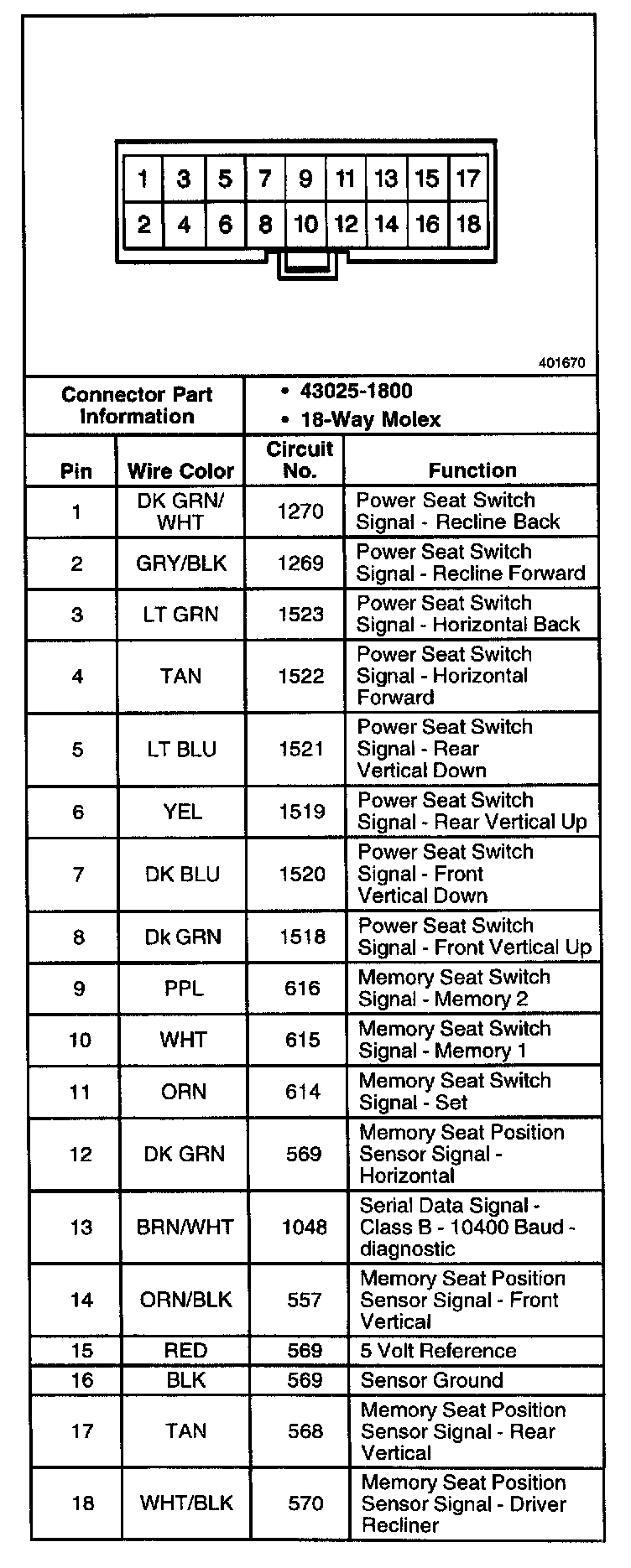

Seat Memory Module, Connector C1:
