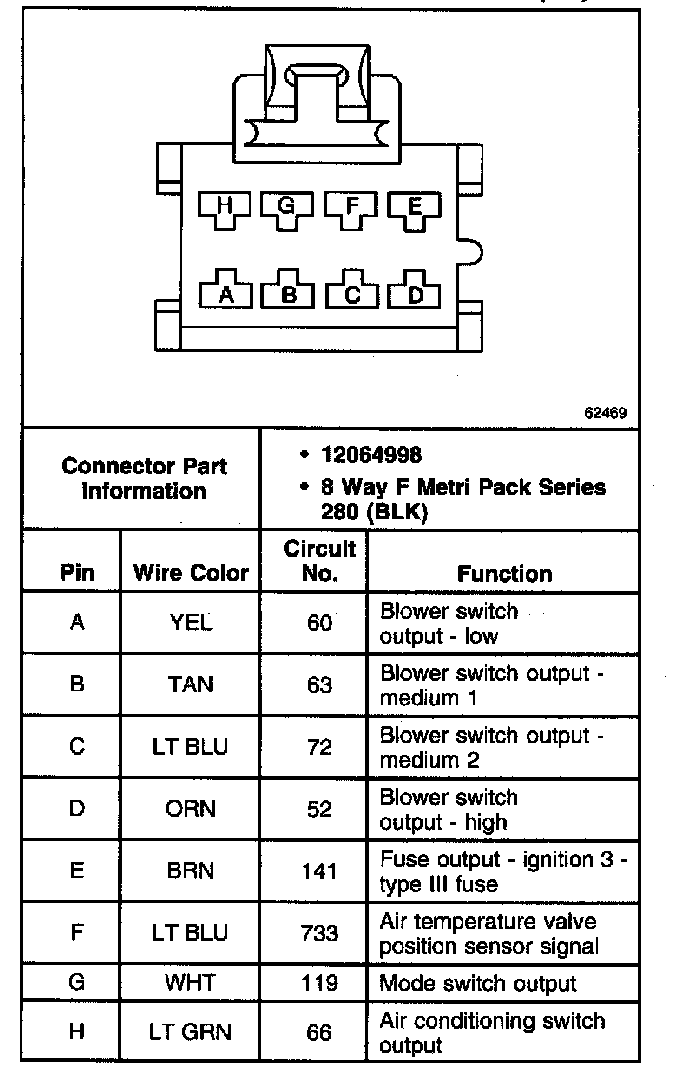

Heater Control Module Connector (C2)
Heater Control Module Connector (C2)
Heater Control Module Connector C2:
