Alternator
>>

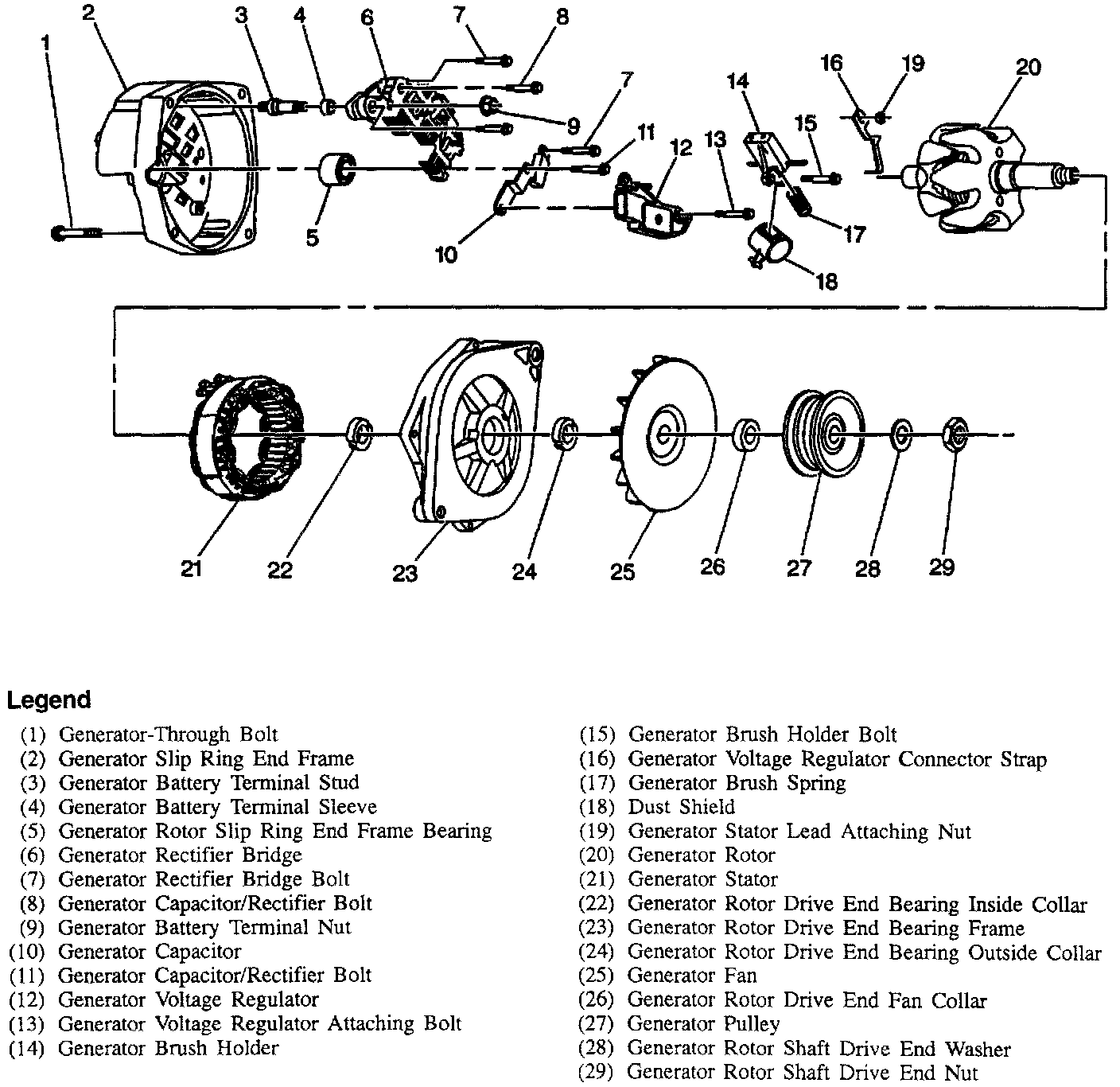

Delphi CS 144 (KG9) Generator
Delphi CS 144 (KG9) Generator
Delphi CS 144 (KG9) Generator:
