Home
>>
Chevy Truck
>>
1997
>>
Venture V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Keyless Entry
>>

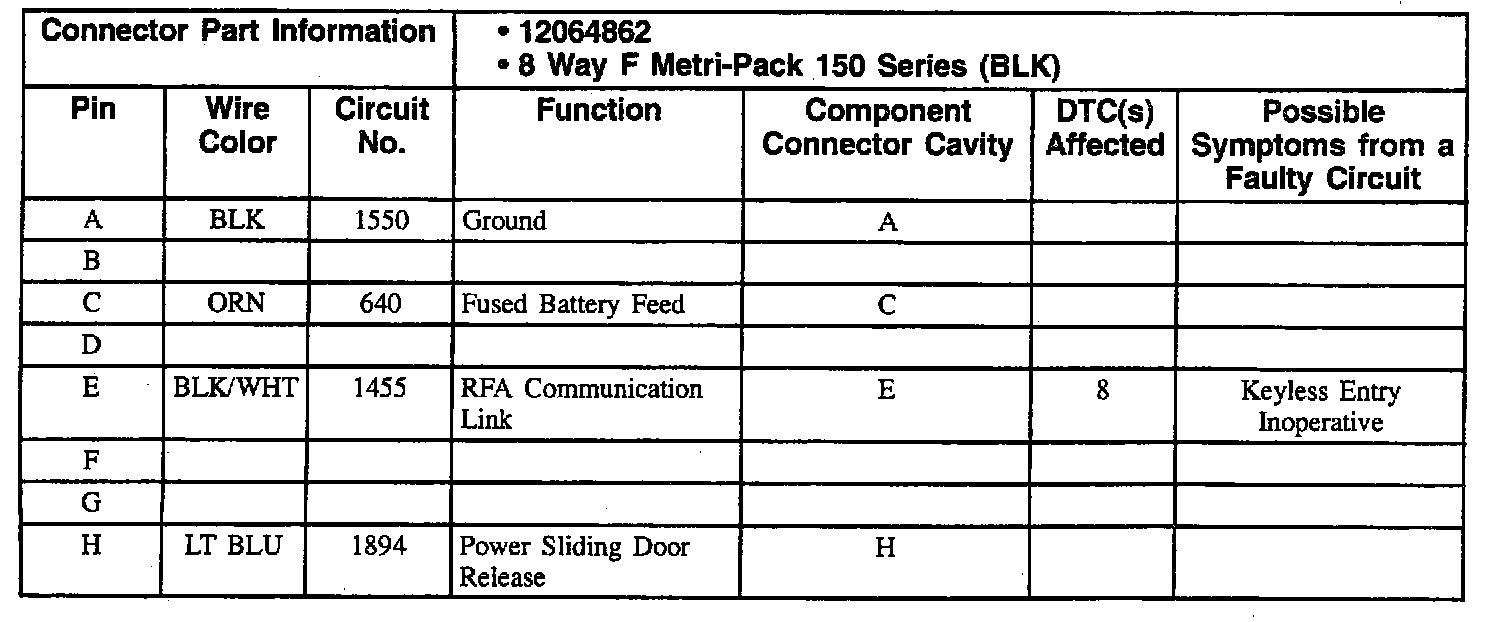

Keyless Entry Programming Connector
Keyless Entry Programming Connector
Remote Control Door Lock Receiver (RCDLR):
