Compressor/Pump Relay, Suspension Control
>>
Auto Level Control (ALC) Air Compressor
Auto Level Control (ALC) Air Compressor

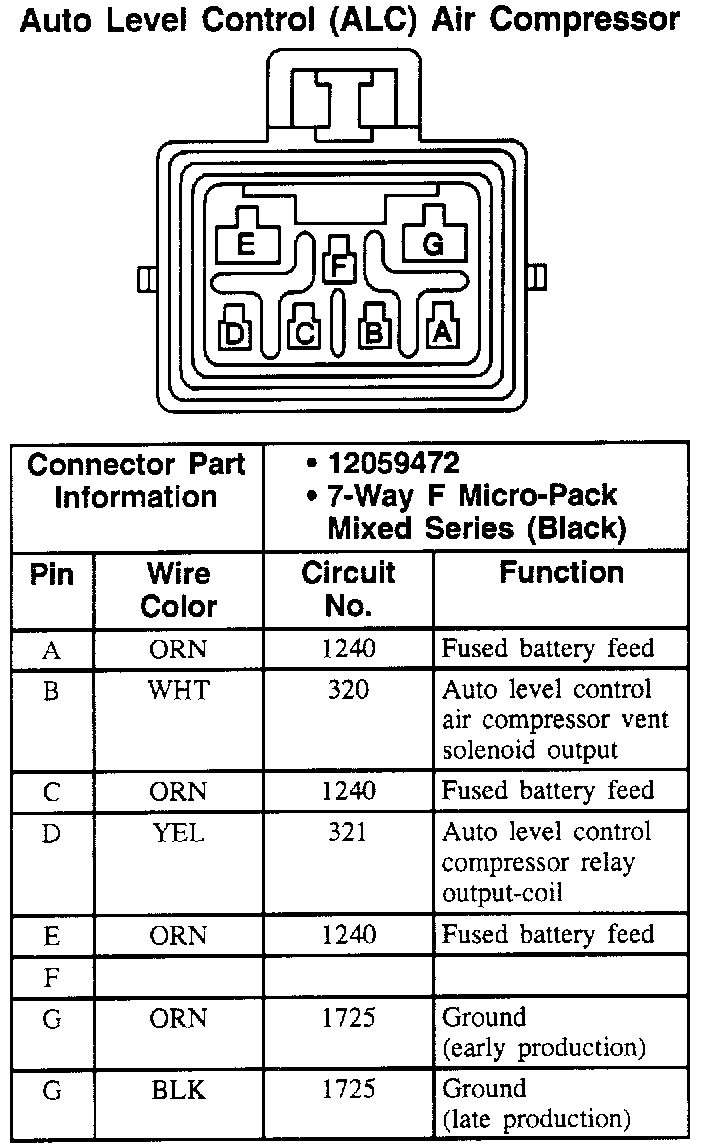

Auto Level Control (ALC) Air Compressor:
