Vehicle Speed Sensor
>>
Diagrams
>>
Connector Views
Connector Views

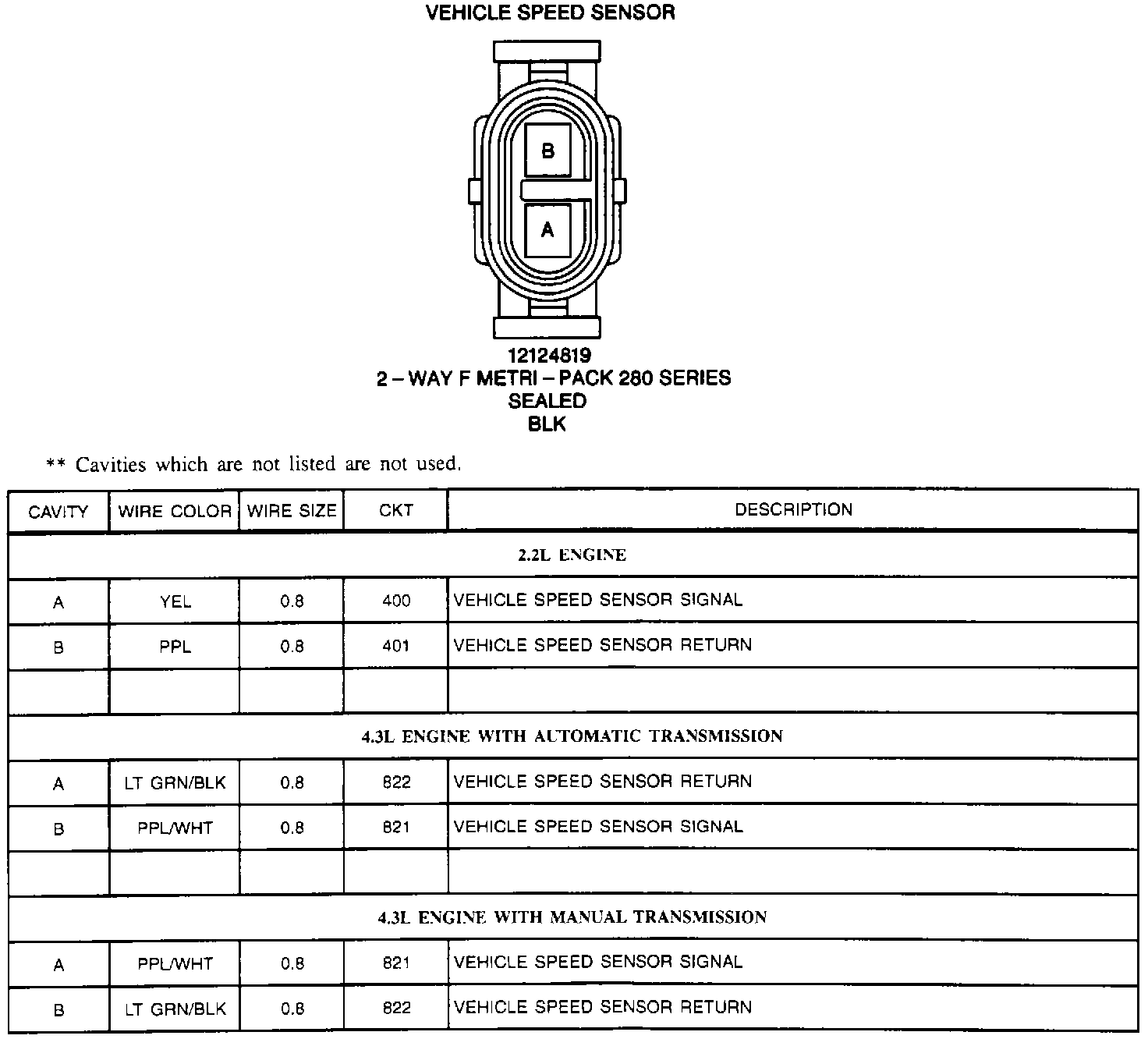

Vehicle Speed Sensor:

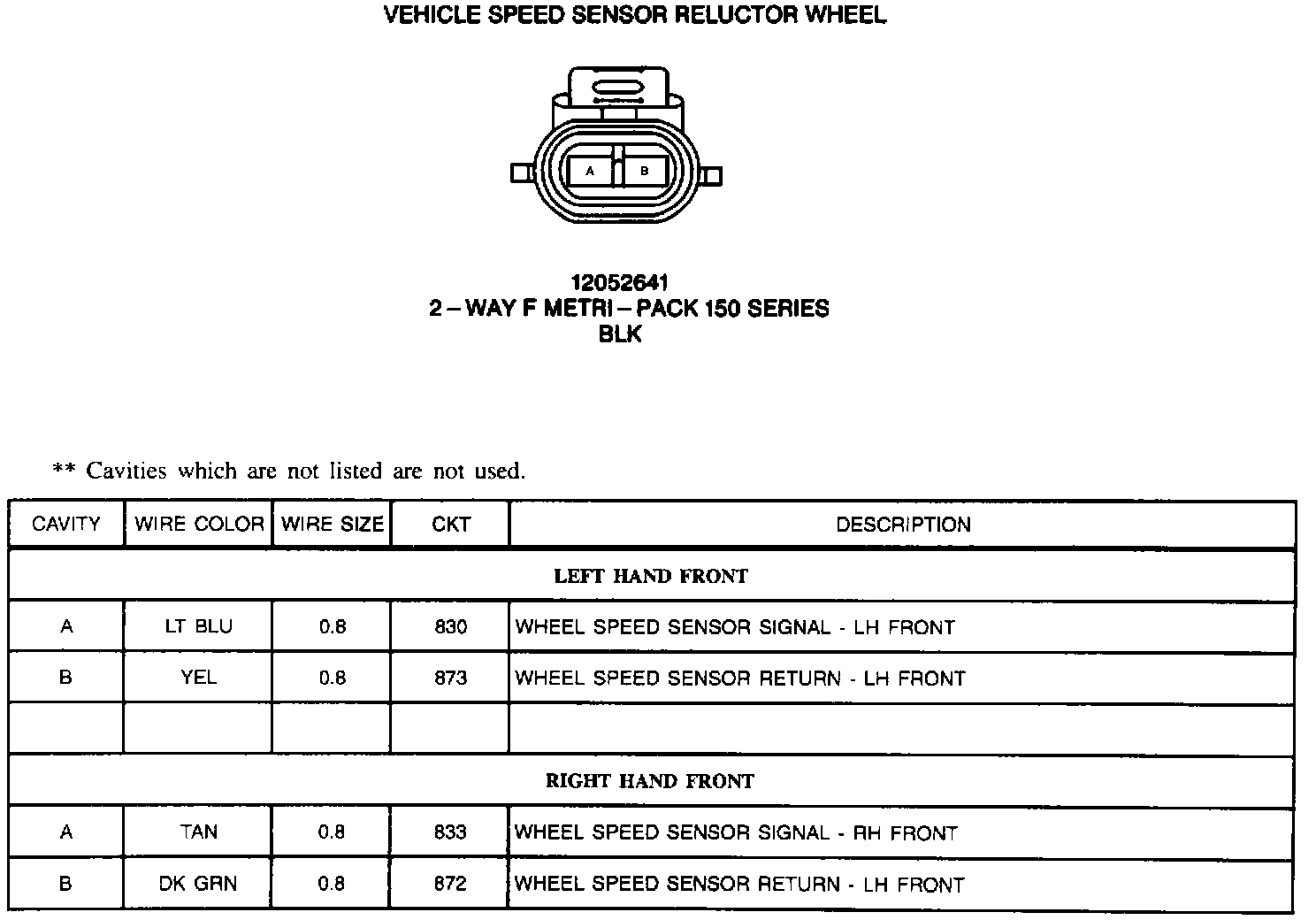

Vehicle Speed Sensor Reluctor Wheel:

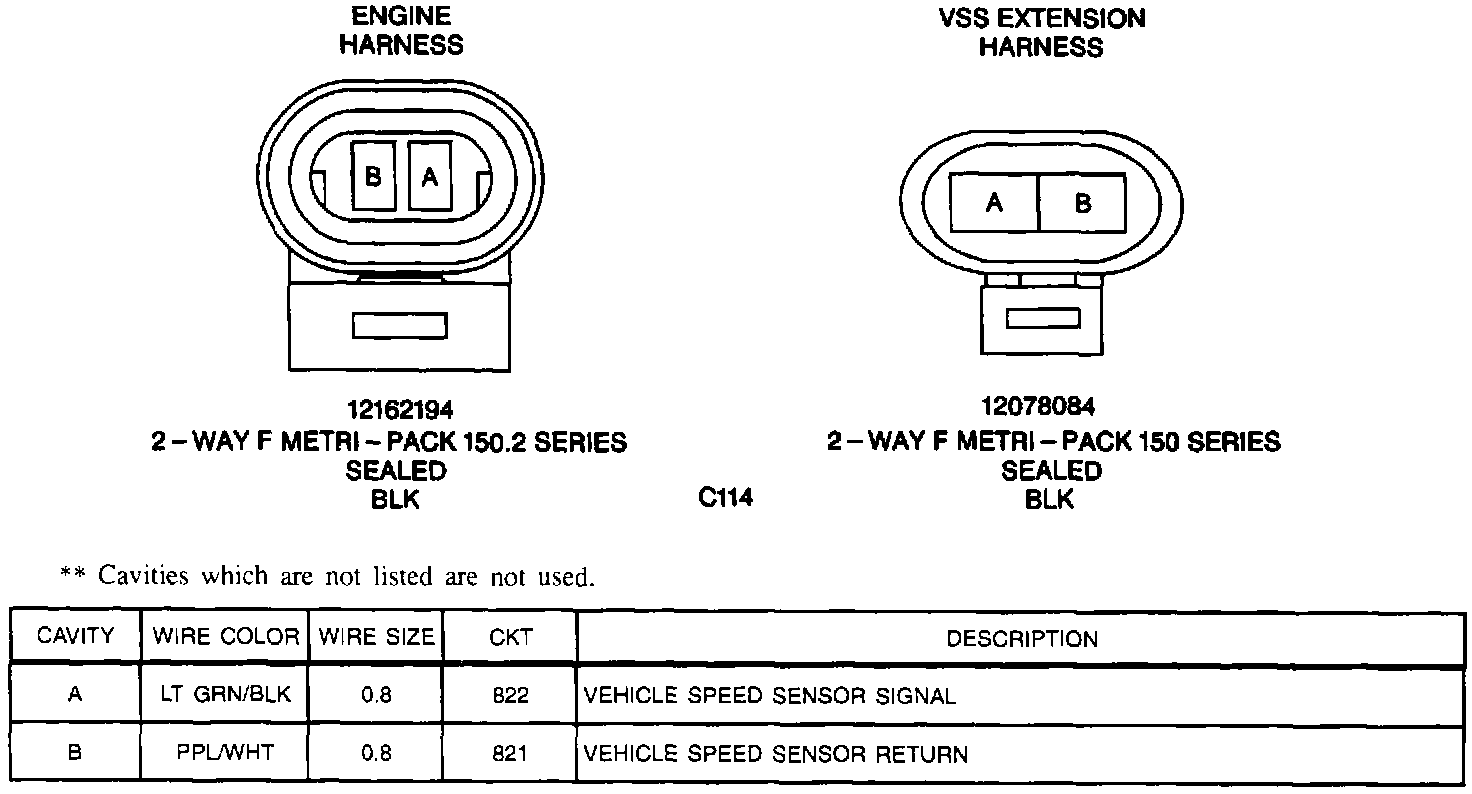

C114: Engine Harness:
