Home >> Chevy Truck >> 1996 >> S10/T10 P/U 2WD L4-2.2L VIN 4 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Throttle Position Sensor >> Locations

Throttle Position Sensor: Locations

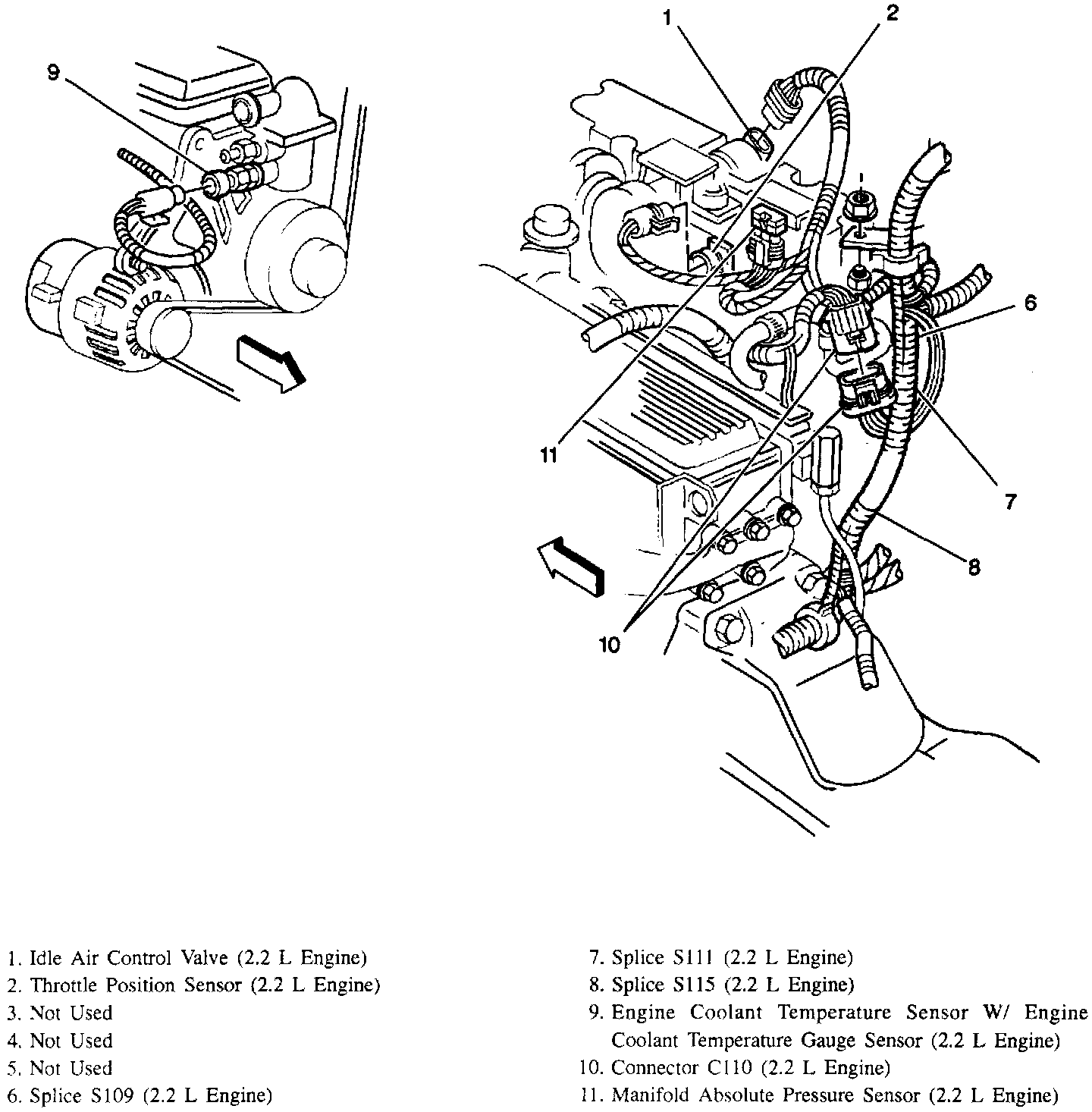

Engine Wiring (Right Side Views):
