Chevy Truck
>>
1994
>>
S10/T10 P/U 2WD L4-134 2.2L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Connector Views
Connector Views

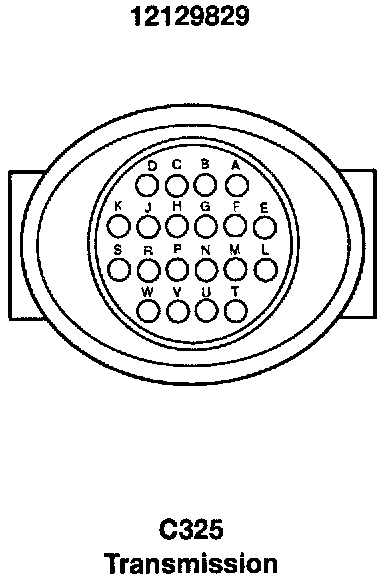

C325 - Transmission:

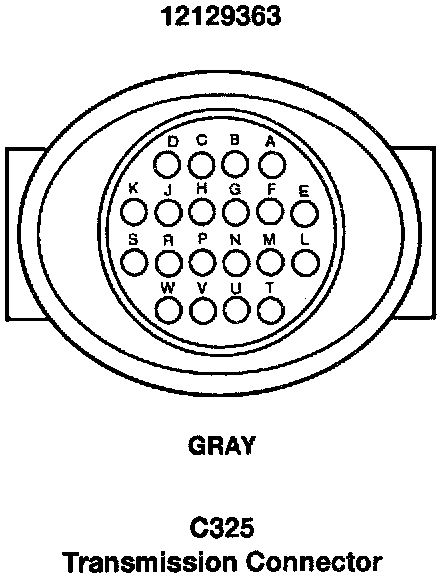

C325 - Transmission Connector:
