Home >> Chevy Truck >> 1994 >> S10/T10 P/U 2WD L4-134 2.2L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Vehicle Speed Sensor Signal Buffer >> Locations

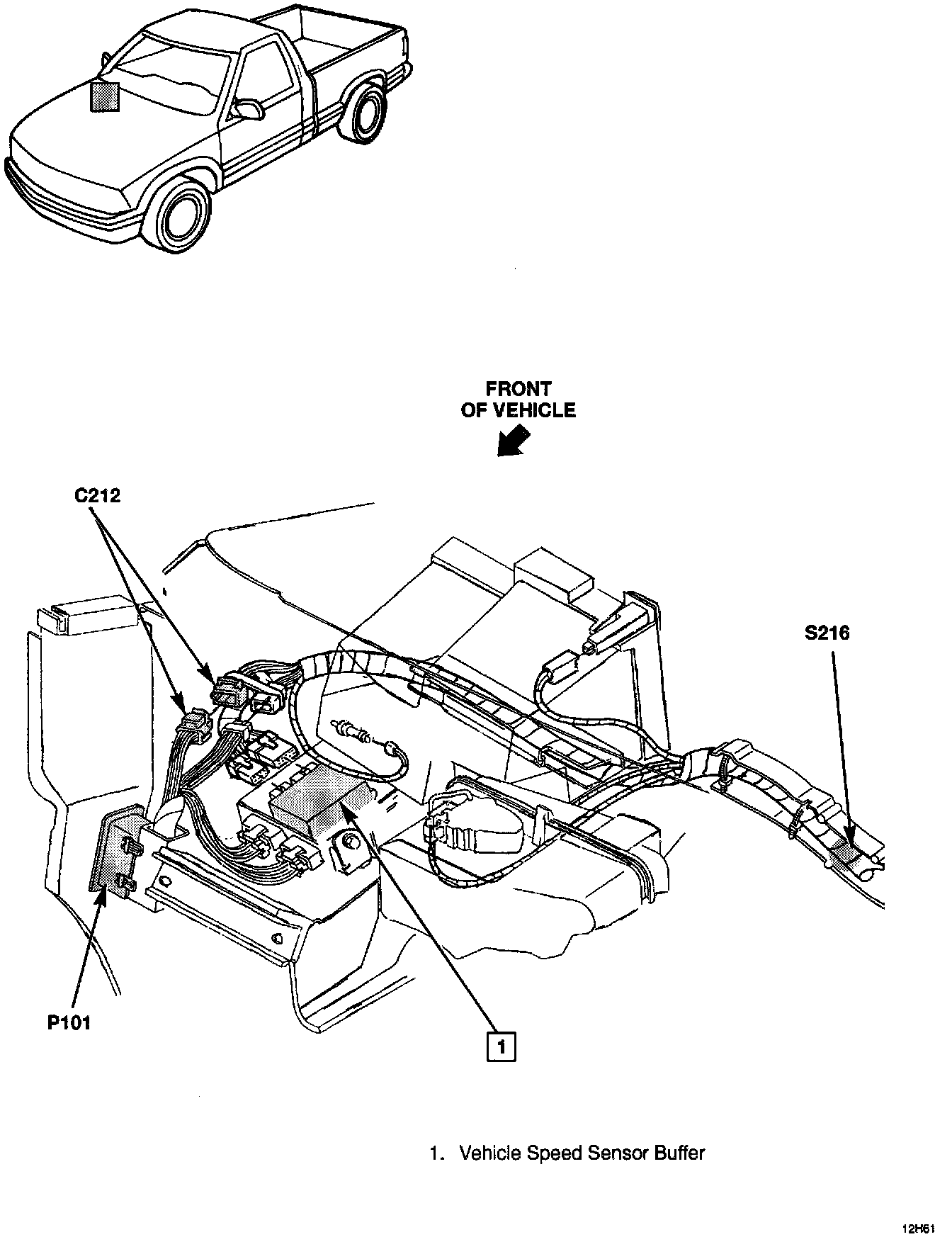

Vehicle Speed Sensor Signal Buffer: Locations

I/P Wiring, RH Side:
