Chevy Truck
>>
1994
>>
S10/T10 P/U 2WD L4-134 2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
System Diagram
>>
With Air Conditioning
>>
Compressor Control
Compressor Control

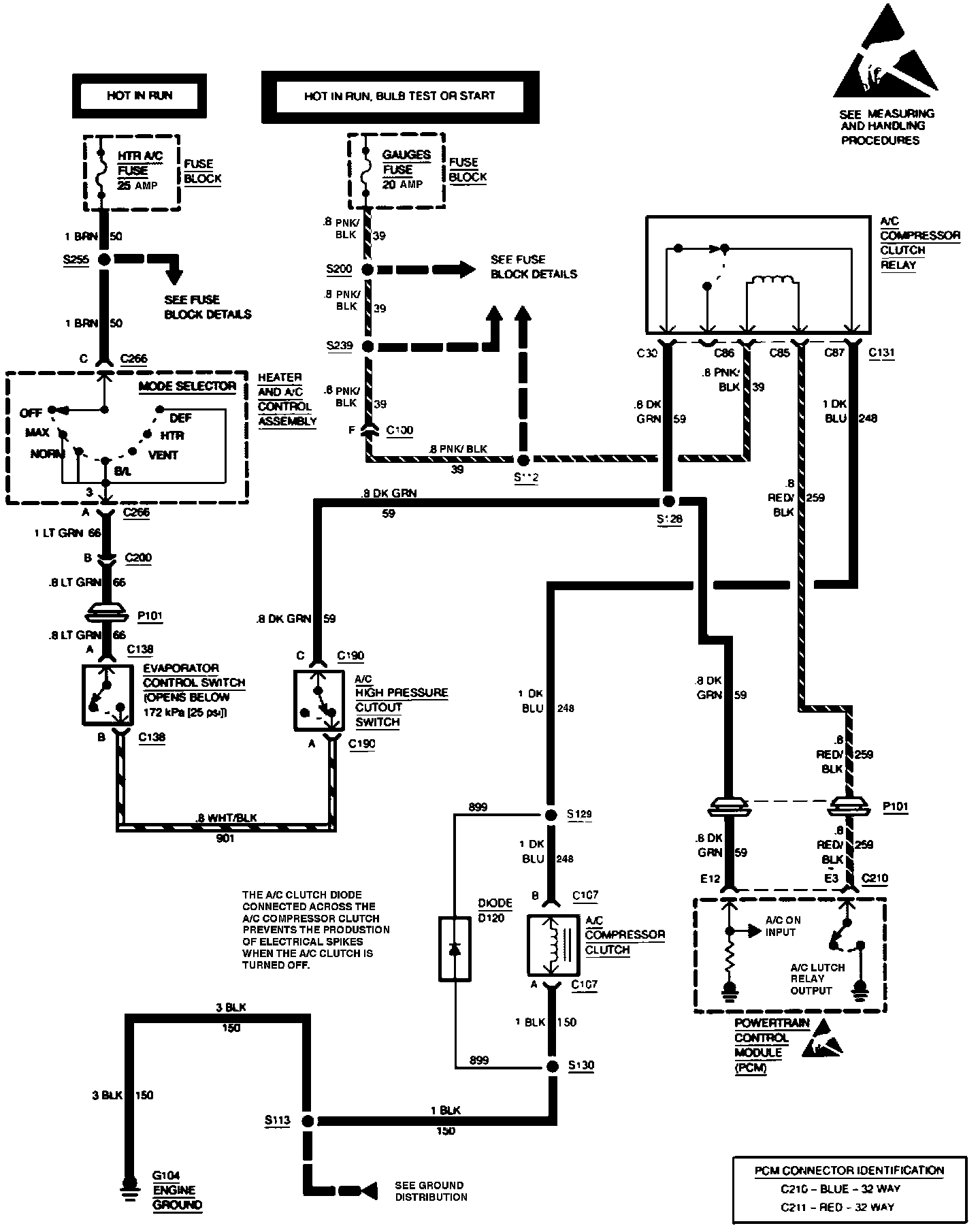

A/C Compressor Controls:
