Knock Sensor
>>
Testing and Inspection
>>

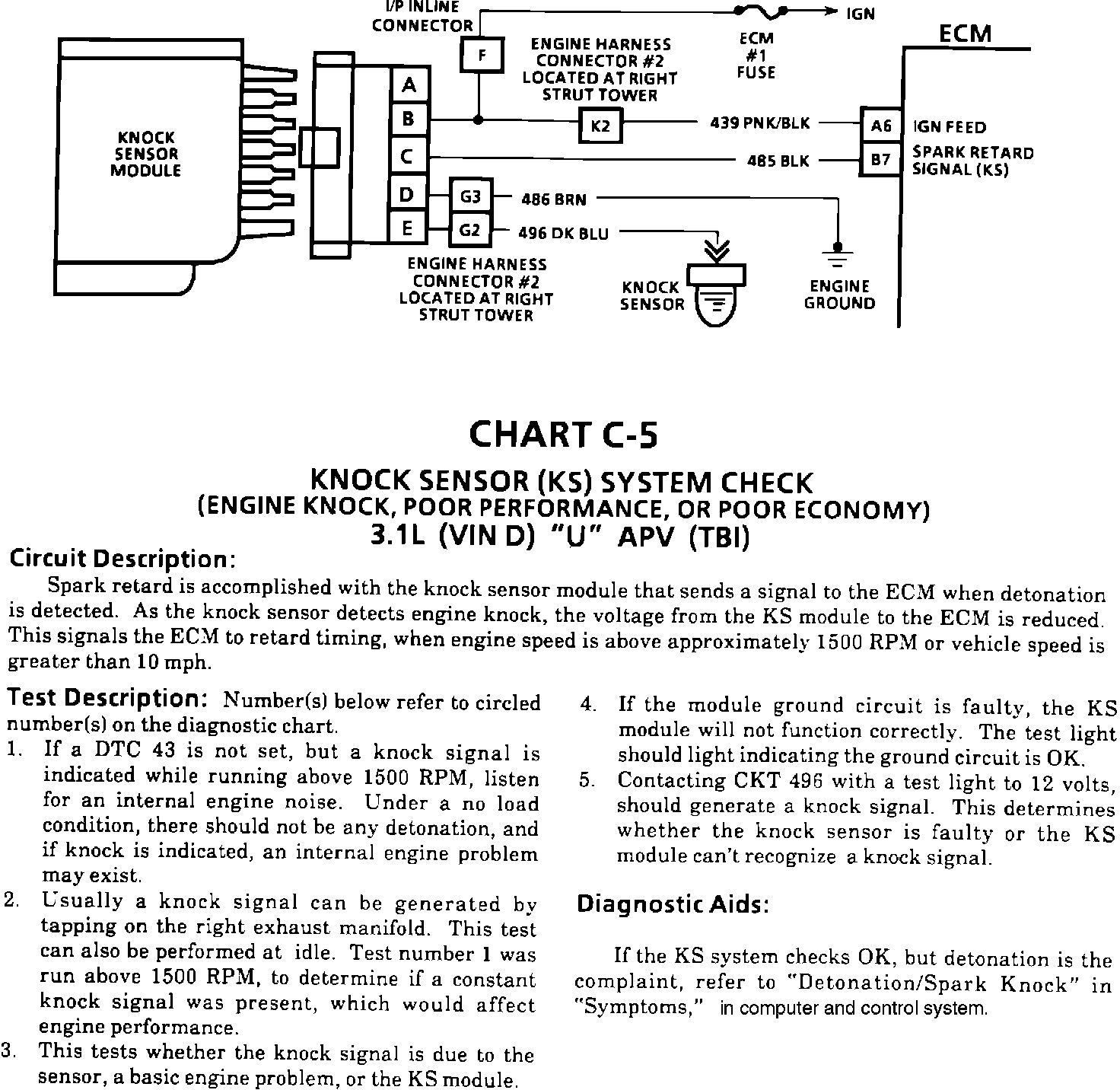

Chart C-5 Electronic Spark Control (ESC) System Check
Chart C-5 Electronic Spark Control (ESC) System Check
KS System Check:

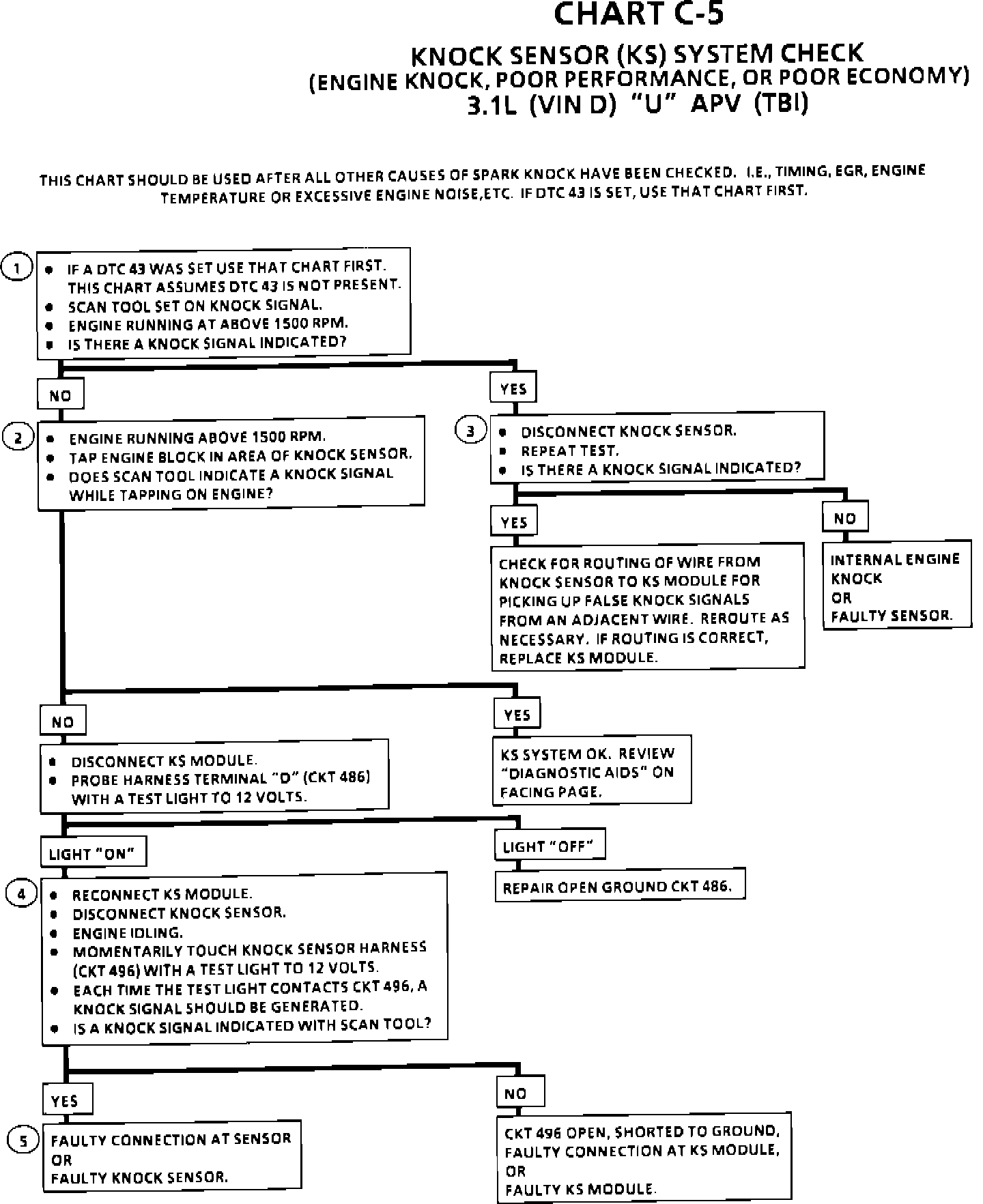

KS System Check Chart C-5:
