Home
>>
Chevy Truck
>>
1994
>>
Lumina APV V6-191 3.1L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Exploded Views
>>
A/C System Configuration
A/C System Configuration

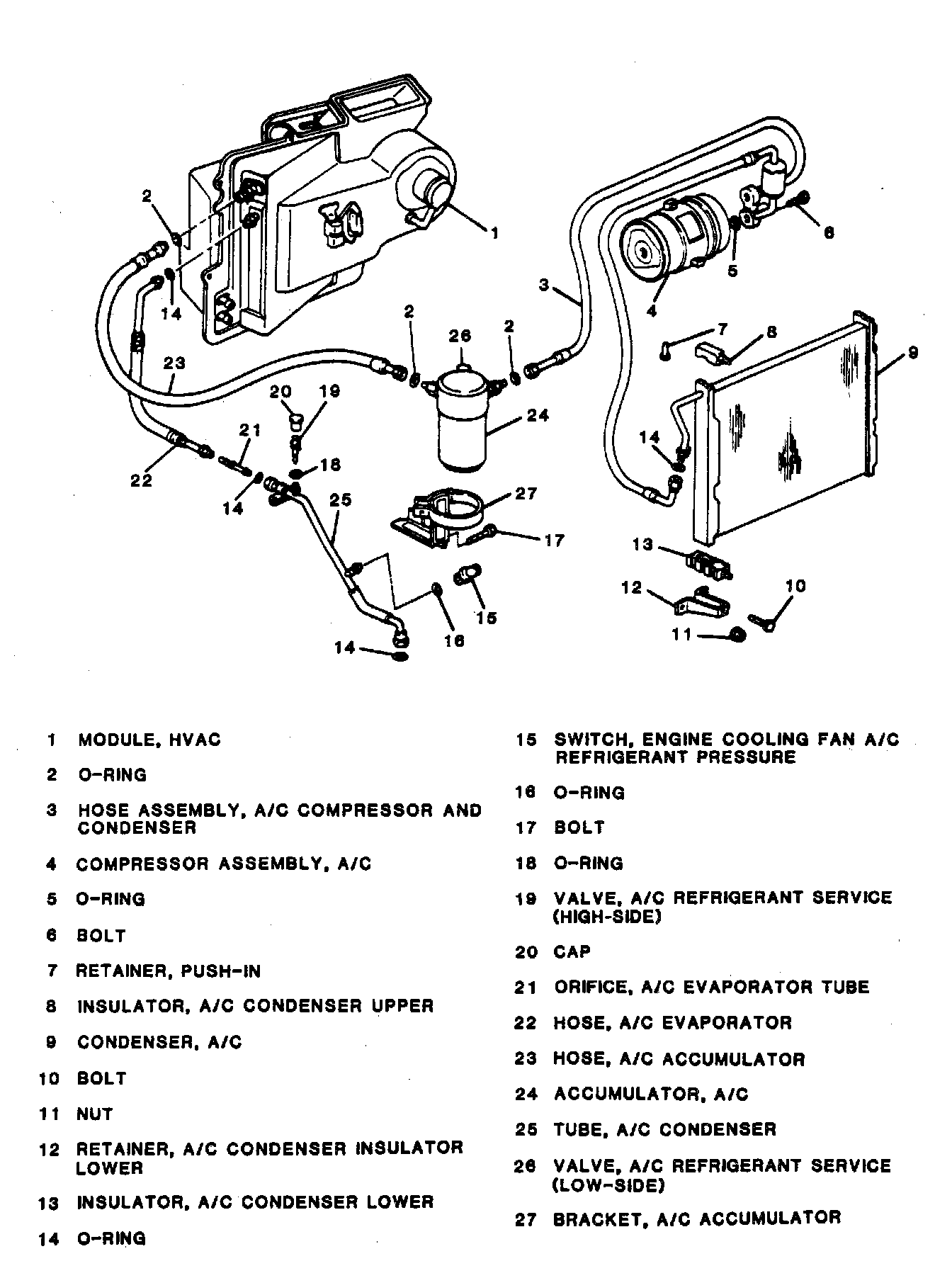

A/C System Configuration (LG6):
