Engine Control Module
>>
Locations
>>
Control Module Mounting Locations
Control Module Mounting Locations

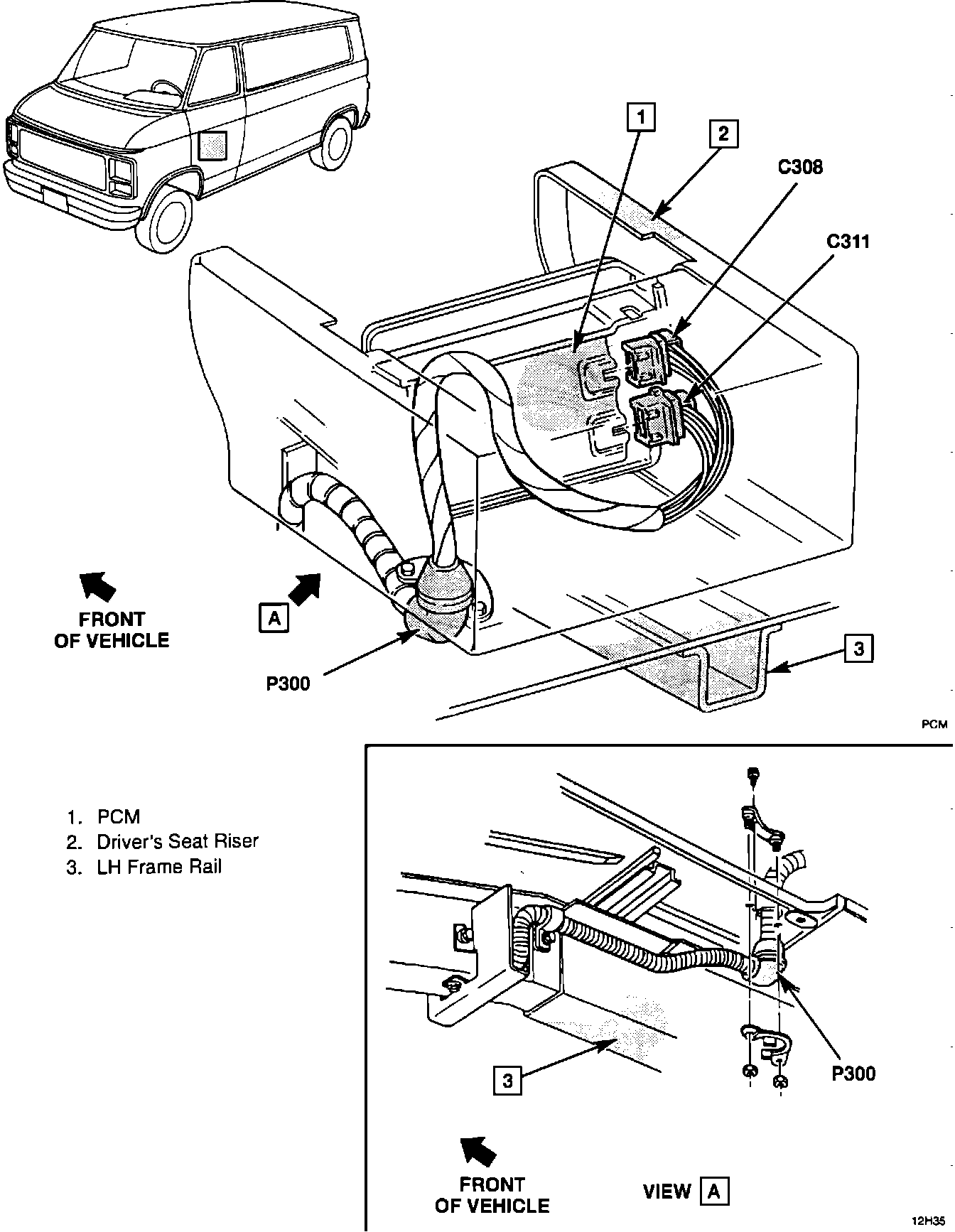

PCM Wiring W/O Body Builder Junction Block:

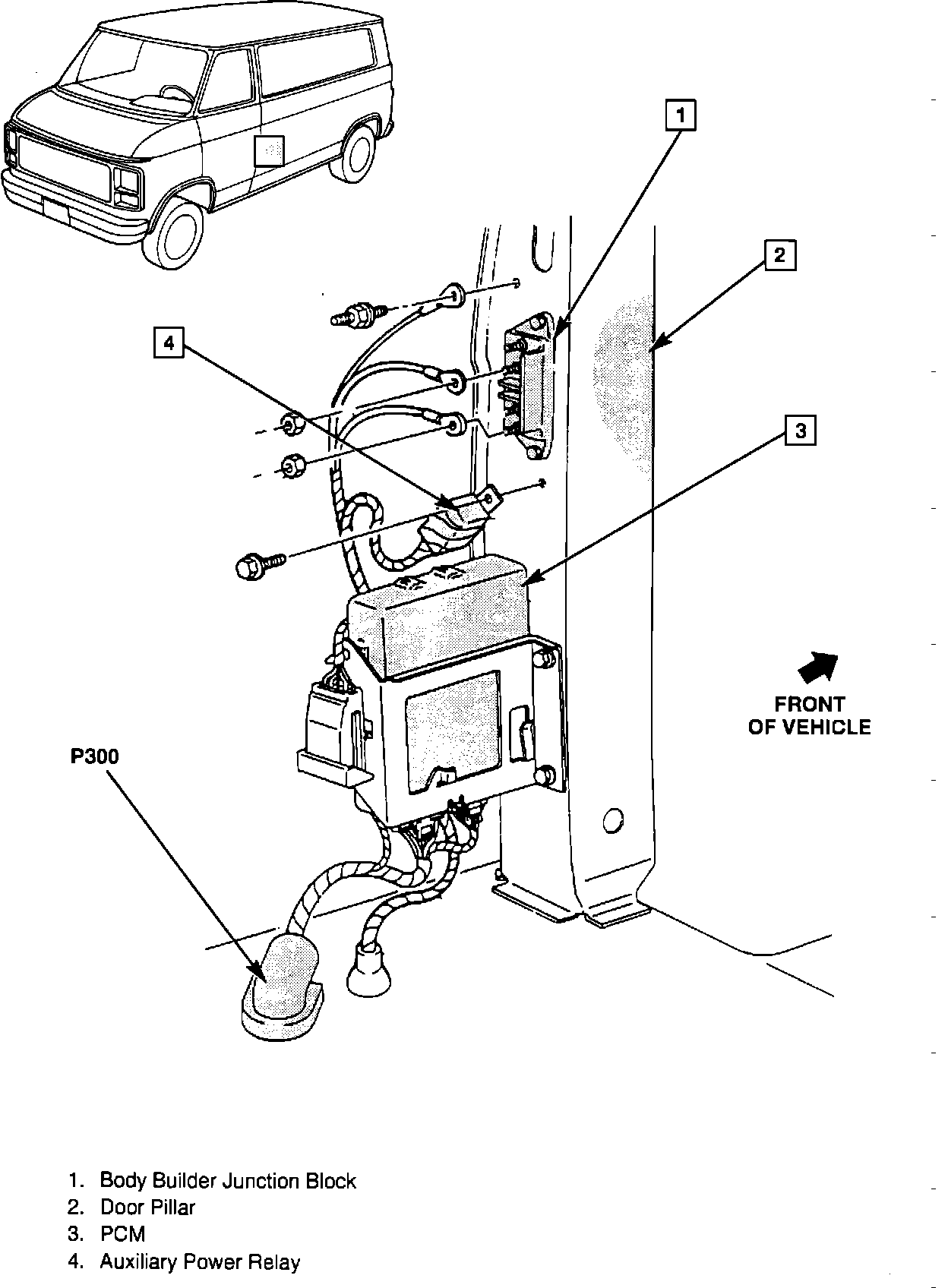

PCM Wiring W/Body Builder Junction Block:
