Home
>>
Chevy Truck
>>
1993
>>
Lumina APV V6-3800 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
With Sequential Fuel Injection
>>

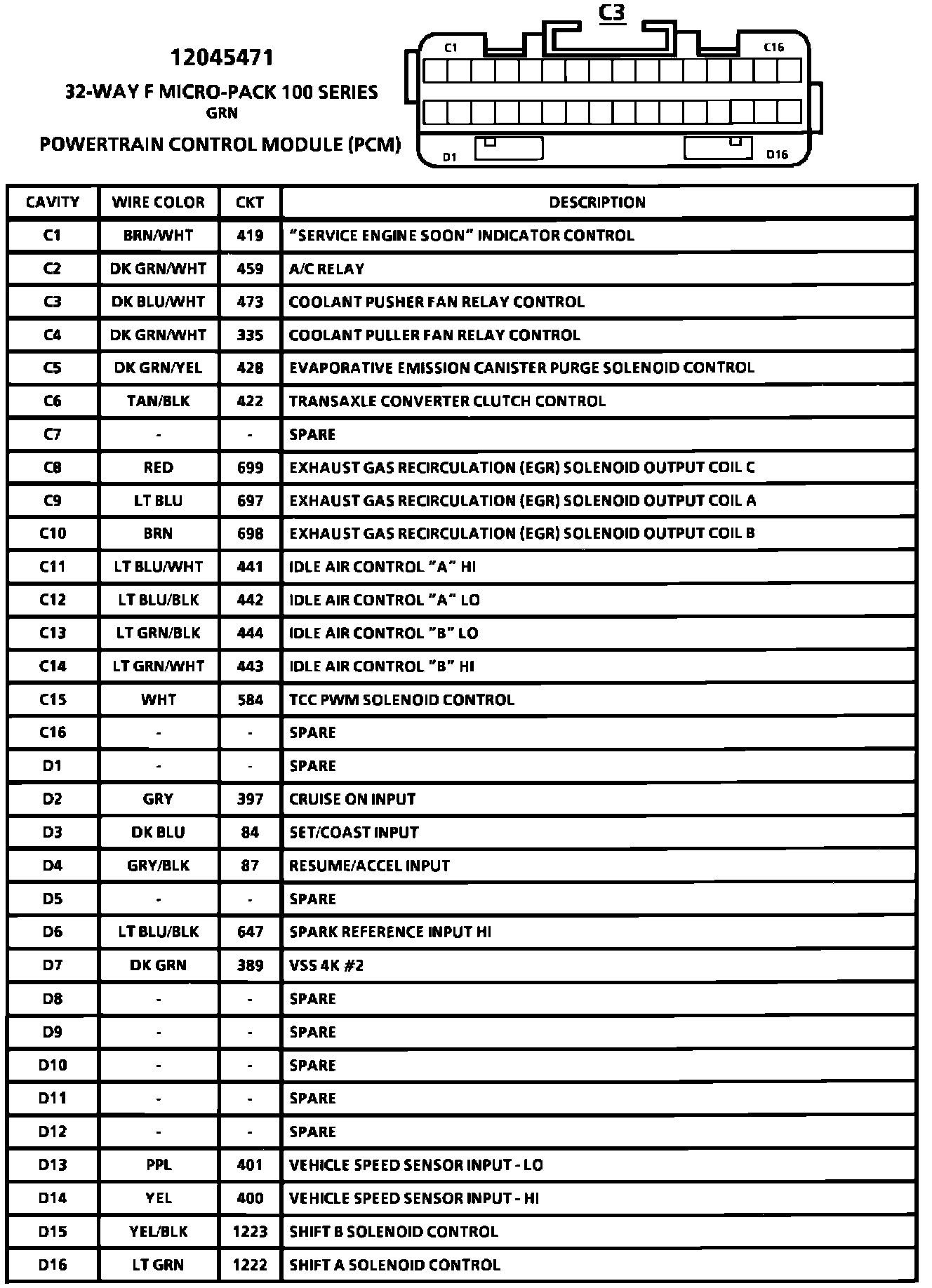

Connector C3
Connector C3
SFI Connector Face: C3 Connector:
