Manifold Pressure/Vacuum Sensor: Locations

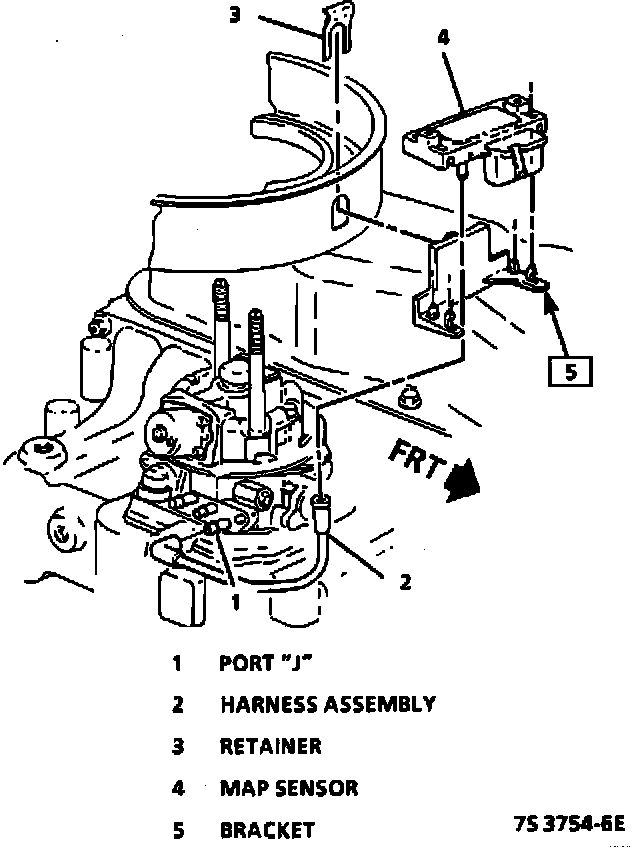

MAP 2.5L (S) MANIFOLD AIR PRESSURE SENSOR:
Top right hand side of engine attached to air cleaner assembly.
