ECM/PCM Outputs
ECM/PCM Outputs

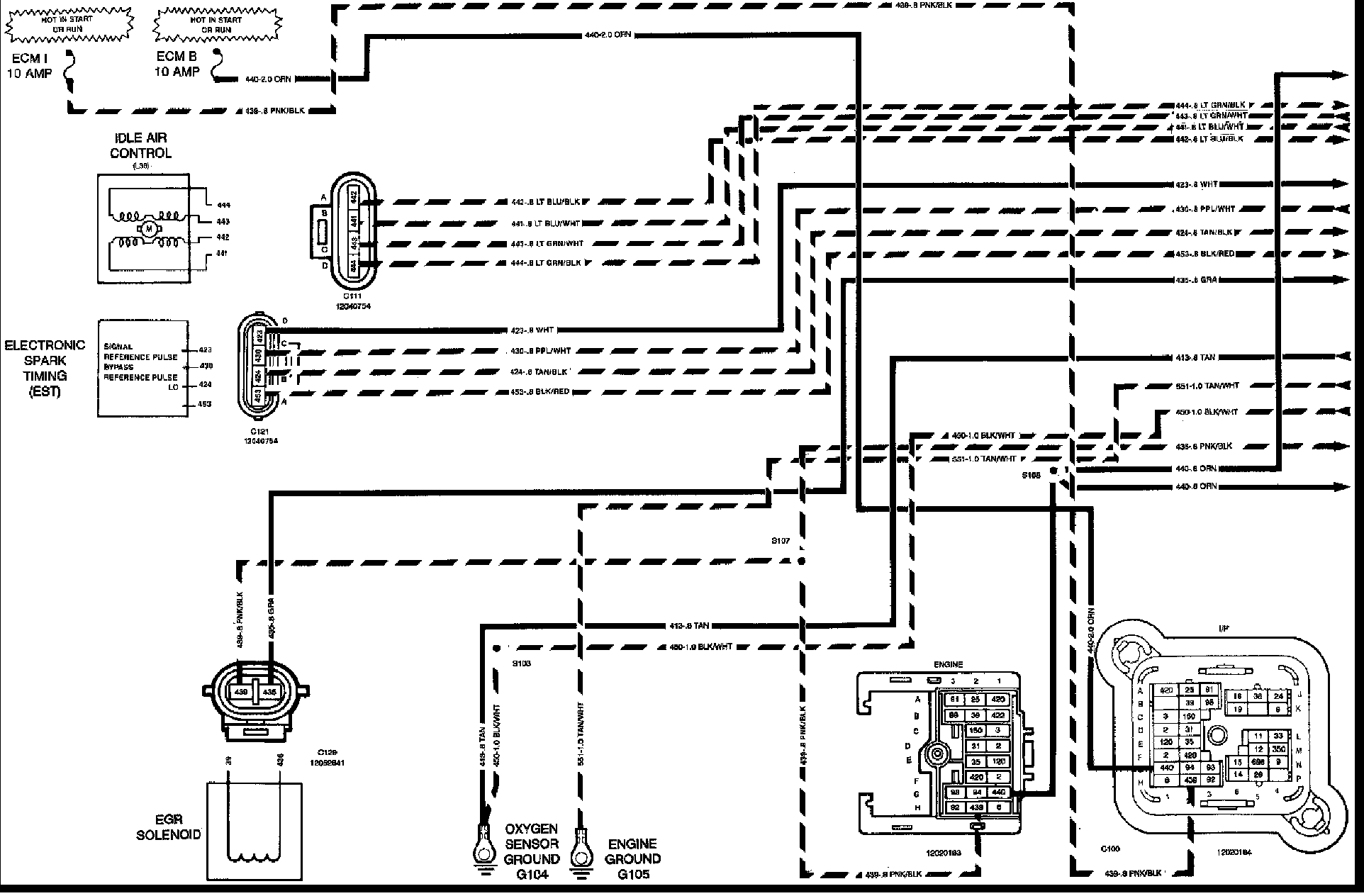

Electronic Control Module Outputs:

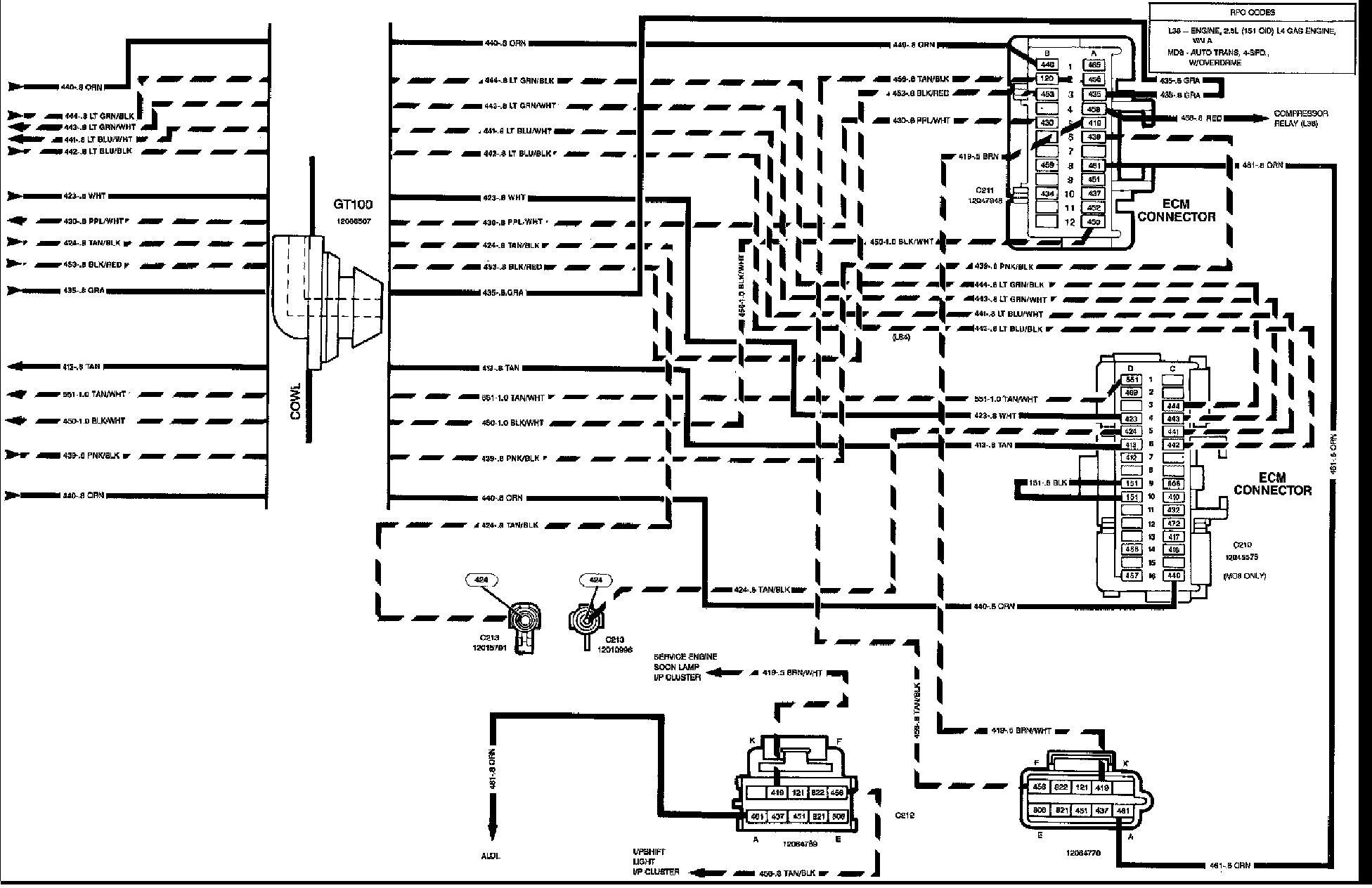

Electronic Control Module Outputs:
