Chevy Truck
>>
1990
>>
Astro Van L AWD V6-262 4.3L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
Component Tests and General Diagnostics

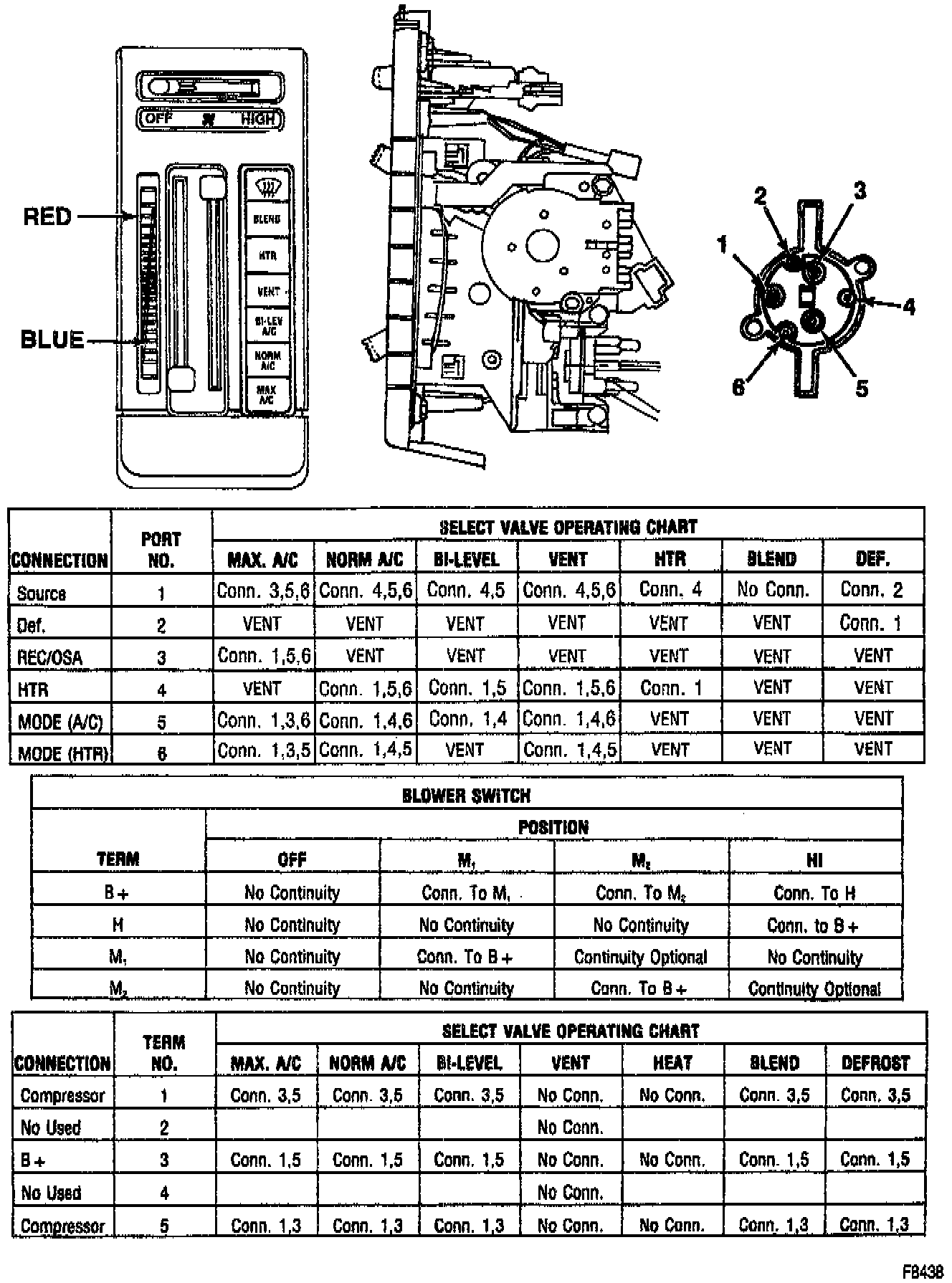

Control Assembly Operating Chart:
