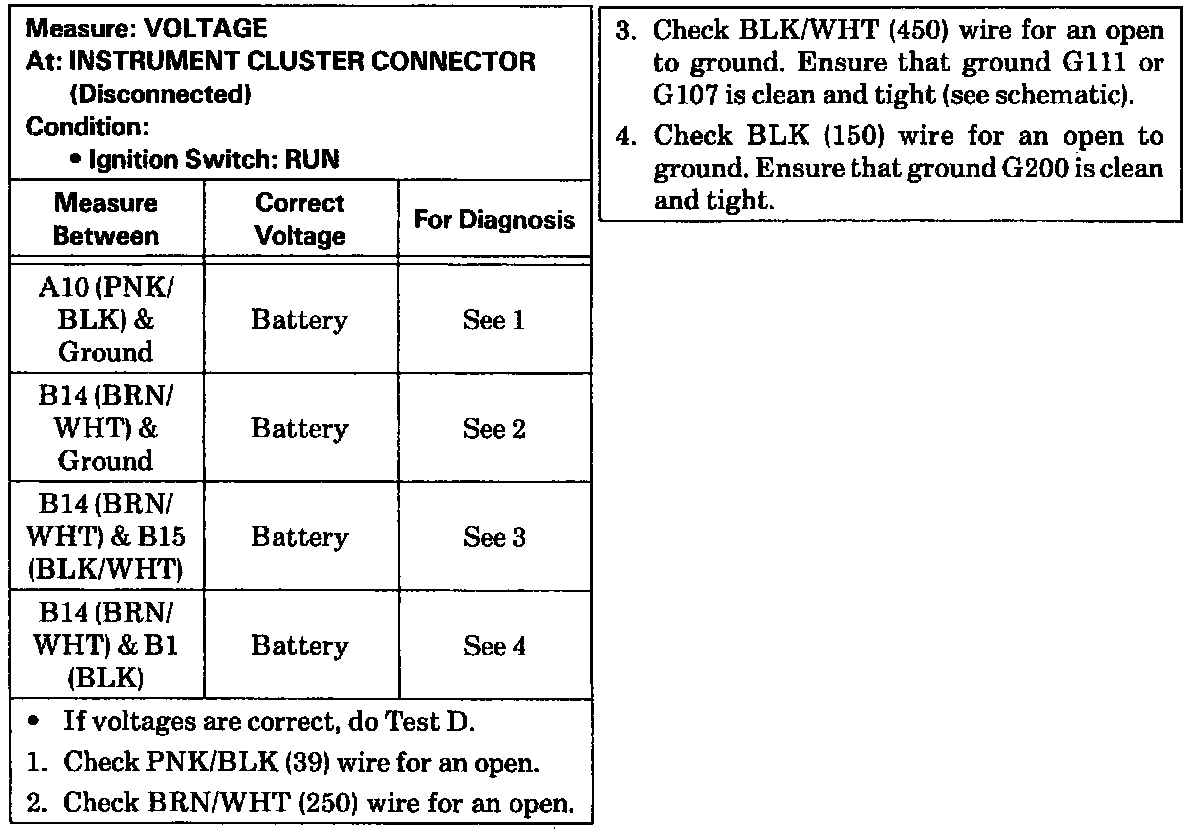

Test A: Vehicle Speed Sensor Buffer Power Input Test
Test A: Vehicle Speed Sensor Buffer Power Input Test
