Chevy Truck
>>
1988
>>
Astro Van M L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Compressor HVAC
>>
With DA-6 Compressor
With DA-6 Compressor

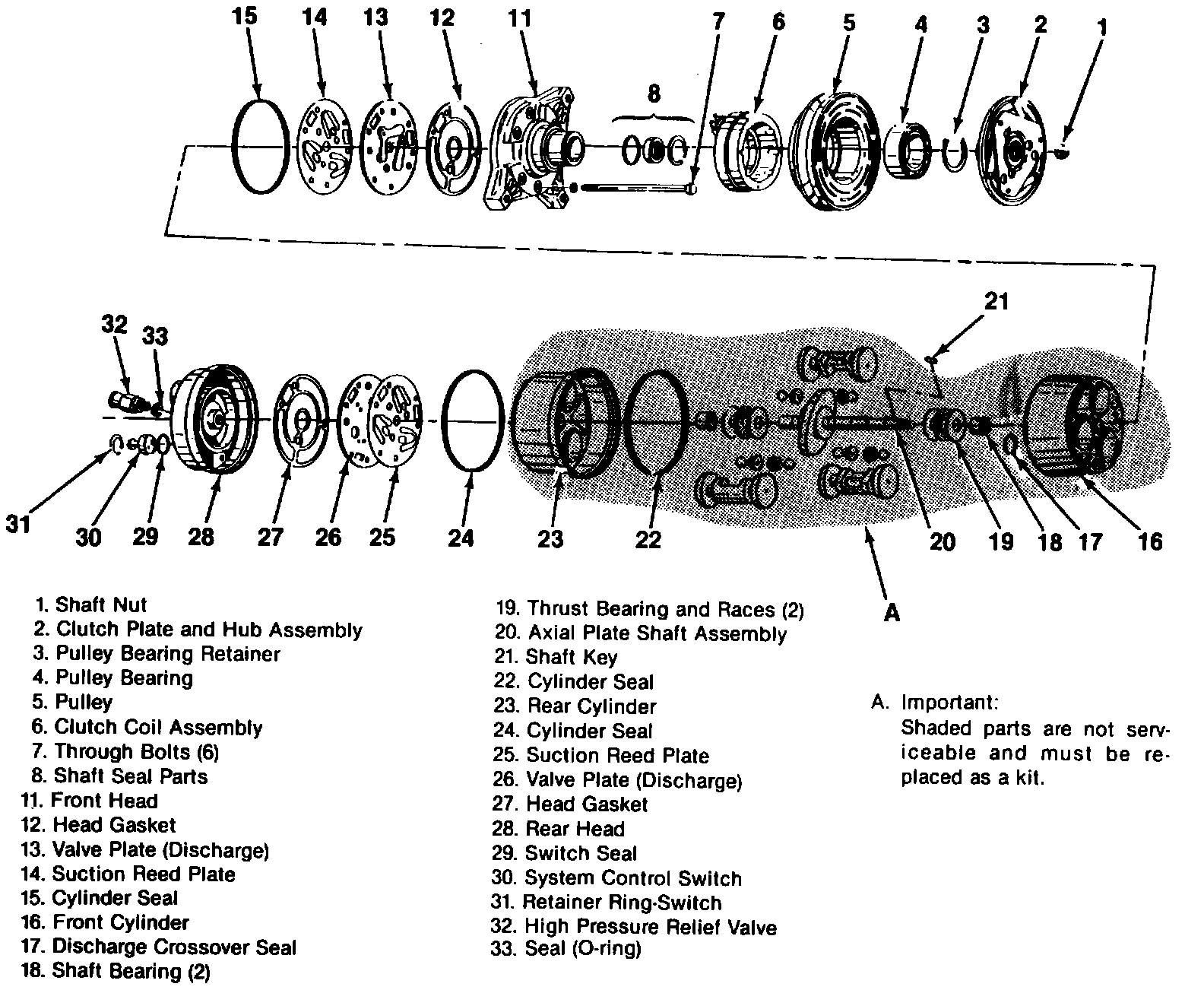

DA-6 Component View:
