Home
>>
Chevy Truck
>>
1987
>>
S10/T10 P/U 4WD L4-151 2.5L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Testing and Inspection
>>
Base Heater
Base Heater

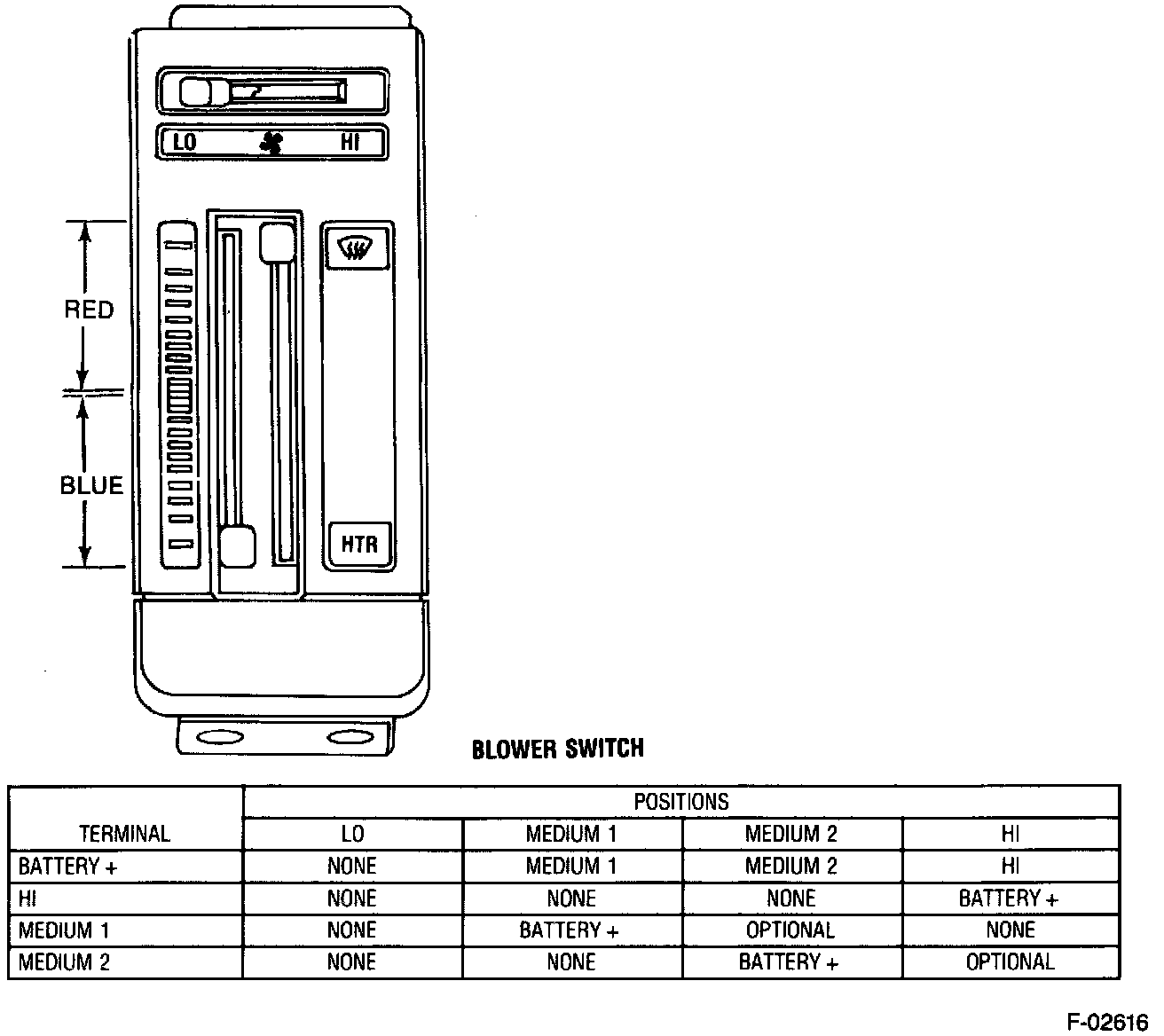

Fig 4. Heater Functional Test - Base Heater.:
