Chevy Truck
>>
1986
>>
Astro Van M V6-262 4.3L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Functional Test/Check
>>
Functional Test - Without A/C
>>
Base Heater
Base Heater

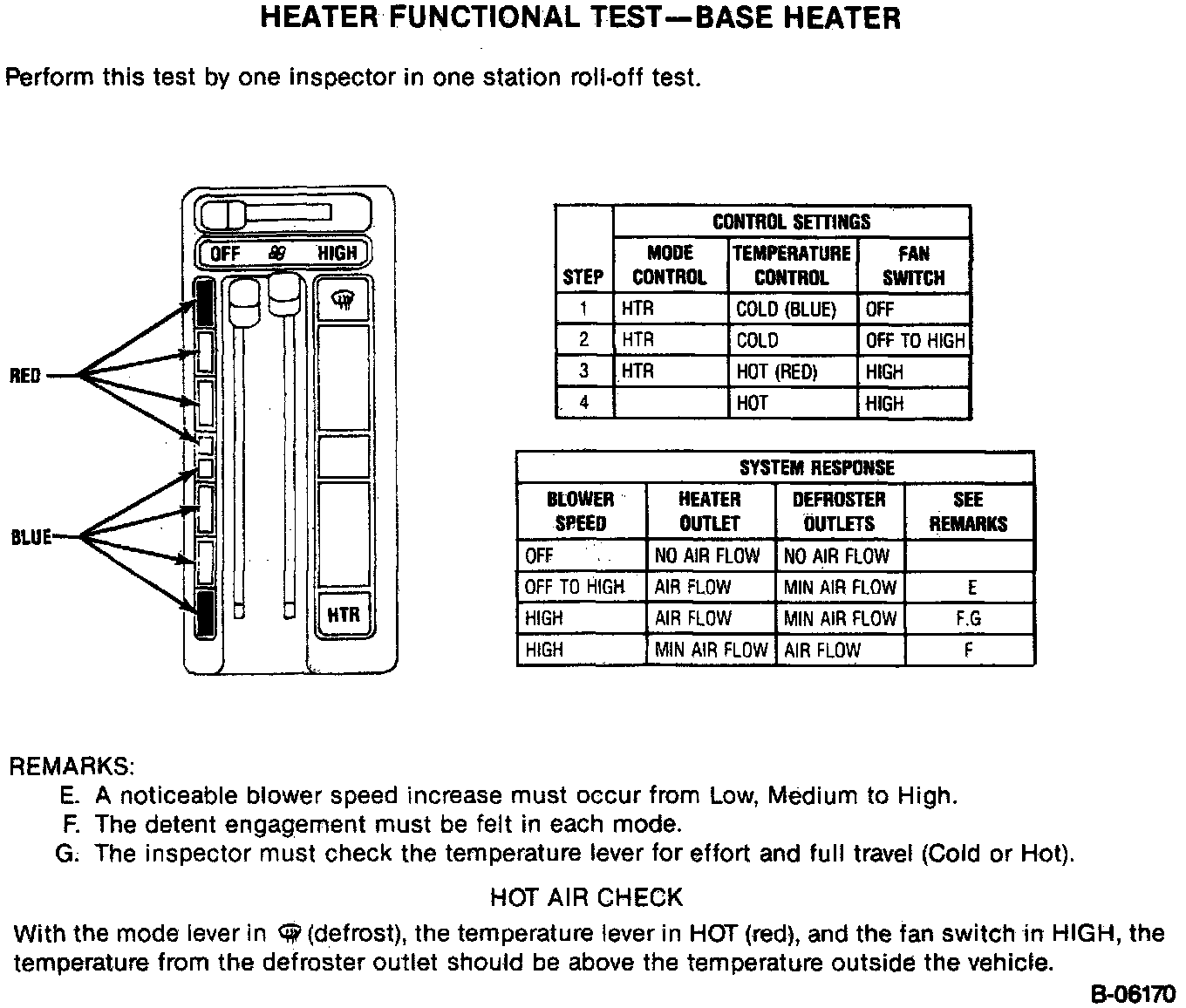

Figure 8-Functional Test-Base Heater:
