Ambient Temperature Sensor / Switch HVAC: Service and Repair

Ambient Air Temperature Sensor Replacement (LHD)

Removal Procedure

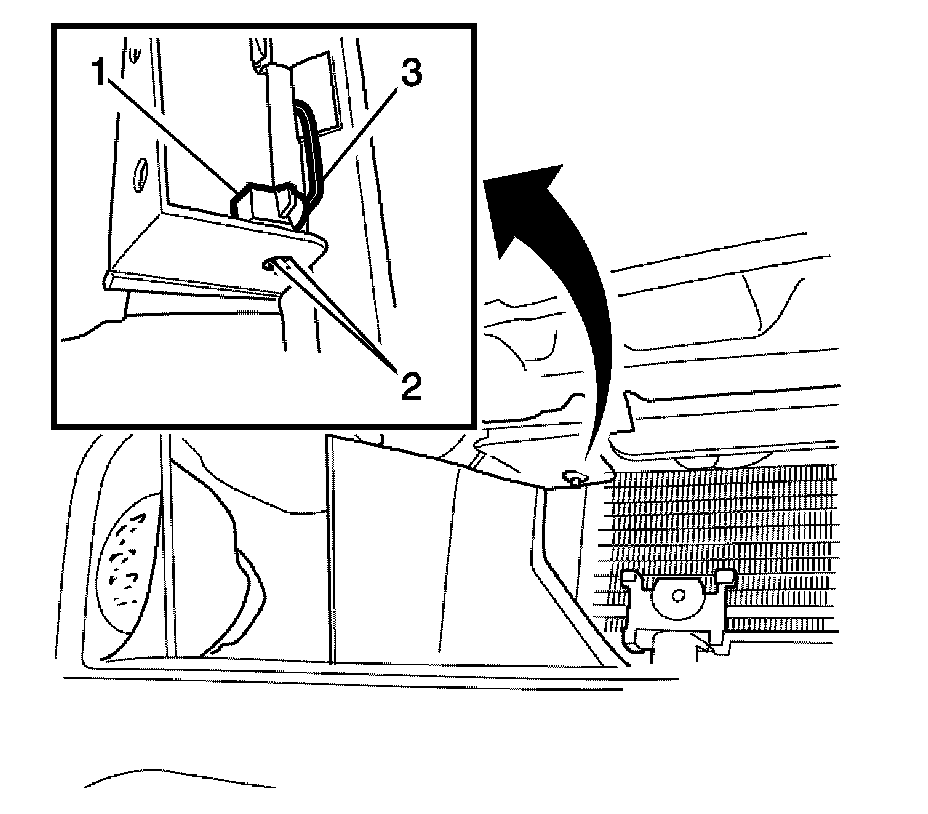

1. Remove the ambient air temperature sensor (1) by squeezing the locking tabs (2) and push free from the bracket.

2. Disconnect the ambient air temperature sensor electrical connector (3).

3. Remove the ambient air temperature sensor (1).

Installation Procedure




1. Position the ambient air temperature sensor (1) in the right radiator grille cavity.

2. Connect the ambient air temperature sensor electrical connector (3).

3. Install the ambient air temperature sensor (1) by ensuring the locking tabs (2) are correctly located in the bracket.
