Connector Views
Component Connector End Views

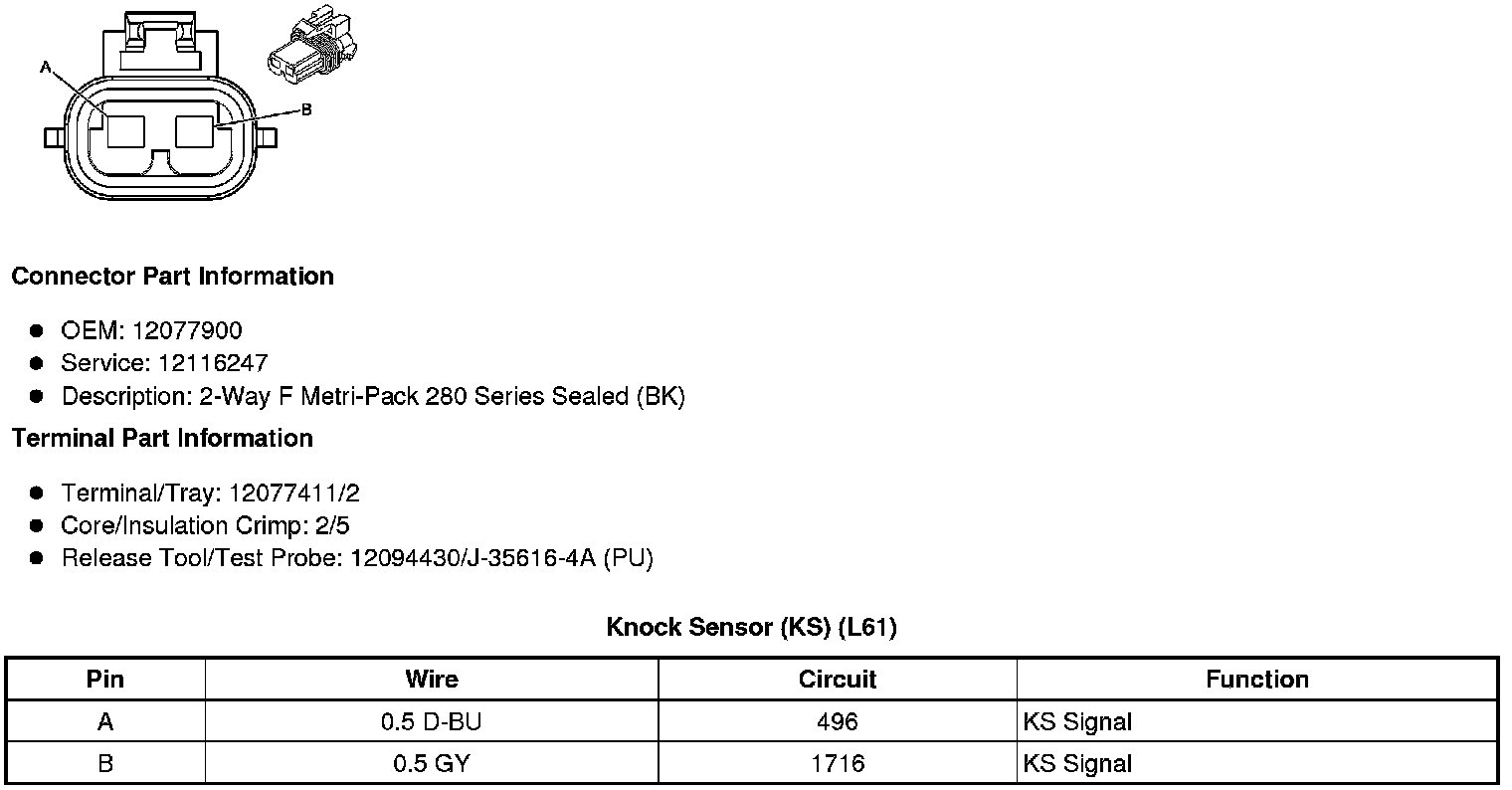

Knock Sensor (KS) (L61)

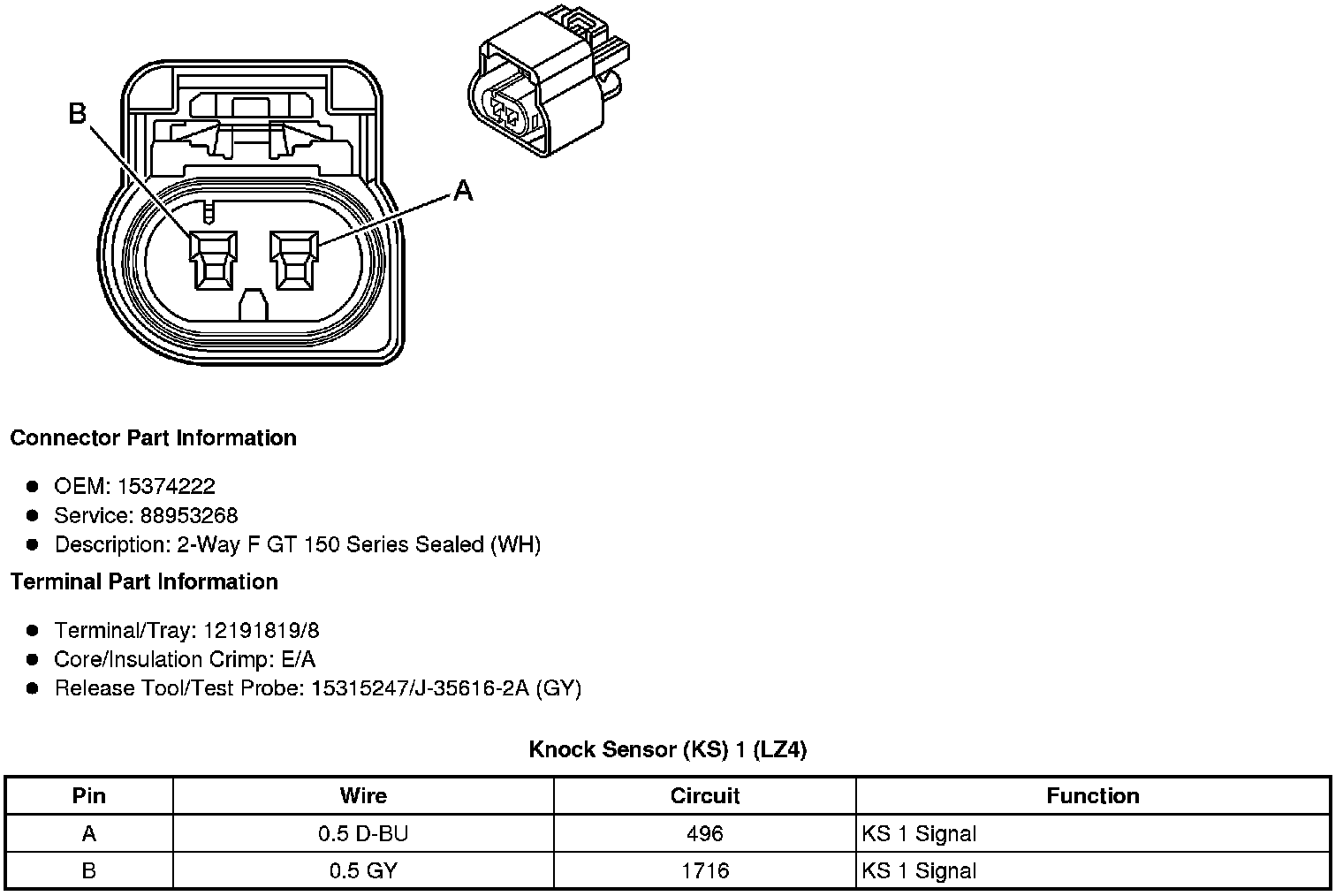

Knock Sensor (KS) 1 (LZ4)
Knock Sensor (KS) 2 (LZ4)
