Trunk / Liftgate Switch



Component Connector End Views

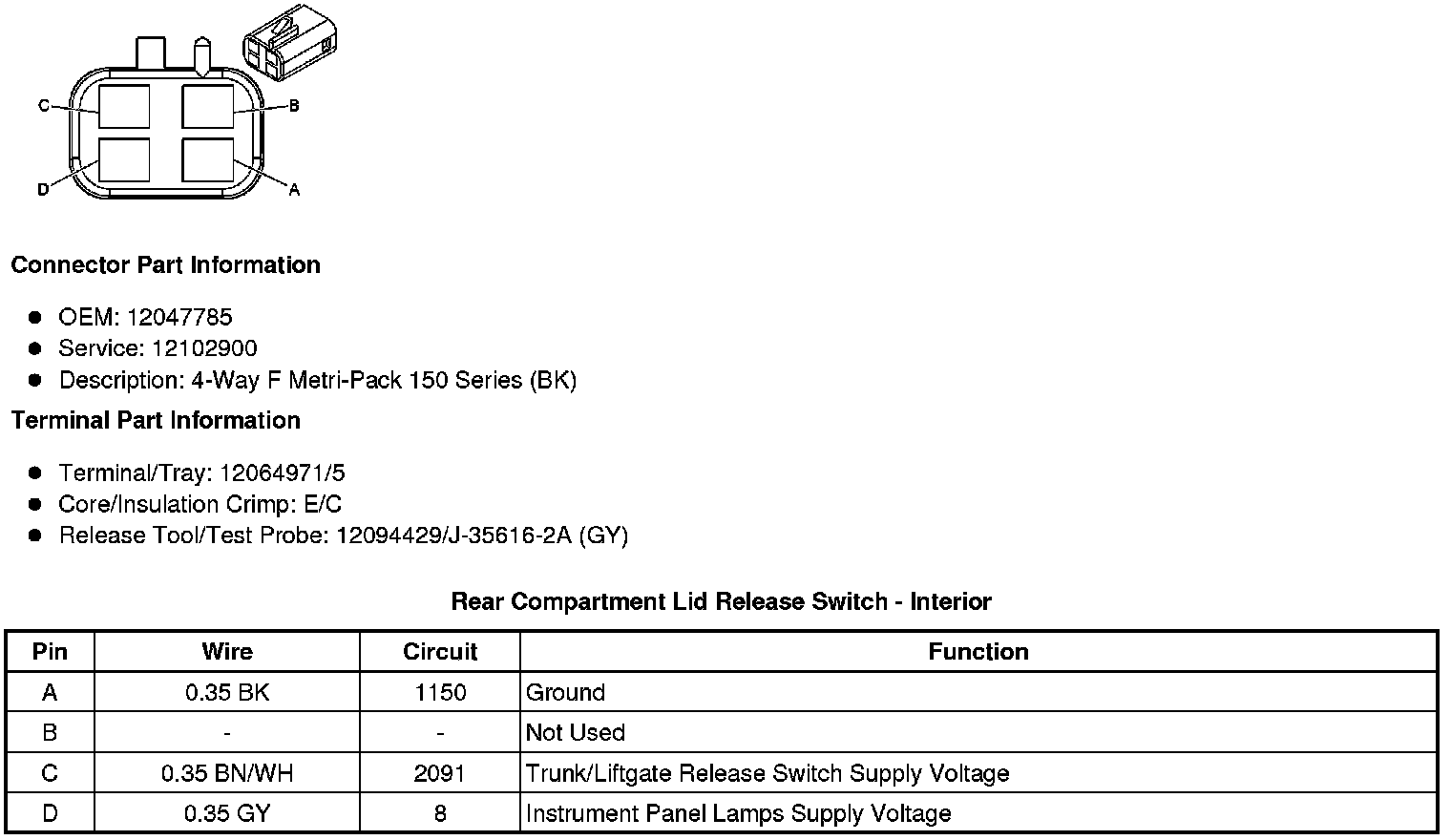

Rear Compartment Release Switch - Interior

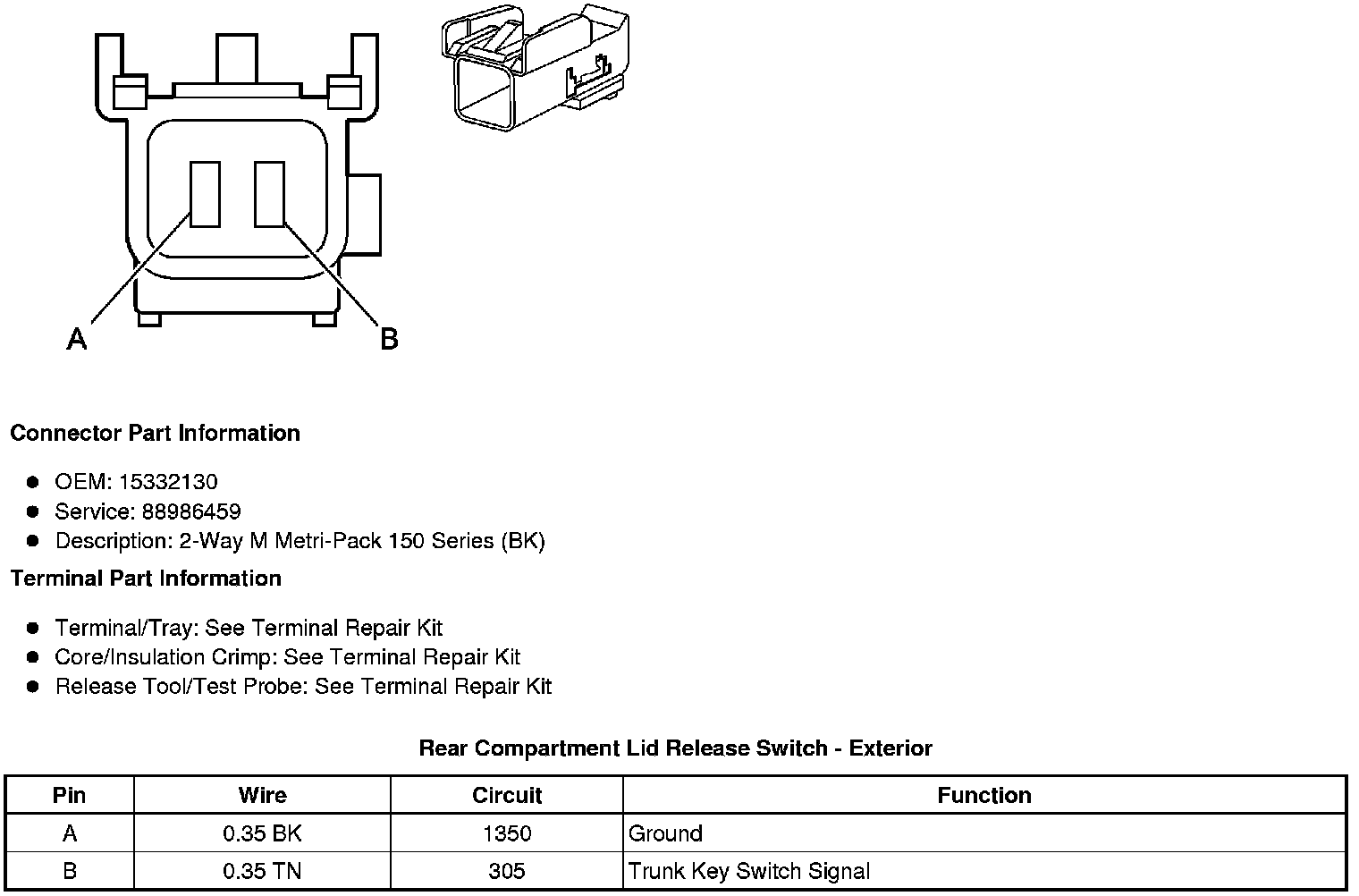

Rear Compartment Lid Release Switch - Exterior
