Steering Mounted Controls Transmitter



Component Connector End Views

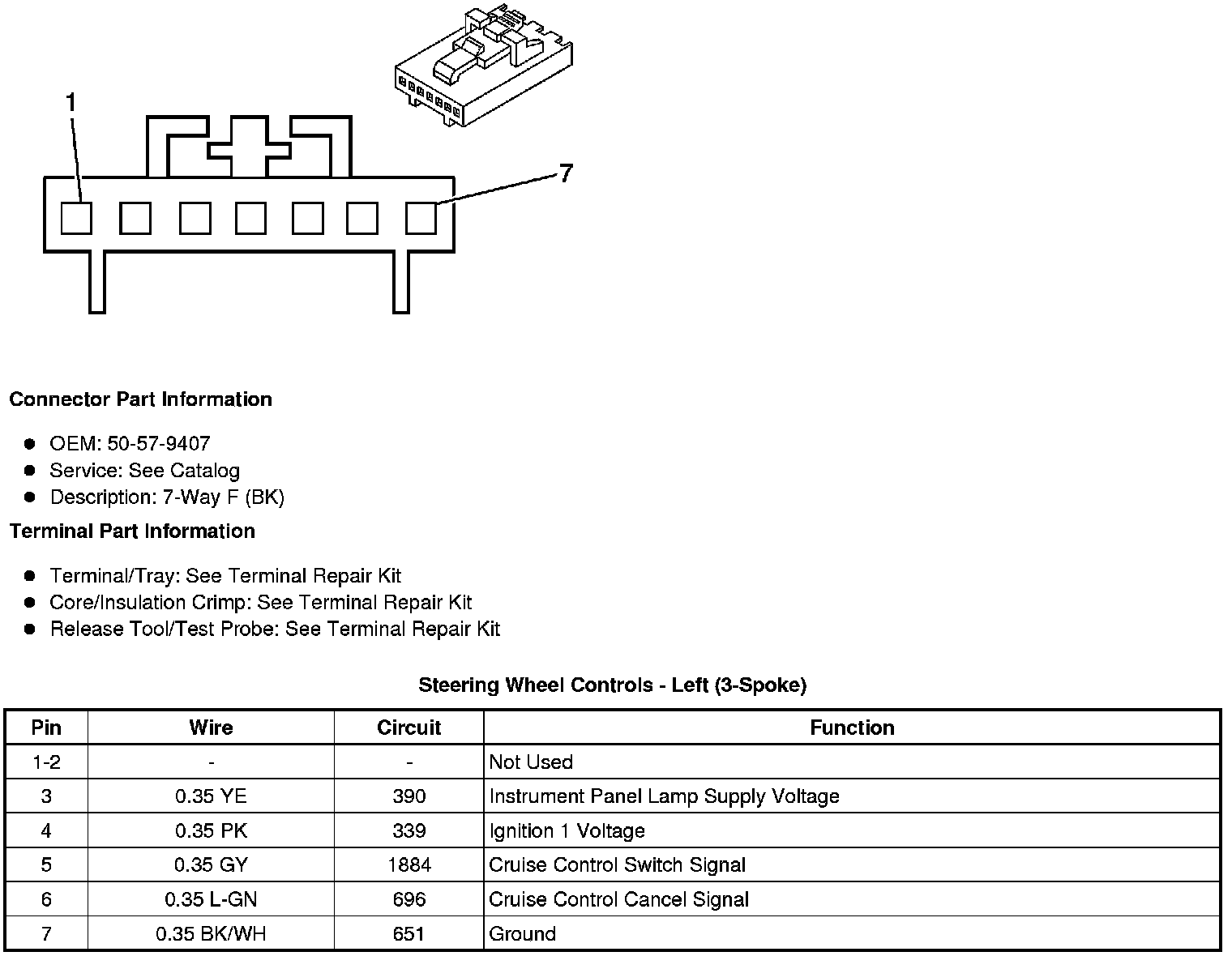

Steering Wheel Controls - Left (3-Spoke)

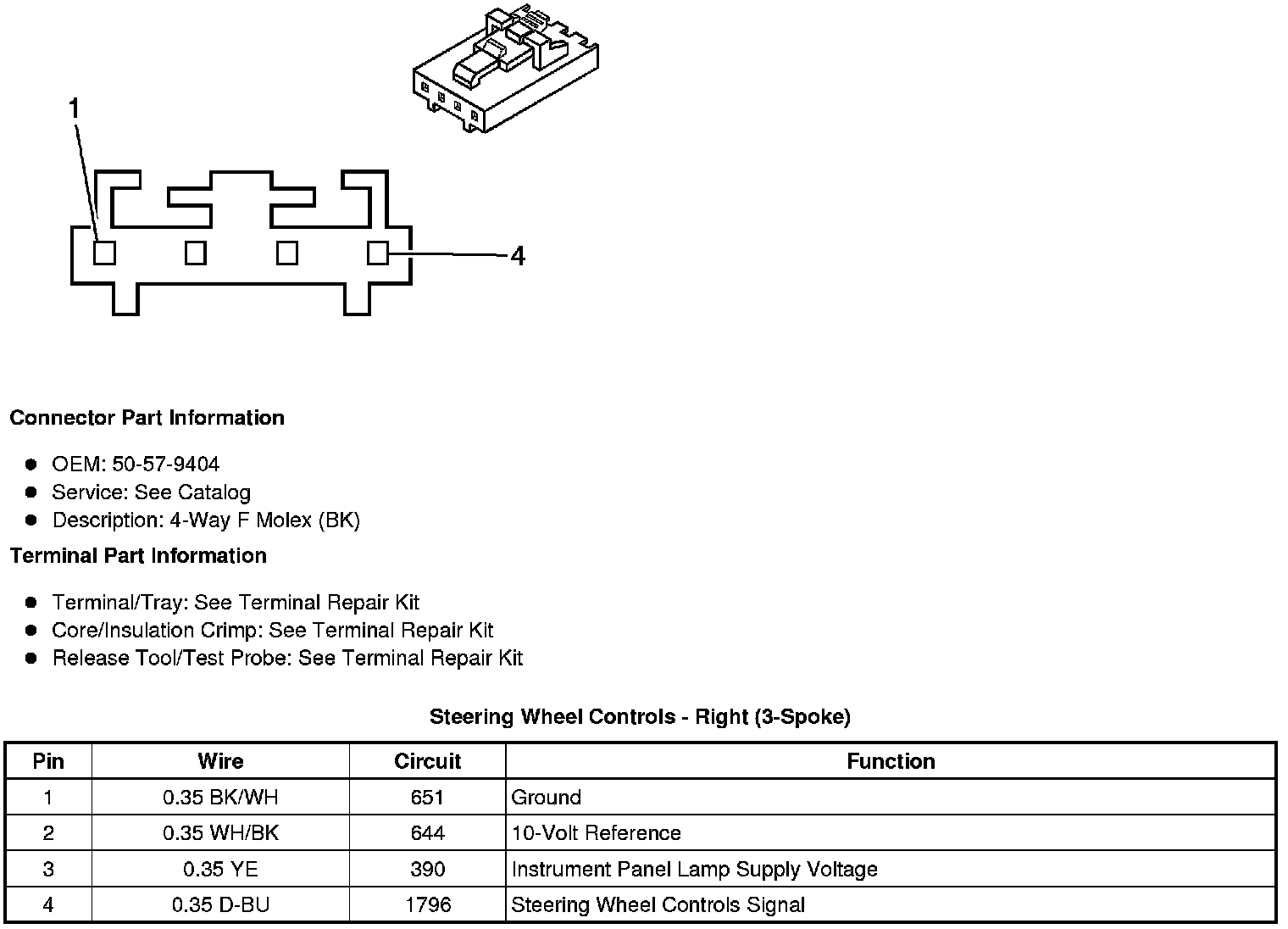

Steering Wheel Controls - Right (3-Spoke)

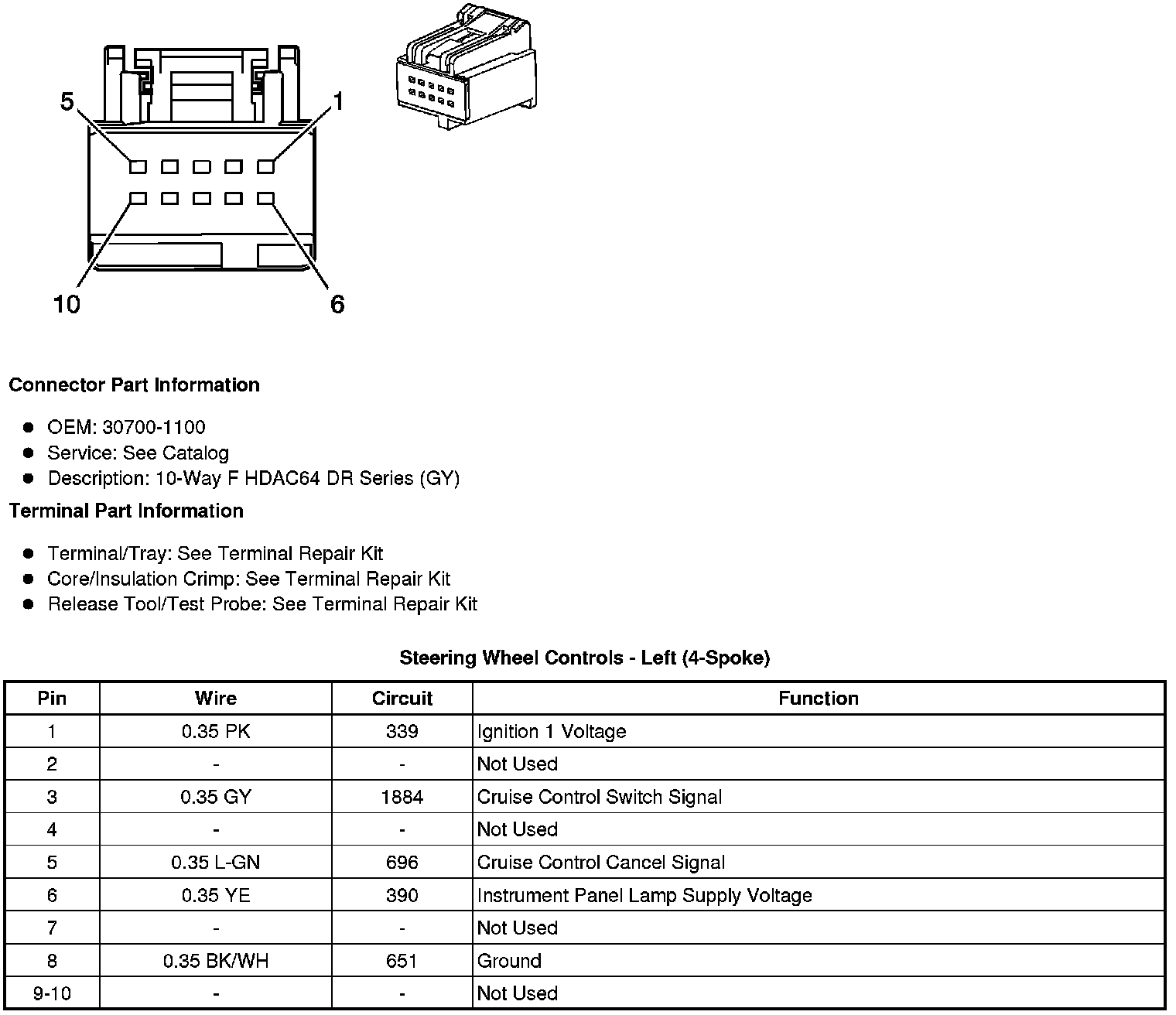

Steering Wheel Controls - Left (4-Spoke)

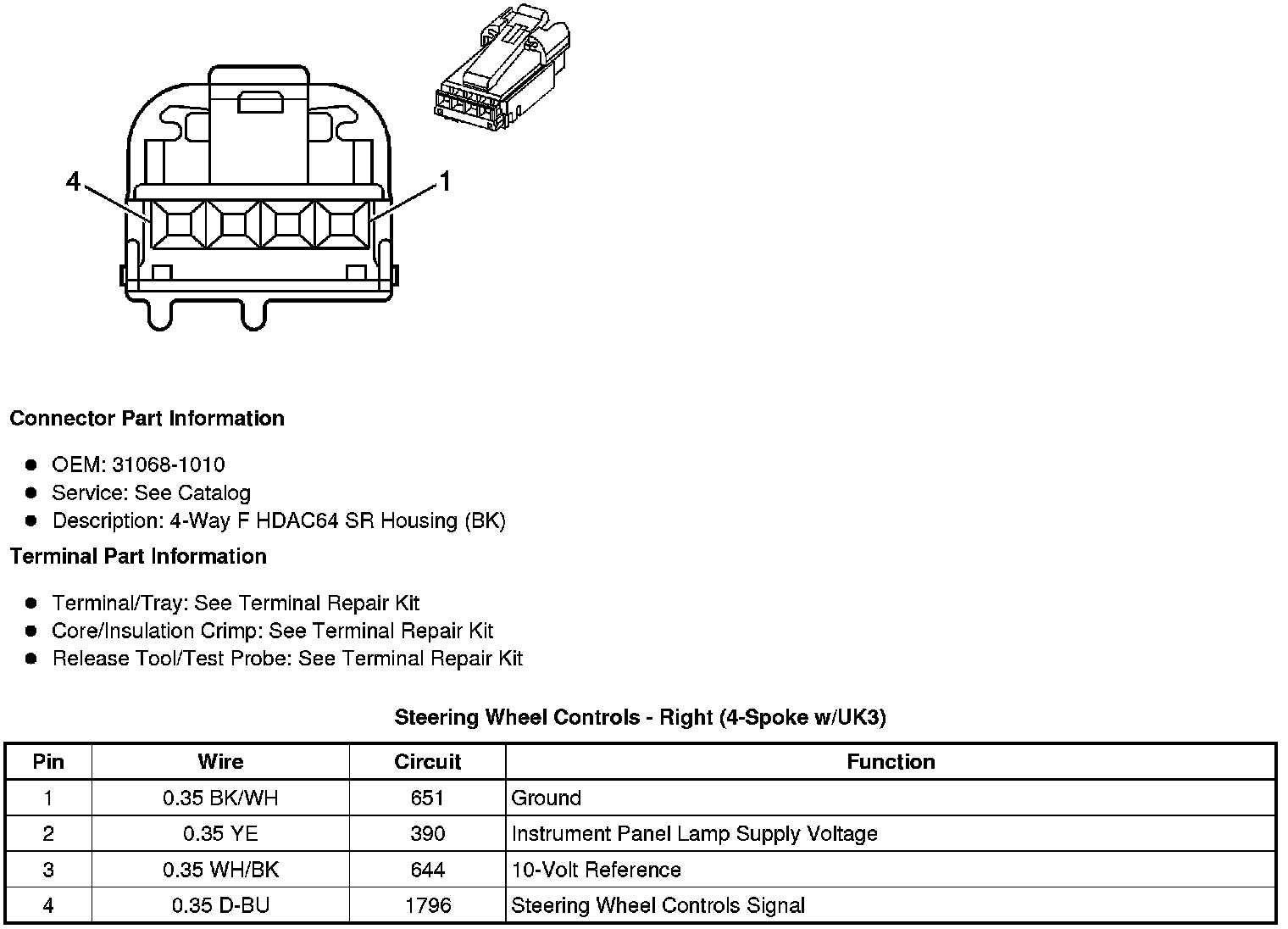

Steering Wheel Controls - Right (4-Spoke +UK3)
