Windshield Washer Hose: Service and Repair

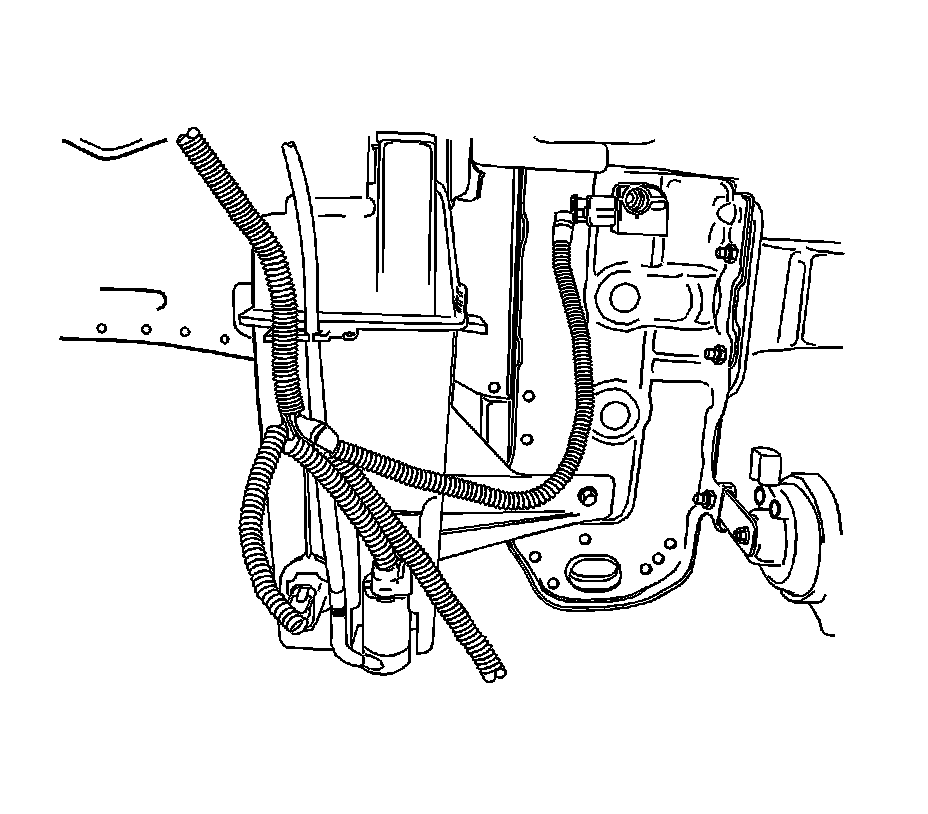

Hose Replacement - Windshield Washer

Removal Procedure




1. Open the hood.
2. Disconnect the windshield washer hose from the washer nozzles on the hood.
3. Remove the front right wheel. Refer to Tire and Wheel Removal and Installation Service and Repair in Tires and Wheels.
4. Remove the front wheel well splash shield. Refer to Splash Shield Replacement - Wheelhouse Service and Repair in Body Front End.
5. Disconnect the washer hose from the washer reservoir.
6. Remove the washer hose.

Installation Procedure




1. Connect the washer hose to the washer pump.
2. Install the front wheel well splash shield. Refer to Splash Shield Replacement - Wheelhouse Service and Repair in Body Front End.
3. Install the front right wheel. Refer to Tire and Wheel Removal and Installation Service and Repair in Tires and Wheels.
4. Connect the windshield washer hose to the washer nozzles on the hood.
5. Close the hood.
