Manifold Pressure/Vacuum Sensor: Service and Repair

Manifold Absolute Pressure (MAP) Sensor Replacement

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery cable.

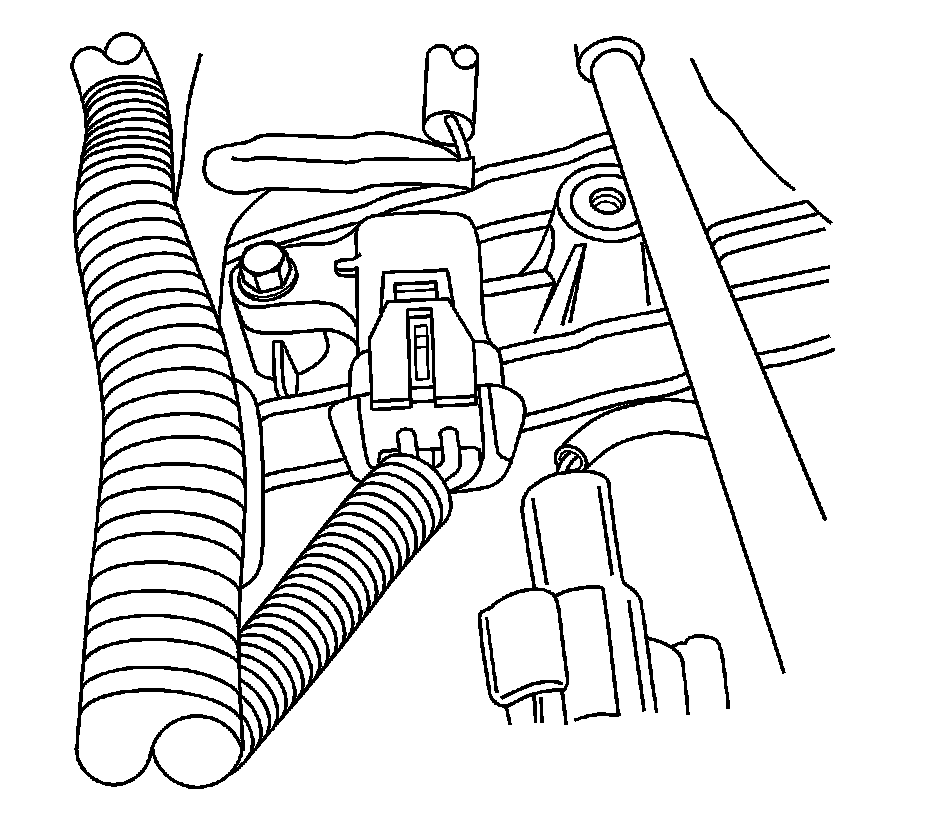

2. Disconnect the manifold absolute pressure (MAP) sensor connector.

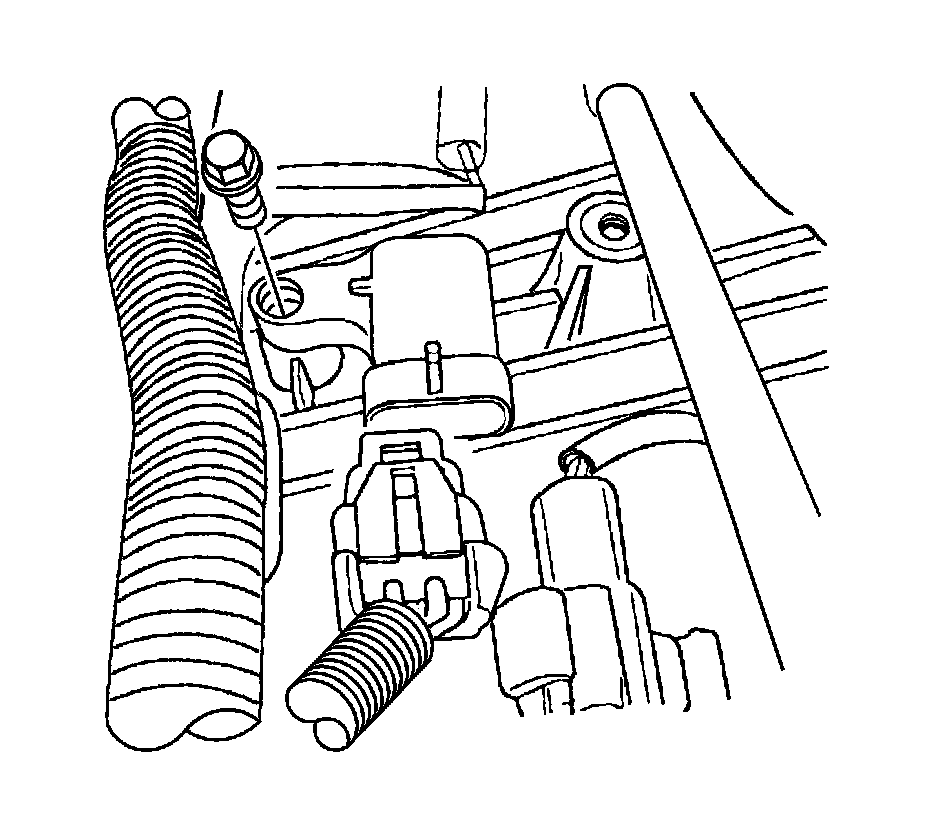

3. Remove the MAP sensor.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice in Cautions and Notices.

1. Install the MAP sensor.

Tighten the manifold absolute pressure (MAP) sensor to 8 Nm (71 lb in).

2. Connect the MAP sensor connector.
3. Connect the negative battery cable.
