Cabin Temperature Sensor / Switch: Service and Repair

Inside Air Temperature Sensor Replacement

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery cable.
2. Remove the instrument panel under cover. Refer to Trim Panel Replacement - Instrument Panel (I/P) Cluster Trim Panel Replacement - Instrument Panel (I/P) Cluster in Instrument Panel, Gages, and Console.

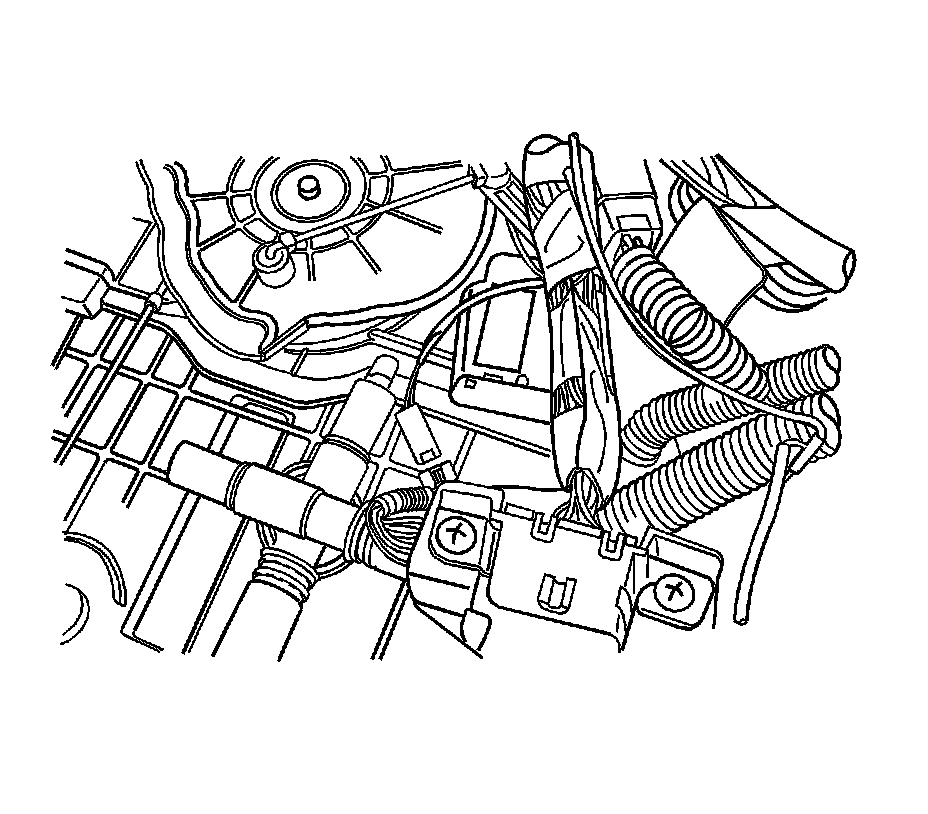

3. Remove the screws securing the in-car temperature sensor with the tube.

Installation Procedure




1. Install the in-car sensor.
2. Install the in-car sensor retaining screws and tighten.
3. Install the air inlet tube and connect the electrical connector.
4. Install the instrument panel under cover. Refer to Trim Panel Replacement - Instrument Panel (I/P) Cluster Trim Panel Replacement - Instrument Panel (I/P) Cluster in Instrument Panel, Gages, and Console.
5. Connect the battery negative cable.
