Ambient Air Temperature Sensor Replacement

Ambient Air Temperature Sensor Replacement

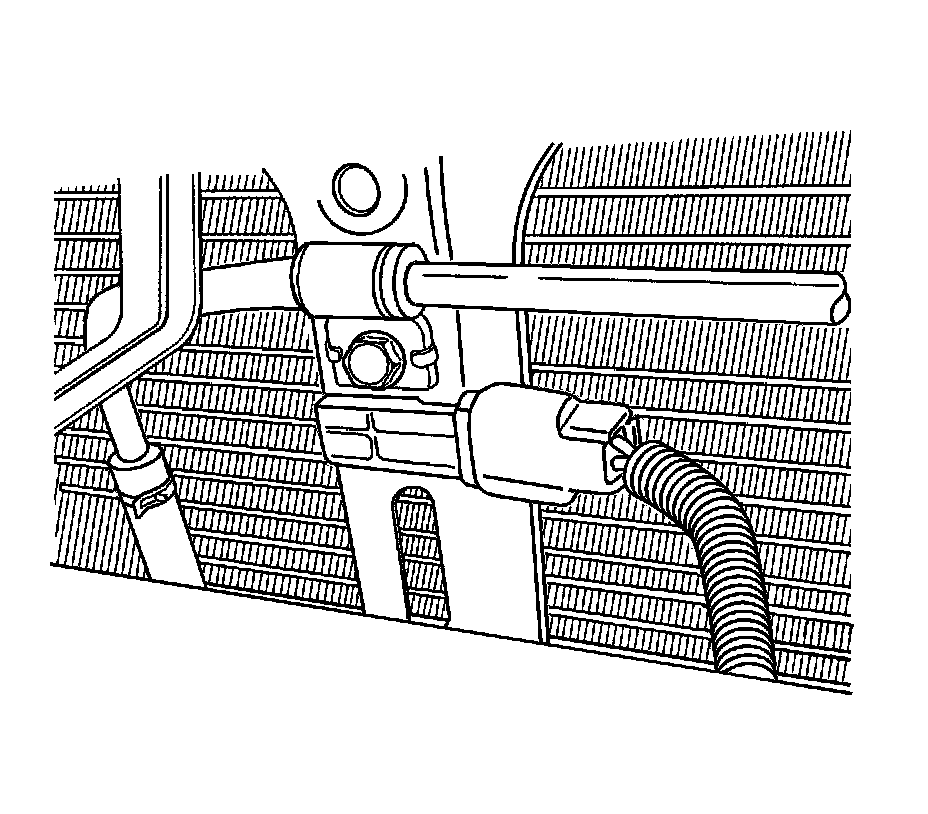

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery cable.
2. Disconnect the ambient air temperature sensor electrical connector.
3. Remove the retaining nut from the bracket.
4. Remove the ambient air temperature sensor.

Installation Procedure




1. Position the ambient air temperature sensor into its bracket.

Notice: Refer to Fastener Notice Fastener Notice in Cautions and Notices.

2. Install the retaining nut to the bracket.

Tighten the ambient air temperature retaining bracket nut to 6 Nm (53 lb in).

3. Connect the electrical connector.
4. Connect the negative battery cable.
