Wheel Speed Sensor Replacement - Front

Wheel Speed Sensor Replacement - Front

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.
2. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle Service and Repair.

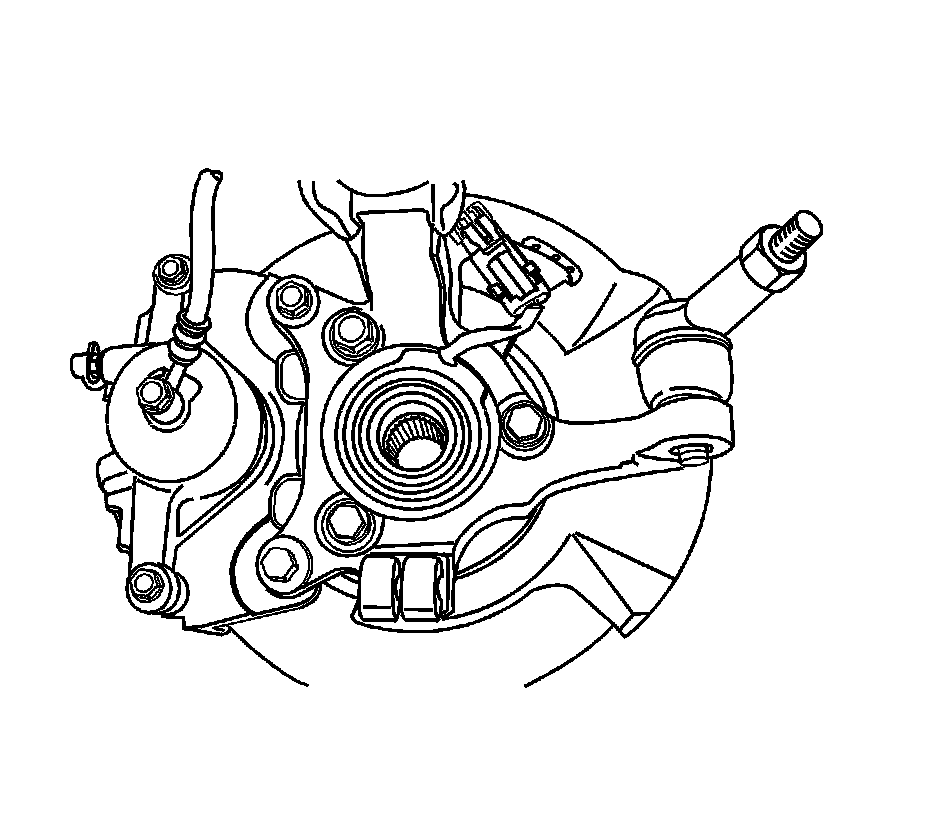

3. Disconnect the front wheel speed sensor electrical connector.
4. Remove the front hub unit from the steering knuckle assembly, because the wheel speed sensor is not serviceable separately. Refer to Steering Knuckle Replacement Service and Repair.

Installation Procedure





Important: The wheel speed sensor is served as an assembly, hub-wheel speed sensor. Therefore, the additional working procedure for air gap is not needed.


1. Install the front hub unit. Refer to Steering Knuckle Replacement Service and Repair.
2. Connect the front wheel speed sensor electrical connector.
3. Lower the vehicle.
4. Connect the negative battery cable.
