Home >> Chevrolet >> 2006 >> Corvette V8-7.0L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block >> Relay Block - I/P Wire Entry

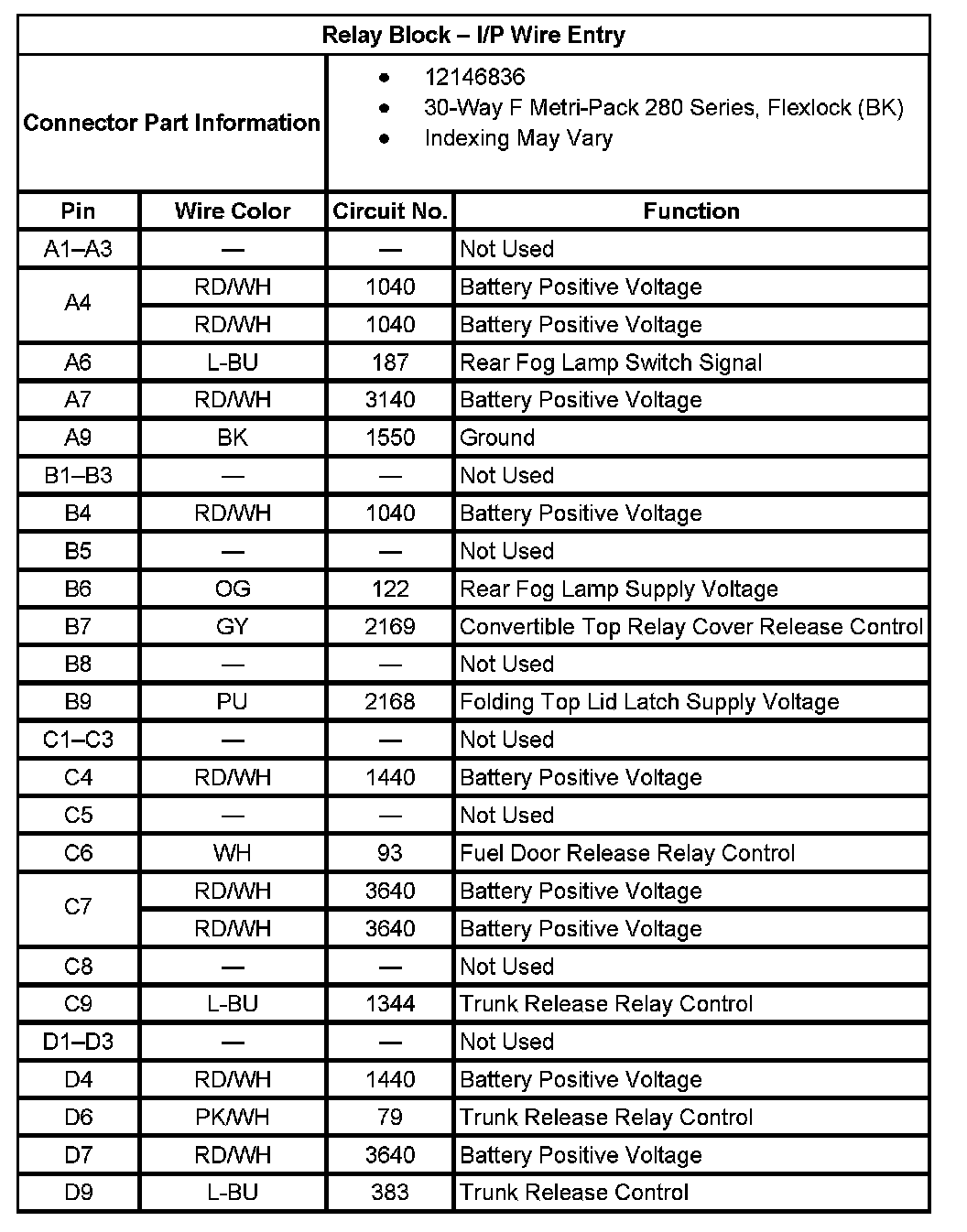

Relay Block - I/P Wire Entry

Relay Block - I/P Wire Entry:
