Variable Induction Position Sensor
Variable Induction Position Sensor

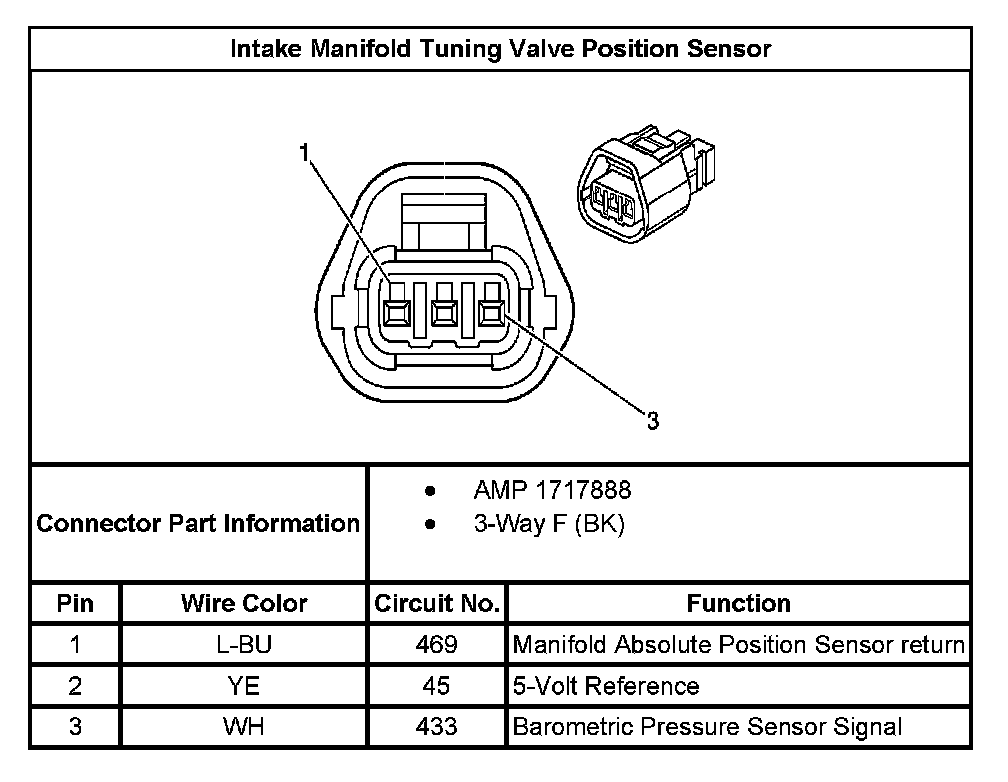

Intake Manifold Tuning Valve Position Sensor:
